45 DEGREE ADAPTORS

Product catalogue Adaptors 45 DEGREE ADAPTORS JIC MALE X NPTF MALE

JIC MALE X NPTF MALE

45 DEGREE ADAPTORS

JIC MALE X NPTF MALE

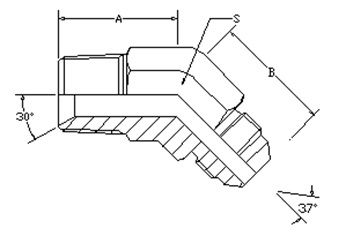

G-L-45

JIC MALE X NPTF MALE

JIC MALE X NPTF MALE 45° ELBOW

JIC MALE X NPTF MALE 45° ELBOW

Download PDF
PartNumber
JIC Male Thread (A)
NPTF Male Thread (B)
L1 (mm)
L2 (mm)
Hex A/F - CH1 (mm)
PN (bar)
G-L-45-0702
7/16-20
1/8-27
18.3
16.3
11.1
345
G-L-45-0704
7/16-20
1/4-18
20.8
21.8
14.3
275
G-L-45-0904
9/16-18
1/4-18
21.1
21.8
14.3
275
G-L-45-0906
9/16-18
3/8-18
22.1
24.1
19.1
210
G-L-45-1204
3/4-16
1/4-18
24.9
24.1
19.1
275
G-L-45-1206
3/4-16
3/8-18
24.9
24.1
19.1
210
G-L-45-1208
3/4-16
1/2-14
25.1
29.7
22.2
210
G-L-45-1212
3/4-16
3/4-14
25.1
32.8
26.7
170
G-L-45-1406
7/8-14
3/8-18
25.1
29
21.6
210
G-L-45-1408
7/8-14
1/2-14
28.2
29.7
22.2
210
G-L-45-1412
7/8-14
3/4-14
29.5
30.5
27
170
G-L-45-1708
1.1/16-12
1/2-14
32.5
30.5
27
210
G-L-45-1712
1.1/16-12
3/4-14
32.5
30.5
27
170
G-L-45-1716
1.1/16-12
1-11.1/2
30.1
37.6
33.3
140
G-L-45-2112
1.5/16-12
3/4-14
37.3
37.6
33.3
170
G-L-45-2116
1.5/16-12
1-11.1/2
37.3
37.6
33.3
140
G-L-45-2620
1.5/8-12
1.1/4-11.1/2
40.4
42.4
41.3
80
G-L-45-3024
1.7/8-12
1.1/2-11.1/2
45.2
45
47.6
70
G-L-45-4032
2.1/2-12
2-11.1/2
56.4
53.6
63.5
70
