90 DEGREE ADAPTORS

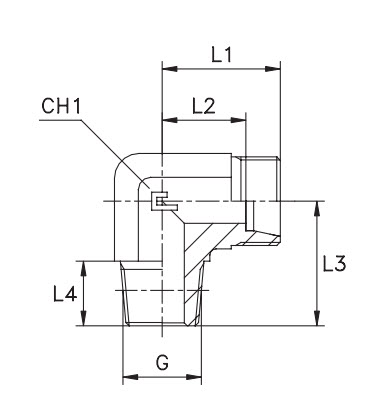

Product catalogue Adaptors 90 DEGREE ADAPTORS BSPT MALE X MET LIGHT MALE

BSPT MALE X MET LIGHT MALE

90 DEGREE ADAPTORS

BSPT MALE X MET LIGHT MALE

90 DEGREE ADAPTORS

BSPT MALE X MET LIGHT MALE

BSPT MALE X METRIC 24° CONE LIGHT MALE 90° ELBOW

Download PDF
PartNumber
BSPT Male Thread (G)
Metric Male Thread
Suits Tube Diameter (mm)
L1 (mm)
L2 (mm) - mm
L3 (mm) - mm
L4 (mm) - mm
CH1 (mm)
PN (bar)
A-MLL-90-0208
1/8-28
M8-1.0
4
15
11
17
9
12
100
A-ML-90-0212
1/8-28
M12-1.5
6
19
12
20
8
12
315
A-ML-90-0214
1/8-28
M14-1.5
8
21
14
22
8
12
315
A-ML-90-0216
1/8-28
M16-1.5
10
22
15
22
8
14
315
A-ML-90-0412
1/4-19
M12-1.5
6
21
14
26
12
12
315
A-ML-90-0414
1/4-19
M14-1.5
8
21
14
26
12
12
315
A-ML-90-0416
1/4-19
M16-1.5
10
22
15
27
12
14
315
A-ML-90-0418
1/4-19
M18-1.5
12
24
17
28
12
17
315
A-ML-90-0614
3/8-19
M14-1.5
8
23
16
28
12
17
315
A-ML-90-0616
3/8-19
M16-1.5
10
24
17
28
12
17
315
A-ML-90-0618
3/8-19
M18-1.5
12
24
17
28
12
17
315
A-ML-90-0622
3/8-19
M22-1.5
15
28
31
30
12
19
315
A-ML-90-0816
1/2-14
M16-1.5
10
27
20
34
14
19
315
A-ML-90-0818
1/2-14
M18-1.5
12
27
20
34
14
19
315
A-ML-90-0822
1/2-14
M22-1.5
15
28
21
34
14
19
315
A-ML-90-0826
1/2-14
M26-1.5
18
31
24
36
14
24
315
A-ML-90-1230
3/4-14
M30-2
22
35
28
42
16
27
160
A-ML-90-1636
1-11
M36-2
28
38
30.5
48
18
36
160
A-ML-90-2045
1.1/4-11
M45-2
35
45
34.5
54
20
41
160

Product Data

A-MLL-90-0208

BSPT Male Thread (G)

1/8-28

Metric Male Thread

M8-1.0

Suits Tube Diameter (mm)

4

L1 (mm)

15

L2 (mm) - mm

11

L3 (mm) - mm

17

L4 (mm) - mm

9

CH1 (mm)

12

PN (bar)

100

A-ML-90-0212

BSPT Male Thread (G)

1/8-28

Metric Male Thread

M12-1.5

Suits Tube Diameter (mm)

6

L1 (mm)

19

L2 (mm) - mm

12

L3 (mm) - mm

20

L4 (mm) - mm

8

CH1 (mm)

12

PN (bar)

315

A-ML-90-0214

BSPT Male Thread (G)

1/8-28

Metric Male Thread

M14-1.5

Suits Tube Diameter (mm)

8

L1 (mm)

21

L2 (mm) - mm

14

L3 (mm) - mm

22

L4 (mm) - mm

8

CH1 (mm)

12

PN (bar)

315

A-ML-90-0216

BSPT Male Thread (G)

1/8-28

Metric Male Thread

M16-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

22

L2 (mm) - mm

15

L3 (mm) - mm

22

L4 (mm) - mm

8

CH1 (mm)

14

PN (bar)

315

A-ML-90-0412

BSPT Male Thread (G)

1/4-19

Metric Male Thread

M12-1.5

Suits Tube Diameter (mm)

6

L1 (mm)

21

L2 (mm) - mm

14

L3 (mm) - mm

26

L4 (mm) - mm

12

CH1 (mm)

12

PN (bar)

315

A-ML-90-0414

BSPT Male Thread (G)

1/4-19

Metric Male Thread

M14-1.5

Suits Tube Diameter (mm)

8

L1 (mm)

21

L2 (mm) - mm

14

L3 (mm) - mm

26

L4 (mm) - mm

12

CH1 (mm)

12

PN (bar)

315

A-ML-90-0416

BSPT Male Thread (G)

1/4-19

Metric Male Thread

M16-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

22

L2 (mm) - mm

15

L3 (mm) - mm

27

L4 (mm) - mm

12

CH1 (mm)

14

PN (bar)

315

A-ML-90-0418

BSPT Male Thread (G)

1/4-19

Metric Male Thread

M18-1.5

Suits Tube Diameter (mm)

12

L1 (mm)

24

L2 (mm) - mm

17

L3 (mm) - mm

28

L4 (mm) - mm

12

CH1 (mm)

17

PN (bar)

315

A-ML-90-0614

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M14-1.5

Suits Tube Diameter (mm)

8

L1 (mm)

23

L2 (mm) - mm

16

L3 (mm) - mm

28

L4 (mm) - mm

12

CH1 (mm)

17

PN (bar)

315

A-ML-90-0616

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M16-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

24

L2 (mm) - mm

17

L3 (mm) - mm

28

L4 (mm) - mm

12

CH1 (mm)

17

PN (bar)

315

A-ML-90-0618

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M18-1.5

Suits Tube Diameter (mm)

12

L1 (mm)

24

L2 (mm) - mm

17

L3 (mm) - mm

28

L4 (mm) - mm

12

CH1 (mm)

17

PN (bar)

315

A-ML-90-0622

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M22-1.5

Suits Tube Diameter (mm)

15

L1 (mm)

28

L2 (mm) - mm

31

L3 (mm) - mm

30

L4 (mm) - mm

12

CH1 (mm)

19

PN (bar)

315

A-ML-90-0816

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M16-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

27

L2 (mm) - mm

20

L3 (mm) - mm

34

L4 (mm) - mm

14

CH1 (mm)

19

PN (bar)

315

A-ML-90-0818

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M18-1.5

Suits Tube Diameter (mm)

12

L1 (mm)

27

L2 (mm) - mm

20

L3 (mm) - mm

34

L4 (mm) - mm

14

CH1 (mm)

19

PN (bar)

315

A-ML-90-0822

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M22-1.5

Suits Tube Diameter (mm)

15

L1 (mm)

28

L2 (mm) - mm

21

L3 (mm) - mm

34

L4 (mm) - mm

14

CH1 (mm)

19

PN (bar)

315

A-ML-90-0826

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M26-1.5

Suits Tube Diameter (mm)

18

L1 (mm)

31

L2 (mm) - mm

24

L3 (mm) - mm

36

L4 (mm) - mm

14

CH1 (mm)

24

PN (bar)

315

A-ML-90-1230

BSPT Male Thread (G)

3/4-14

Metric Male Thread

M30-2

Suits Tube Diameter (mm)

22

L1 (mm)

35

L2 (mm) - mm

28

L3 (mm) - mm

42

L4 (mm) - mm

16

CH1 (mm)

27

PN (bar)

160

A-ML-90-1636

BSPT Male Thread (G)

1-11

Metric Male Thread

M36-2

Suits Tube Diameter (mm)

28

L1 (mm)

38

L2 (mm) - mm

30.5

L3 (mm) - mm

48

L4 (mm) - mm

18

CH1 (mm)

36

PN (bar)

160

A-ML-90-2045

BSPT Male Thread (G)

1.1/4-11

Metric Male Thread

M45-2

Suits Tube Diameter (mm)

35

L1 (mm)

45

L2 (mm) - mm

34.5

L3 (mm) - mm

54

L4 (mm) - mm

20

CH1 (mm)

41

PN (bar)

160
