Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
- Product Catalogue
- Safety Data Sheets
90 DEGREE ADAPTORS
MALE JIC X EXTENDED JIC FEM. 90°
90 DEGREE ADAPTORS
MALE JIC X EXTENDED JIC FEM. 90°
90 DEGREE ADAPTORS
MALE JIC X EXTENDED JIC FEM. 90°

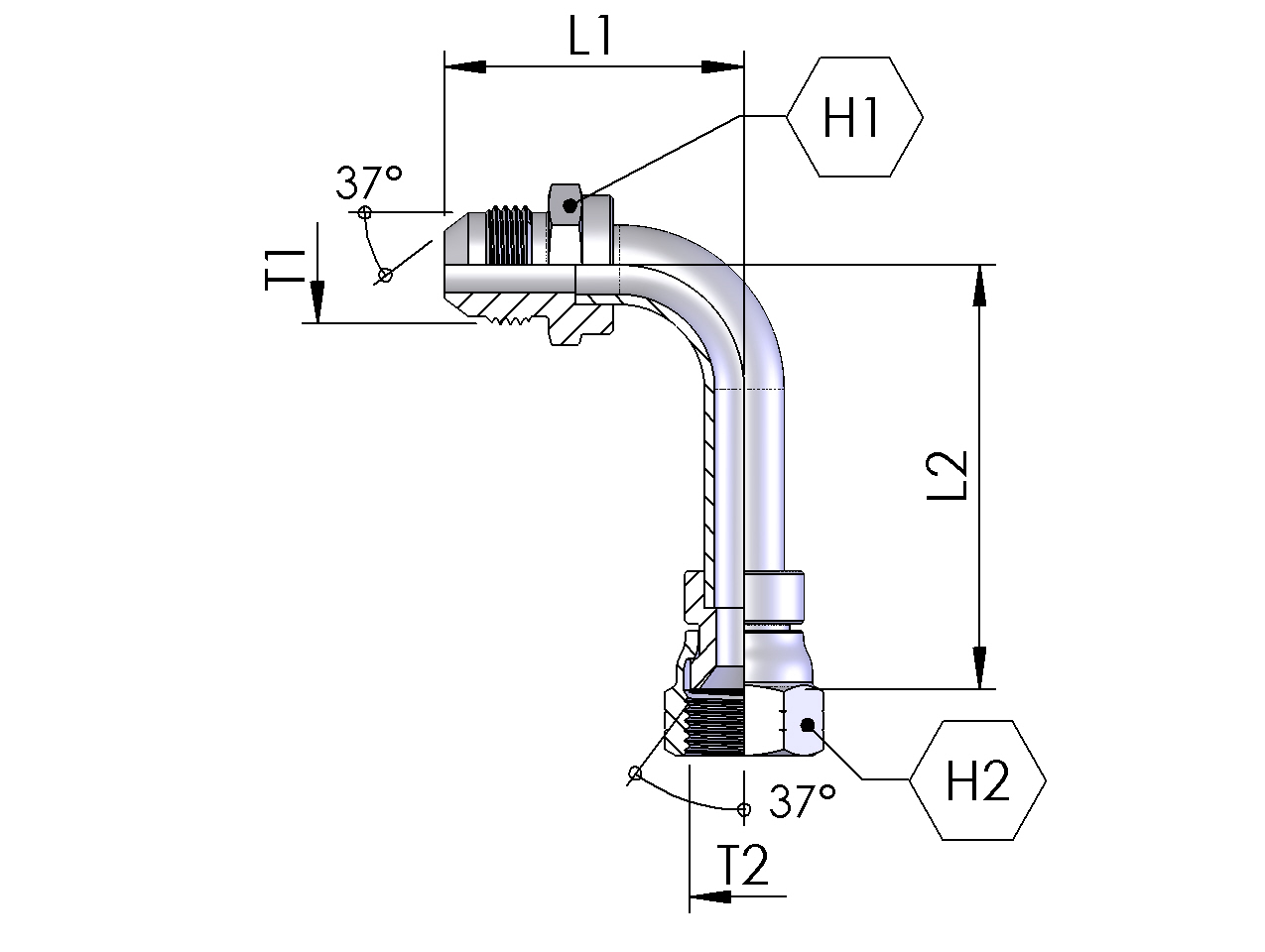

JIC MALE X JIC FEMALE SWIVEL NUT 90° SWEPT
Product Data
G-J-90S-0707X1
T1
7/16-20
T2
7/16-20
L1 (mm)
30.5
L2 (mm)
45.7
H1 (mm)
12.7
H2 (mm)
14.3
PN (bar)
350
G-J-90S-0909X1
T1
9/16-18
T2
9/16-18
L1 (mm)
38.1
L2 (mm)
55.4
H1 (mm)
15.9
H2 (mm)
17.5
PN (bar)
350
G-J-90S-1212X1
T1
3/4-16
T2
3/4-16
L1 (mm)
45.7
L2 (mm)
62
H1 (mm)
20.6
H2 (mm)
22.2
PN (bar)
310
G-J-90S-1414X1
T1
7/8-14
T2
7/8-14
L1 (mm)
50.8
L2 (mm)
65.5
H1 (mm)
23.8
H2 (mm)
25.4
PN (bar)
240
G-J-90S-1717X1
T1
1.1/16-12
T2
1.1/16-12
L1 (mm)
63.5
L2 (mm)
94.7
H1 (mm)
28.6
H2 (mm)
31.8
PN (bar)
240
G-J-90S-2121X1
T1
1.5/16-12
T2
1.5/16-12
L1 (mm)
71.1
L2 (mm)
110
H1 (mm)
34.9
H2 (mm)
38.1
PN (bar)
210
G-J-90S-2626X1
T1
1.5/8-12
T2
1.5/8-12
L1 (mm)
82.8
L2 (mm)
127
H1 (mm)
42.9
H2 (mm)
50.8
PN (bar)
170
G-J-90S-3030X1
T1
1.7/8-12
T2
1.7/8-12
L1 (mm)
135
L2 (mm)
127
H1 (mm)
50
H2 (mm)
57
PN (bar)
140
G-J-90S-4040X1
T1
2.1/2-12
T2
2.1/2-12
L1 (mm)
135
L2 (mm)
127
H1 (mm)
70
H2 (mm)
70
PN (bar)
105
