STRAIGHT ADAPTORS

Product catalogue Adaptors STRAIGHT ADAPTORS BSPT MALE X MET HEAVY MALE

BSPT MALE X MET HEAVY MALE

STRAIGHT ADAPTORS

BSPT MALE X MET HEAVY MALE

STRAIGHT ADAPTORS

BSPT MALE X MET HEAVY MALE

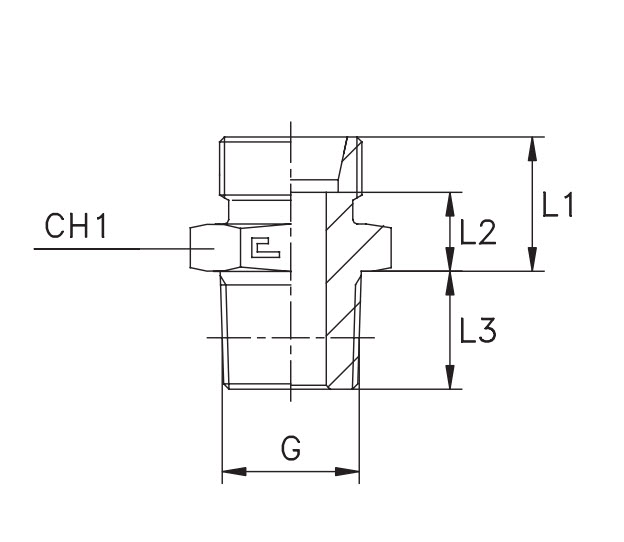

BSPT MALE X METRIC 24° CONE HEAVY MALE STRAIGHT

Download PDF
PartNumber
BSPT Male Thread (G)
Metric Male Thread
Suits Tube Diameter (mm)
L1 (mm)
L2 (mm)
L3 (mm)
CH1 (mm)
PN (bar)
A-MS-0414
1/4-19
M14-1.5
6
18
11
12
17
630
A-MS-0416
1/4-19
M16-1.5
8
20
13
12
17
630
A-MS-0418
1/4-19
M18-1.5
10
630
A-MS-0618
3/8-19
M18-1.5
10
20
13
12
19
630
A-MS-0620
3/8-19
M20-1.5
12
22
15
12
22
630
A-MS-0622
3/8-19
M22-1.5
14
24
16
12
24
630
A-MS-0624
3/8-19
M24-1.5
16
24
16
12
27
630
A-MS-0816
1/2-14
M16-1.5
8
20
13
17
22
630
A-MS-0818
1/2-14
M18-1.5
10
20
13
18
22
630
A-MS-0820
1/2-14
M20-1.5
12
22
15
14
22
630
A-MS-0822
1/2-14
M22-1.5
14
24
16
14
24
630
A-MS-0824
1/2-14
M24-1.5
16
24
16
14
27
400
A-MS-0830
1/2-14
M30-2
20
28
18
14
32
400
A-MS-1224
3/4-14
M24-1.5
16
400
A-MS-1230
3/4-14
M30-2
20
28
18
16
32
400
A-MS-1236
3/4-14
M36-2
25
32
20
16
41
400
A-MS-1636
1-11
M36-2
25
32
20
18
41
400
A-MS-1642
1-11
M42-2
30
34
20.5
18
46
400
A-MS-2042
1.1/4-11
M42-2
30
34
20.5
20
46
400

Product Data

A-MS-0414

BSPT Male Thread (G)

1/4-19

Metric Male Thread

M14-1.5

Suits Tube Diameter (mm)

6

L1 (mm)

18

L2 (mm)

11

L3 (mm)

12

CH1 (mm)

17

PN (bar)

630

A-MS-0416

BSPT Male Thread (G)

1/4-19

Metric Male Thread

M16-1.5

Suits Tube Diameter (mm)

8

L1 (mm)

20

L2 (mm)

13

L3 (mm)

12

CH1 (mm)

17

PN (bar)

630

A-MS-0418

BSPT Male Thread (G)

1/4-19

Metric Male Thread

M18-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

L2 (mm)

L3 (mm)

CH1 (mm)

PN (bar)

630

A-MS-0618

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M18-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

20

L2 (mm)

13

L3 (mm)

12

CH1 (mm)

19

PN (bar)

630

A-MS-0620

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M20-1.5

Suits Tube Diameter (mm)

12

L1 (mm)

22

L2 (mm)

15

L3 (mm)

12

CH1 (mm)

22

PN (bar)

630

A-MS-0622

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M22-1.5

Suits Tube Diameter (mm)

14

L1 (mm)

24

L2 (mm)

16

L3 (mm)

12

CH1 (mm)

24

PN (bar)

630

A-MS-0624

BSPT Male Thread (G)

3/8-19

Metric Male Thread

M24-1.5

Suits Tube Diameter (mm)

16

L1 (mm)

24

L2 (mm)

16

L3 (mm)

12

CH1 (mm)

27

PN (bar)

630

A-MS-0816

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M16-1.5

Suits Tube Diameter (mm)

8

L1 (mm)

20

L2 (mm)

13

L3 (mm)

17

CH1 (mm)

22

PN (bar)

630

A-MS-0818

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M18-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

20

L2 (mm)

13

L3 (mm)

18

CH1 (mm)

22

PN (bar)

630

A-MS-0820

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M20-1.5

Suits Tube Diameter (mm)

12

L1 (mm)

22

L2 (mm)

15

L3 (mm)

14

CH1 (mm)

22

PN (bar)

630

A-MS-0822

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M22-1.5

Suits Tube Diameter (mm)

14

L1 (mm)

24

L2 (mm)

16

L3 (mm)

14

CH1 (mm)

24

PN (bar)

630

A-MS-0824

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M24-1.5

Suits Tube Diameter (mm)

16

L1 (mm)

24

L2 (mm)

16

L3 (mm)

14

CH1 (mm)

27

PN (bar)

400

A-MS-0830

BSPT Male Thread (G)

1/2-14

Metric Male Thread

M30-2

Suits Tube Diameter (mm)

20

L1 (mm)

28

L2 (mm)

18

L3 (mm)

14

CH1 (mm)

32

PN (bar)

400

A-MS-1224

BSPT Male Thread (G)

3/4-14

Metric Male Thread

M24-1.5

Suits Tube Diameter (mm)

16

L1 (mm)

L2 (mm)

L3 (mm)

CH1 (mm)

PN (bar)

400

A-MS-1230

BSPT Male Thread (G)

3/4-14

Metric Male Thread

M30-2

Suits Tube Diameter (mm)

20

L1 (mm)

28

L2 (mm)

18

L3 (mm)

16

CH1 (mm)

32

PN (bar)

400

A-MS-1236

BSPT Male Thread (G)

3/4-14

Metric Male Thread

M36-2

Suits Tube Diameter (mm)

25

L1 (mm)

32

L2 (mm)

20

L3 (mm)

16

CH1 (mm)

41

PN (bar)

400

A-MS-1636

BSPT Male Thread (G)

1-11

Metric Male Thread

M36-2

Suits Tube Diameter (mm)

25

L1 (mm)

32

L2 (mm)

20

L3 (mm)

18

CH1 (mm)

41

PN (bar)

400

A-MS-1642

BSPT Male Thread (G)

1-11

Metric Male Thread

M42-2

Suits Tube Diameter (mm)

30

L1 (mm)

34

L2 (mm)

20.5

L3 (mm)

18

CH1 (mm)

46

PN (bar)

400

A-MS-2042

BSPT Male Thread (G)

1.1/4-11

Metric Male Thread

M42-2

Suits Tube Diameter (mm)

30

L1 (mm)

34

L2 (mm)

20.5

L3 (mm)

20

CH1 (mm)

46

PN (bar)

400
