Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

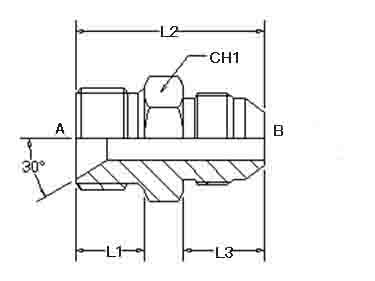

STRAIGHT ADAPTORS
MALE BSPP X JIS METRIC MALE
STRAIGHT ADAPTORS
MALE BSPP X JIS METRIC MALE
Product Data
B-MY-0414
BSPP Male Thread (A)
1/4-19
Metric Male Thread (B)
M14-1.5
L1 (mm)
12
Overall Length - L2 (mm)
33.5
L3 (mm)
15.5
Hex A/F - CH2 (mm)
19
PN (bar)
345
B-MY-0618
BSPP Male Thread (A)
3/8-19
Metric Male Thread (B)
M18-1.5
L1 (mm)
13.5
Overall Length - L2 (mm)
39.5
L3 (mm)
18
Hex A/F - CH2 (mm)
22
PN (bar)
345
B-MY-0622
BSPP Male Thread (A)
3/8-19
Metric Male Thread (B)
M22-1.5
L1 (mm)
13.5
Overall Length - L2 (mm)
41.5
L3 (mm)
20
Hex A/F - CH2 (mm)
24
PN (bar)
345
B-MY-0822
BSPP Male Thread (A)
1/2-14
Metric Male Thread (B)
M22-1.5
L1 (mm)
16
Overall Length - L2 (mm)
46
L3 (mm)
20
Hex A/F - CH2 (mm)
27
PN (bar)
345
B-MY-0824
BSPP Male Thread (A)
1/2-14
Metric Male Thread (B)
M24-1.5
L1 (mm)
16
Overall Length - L2 (mm)
48
L3 (mm)
22
Hex A/F - CH2 (mm)
27
PN (bar)
275
B-MY-1230
BSPP Male Thread (A)
3/4-14
Metric Male Thread (B)
M30-2
L1 (mm)
18.5
Overall Length - L2 (mm)
52.5
L3 (mm)
23
Hex A/F - CH2 (mm)
32
PN (bar)
200
B-MY-1633
BSPP Male Thread (A)
1-11
Metric Male Thread (B)
M33-2
L1 (mm)
20.5
Overall Length - L2 (mm)
60.5
L3 (mm)
27
Hex A/F - CH2 (mm)
41
PN (bar)
200
