STRAIGHT ADAPTORS
BSP FEMALE X MET LIGHT MALE
STRAIGHT ADAPTORS
BSP FEMALE X MET LIGHT MALE
STRAIGHT ADAPTORS
BSP FEMALE X MET LIGHT MALE

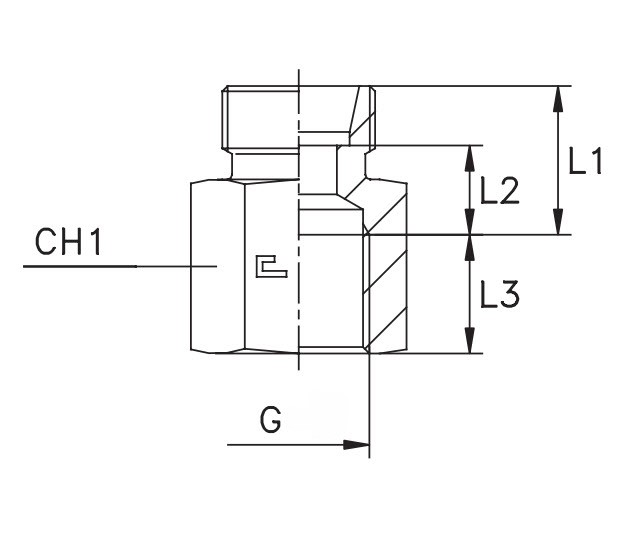

BSP SOLID FEMALE X METRIC 24° CONE LIGHT MALE STRAIGHT
Product Data
F-ML-0212
BSPP Male Thread - G
1/8-28
Metric Male Thread
M12-1.5
Suits Tube Diameter (mm)
6
L1 (mm)
16
L2 (mm) - mm
9
L3 (mm) - mm
10
CH1 (mm)
14
PN (bar)
315
F-ML-0414
BSPP Male Thread - G
1/4-19
Metric Male Thread
M14-1.5
Suits Tube Diameter (mm)
8
L1 (mm)
17
L2 (mm) - mm
10
L3 (mm) - mm
14
CH1 (mm)
19
PN (bar)
315
F-ML-0416
BSPP Male Thread - G
1/4-19
Metric Male Thread
M16-1.5
Suits Tube Diameter (mm)
10
L1 (mm)
18
L2 (mm) - mm
11
L3 (mm) - mm
14
CH1 (mm)
19
PN (bar)
315
F-ML-0418
BSPP Male Thread - G
1/4-19
Metric Male Thread
M18-1.5
Suits Tube Diameter (mm)
12
L1 (mm)
18
L2 (mm) - mm
12
L3 (mm) - mm
14
CH1 (mm)
19
PN (bar)
315
F-ML-0618
BSPP Male Thread - G
3/8-19
Metric Male Thread
M18-1.5
Suits Tube Diameter (mm)
12
L1 (mm)
19
L2 (mm) - mm
12
L3 (mm) - mm
14
CH1 (mm)
24
PN (bar)
315
F-ML-0822
BSPP Male Thread - G
1/2-14
Metric Male Thread
M22-1.5
Suits Tube Diameter (mm)
15
L1 (mm)
21
L2 (mm) - mm
14
L3 (mm) - mm
17
CH1 (mm)
27
PN (bar)
315
F-ML-0826
BSPP Male Thread - G
1/2-14
Metric Male Thread
M26-1.5
Suits Tube Diameter (mm)
18
L1 (mm)
21
L2 (mm) - mm
13.5
L3 (mm) - mm
17
CH1 (mm)
27
PN (bar)
315
F-ML-1230
BSPP Male Thread - G
3/4-14
Metric Male Thread
M30-2
Suits Tube Diameter (mm)
22
L1 (mm)
24
L2 (mm) - mm
16
L3 (mm) - mm
19
CH1 (mm)
36
PN (bar)
160
F-ML-1636
BSPP Male Thread - G
1-11
Metric Male Thread
M36-2
Suits Tube Diameter (mm)
28
L1 (mm)
23.5
L2 (mm) - mm
16
L3 (mm) - mm
21.5
CH1 (mm)
41
PN (bar)
160
F-ML-2045
BSPP Male Thread - G
1.1/4-11
Metric Male Thread
M45-2
Suits Tube Diameter (mm)
35
L1 (mm)
28.5
L2 (mm) - mm
18
L3 (mm) - mm
23.5
CH1 (mm)
55
PN (bar)
160
F-ML-2452
BSPP Male Thread - G
1.1/2-11
Metric Male Thread
M52-2
Suits Tube Diameter (mm)
42
L1 (mm)
28.5
L2 (mm) - mm
17.5
L3 (mm) - mm
25.5
CH1 (mm)
60
PN (bar)
160
