STRAIGHT ADAPTORS

Product catalogue Adaptors STRAIGHT ADAPTORS JIC MALE X UNO MALE

JIC MALE X UNO MALE

STRAIGHT ADAPTORS

JIC MALE X UNO MALE

G-N

JIC MALE X UNO MALE

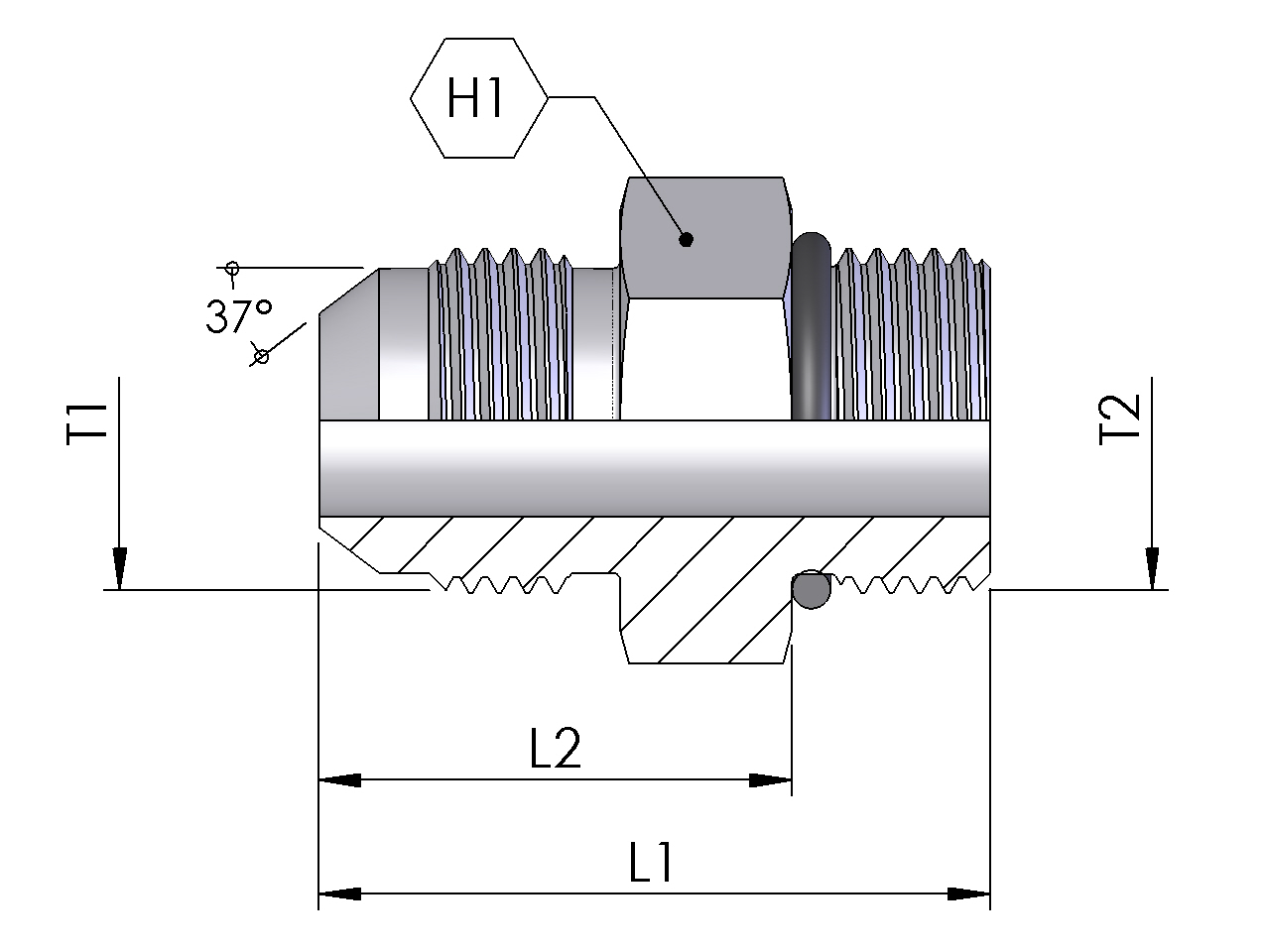

JIC MALE X UNO FIXED STUD STRAIGHT

  • ISO 8434-2

JIC MALE X UNO FIXED STUD STRAIGHT

Download PDF
PartNumber
T1
T2
H1 (mm)
L1 (mm)
L2 (mm)
PN (bar)
G-N-0707
7/16-20
7/16-20
14
31
22
350
G-N-0707-1MM
7/16-20
7/16-20
31.2
14
9.1
350
G-N-0709
7/16-20
9/16-18
17
33
23
350
G-N-0712
7/16-20
3/4-16
22
35
14
350
G-N-0714
7/16-20
7/8-14
37.8
14
12.7
350
G-N-0717
7/16-20
1.1/16-12
42.2
14
15.1
350
G-N-0807
1/2-20
7/16-20
14
33
14
350
G-N-0808
1/2-20
1/2-20
16
33
14
350
G-N-0809
1/2-20
9/16-18
18
33
14
350
G-N-0812
1/2-20
3/4-16
22
33
14
350
G-N-0907
9/16-18
7/16-20
16
32
14
350
G-N-0908
9/16-18
1/2-20
16
32
14
350
G-N-0909
9/16-18
9/16-18
17
33
23
350
G-N-0912
9/16-18
3/4-16
22
35
24
350
G-N-0912-1MM
9/16-18
3/4-16
35.1
14.2
11.1
350
G-N-0914
9/16-18
7/8-14
25
38
14
350
G-N-0914-1MM
9/16-18
7/8-14
38.1
14.2
12.7
350
G-N-0917
9/16-18
1.1/16-12
32
42
14
350
G-N-1207
3/4-14
7/16-20
37.8
16.7
9.1
310
G-N-1209
3/4-14
9/16-18
21
37
17
310
G-N-1212
3/4-16
3/4-16
22
38
27
310
G-N-1212-1.5MM
3/4-14
3/4-16
37.6
16.7
11.1
310
G-N-1214
3/4-16
7/8-14
27
41
28
310
G-N-1217
3/4-14
1.1/16-12
32
45
17
310
G-N-1221
3/4-14
1.5/16-12
38
45
17
310
G-N-1409
7/8-14
9/16-18
25
42
19
240
G-N-1412
7/8-14
3/4-16
24
42
19
240
G-N-1414
7/8-14
7/8-14
27
43
30
240
G-N-1417
7/8-14
1.1/16-12
32
47
19
240
G-N-1421
7/8-14
1.5/16-12
38
48
19
240
G-N-1712
1.1/16-12
3/4-16
29
49
22
240
G-N-1714
1.1/16-12
7/8-14
29
48
22
240
G-N-1717
1.1/16-12
1.1/16-12
32
50
35
240
G-N-1719
1.1/16-12
1.3/16-12
35
50
35
240
G-N-1721
1.1/16-12
1.5/16-12
38
51
22
240
G-N-1726
1.1/16-12
1.5/8-12
48
53
22
240
G-N-2112
1.5/16-12
3/4-16
52
23
11.1
210
G-N-2114
1.5/16-12
7/8-14
52
23
12.7
210
G-N-2117
1.5/16-12
1.1/16-12
35
52
23
210
G-N-2121
1.5/16-12
1.5/16-12
38
52
23
210
G-N-2126
1.5/16-12
1.5/8-12
48
54
23
210
G-N-2130
1.5/16-12
1.7/8-12
55.9
23
15.1
210
G-N-2617
1.5/8-12
1.1/16-12
58.4
24
15.1
170
G-N-2621
1.5/8-12
1.5/16-12
43
59
24
170
G-N-2626
1.5/8-12
1.5/8-12
48
55
24
170
G-N-2630
1.5/8-12
1.7/8-12
54
57
24
170
G-N-3026
1.7/8-12
1.5/8-12
51
64
28
140
G-N-3030
1.7/8-12
1.7/8-12
54
64
24
140

Product Data

G-N-0707

T1

7/16-20

T2

7/16-20

H1 (mm)

14

L1 (mm)

31

L2 (mm)

22

PN (bar)

350

G-N-0707-1MM

T1

7/16-20

T2

7/16-20

H1 (mm)

31.2

L1 (mm)

14

L2 (mm)

9.1

PN (bar)

350

G-N-0709

T1

7/16-20

T2

9/16-18

H1 (mm)

17

L1 (mm)

33

L2 (mm)

23

PN (bar)

350

G-N-0712

T1

7/16-20

T2

3/4-16

H1 (mm)

22

L1 (mm)

35

L2 (mm)

14

PN (bar)

350

G-N-0714

T1

7/16-20

T2

7/8-14

H1 (mm)

37.8

L1 (mm)

14

L2 (mm)

12.7

PN (bar)

350

G-N-0717

T1

7/16-20

T2

1.1/16-12

H1 (mm)

42.2

L1 (mm)

14

L2 (mm)

15.1

PN (bar)

350

G-N-0807

T1

1/2-20

T2

7/16-20

H1 (mm)

14

L1 (mm)

33

L2 (mm)

14

PN (bar)

350

G-N-0808

T1

1/2-20

T2

1/2-20

H1 (mm)

16

L1 (mm)

33

L2 (mm)

14

PN (bar)

350

G-N-0809

T1

1/2-20

T2

9/16-18

H1 (mm)

18

L1 (mm)

33

L2 (mm)

14

PN (bar)

350

G-N-0812

T1

1/2-20

T2

3/4-16

H1 (mm)

22

L1 (mm)

33

L2 (mm)

14

PN (bar)

350

G-N-0907

T1

9/16-18

T2

7/16-20

H1 (mm)

16

L1 (mm)

32

L2 (mm)

14

PN (bar)

350

G-N-0908

T1

9/16-18

T2

1/2-20

H1 (mm)

16

L1 (mm)

32

L2 (mm)

14

PN (bar)

350

G-N-0909

T1

9/16-18

T2

9/16-18

H1 (mm)

17

L1 (mm)

33

L2 (mm)

23

PN (bar)

350

G-N-0912

T1

9/16-18

T2

3/4-16

H1 (mm)

22

L1 (mm)

35

L2 (mm)

24

PN (bar)

350

G-N-0912-1MM

T1

9/16-18

T2

3/4-16

H1 (mm)

35.1

L1 (mm)

14.2

L2 (mm)

11.1

PN (bar)

350

G-N-0914

T1

9/16-18

T2

7/8-14

H1 (mm)

25

L1 (mm)

38

L2 (mm)

14

PN (bar)

350

G-N-0914-1MM

T1

9/16-18

T2

7/8-14

H1 (mm)

38.1

L1 (mm)

14.2

L2 (mm)

12.7

PN (bar)

350

G-N-0917

T1

9/16-18

T2

1.1/16-12

H1 (mm)

32

L1 (mm)

42

L2 (mm)

14

PN (bar)

350

G-N-1207

T1

3/4-14

T2

7/16-20

H1 (mm)

37.8

L1 (mm)

16.7

L2 (mm)

9.1

PN (bar)

310

G-N-1209

T1

3/4-14

T2

9/16-18

H1 (mm)

21

L1 (mm)

37

L2 (mm)

17

PN (bar)

310

G-N-1212

T1

3/4-16

T2

3/4-16

H1 (mm)

22

L1 (mm)

38

L2 (mm)

27

PN (bar)

310

G-N-1212-1.5MM

T1

3/4-14

T2

3/4-16

H1 (mm)

37.6

L1 (mm)

16.7

L2 (mm)

11.1

PN (bar)

310

G-N-1214

T1

3/4-16

T2

7/8-14

H1 (mm)

27

L1 (mm)

41

L2 (mm)

28

PN (bar)

310

G-N-1217

T1

3/4-14

T2

1.1/16-12

H1 (mm)

32

L1 (mm)

45

L2 (mm)

17

PN (bar)

310

G-N-1221

T1

3/4-14

T2

1.5/16-12

H1 (mm)

38

L1 (mm)

45

L2 (mm)

17

PN (bar)

310

G-N-1409

T1

7/8-14

T2

9/16-18

H1 (mm)

25

L1 (mm)

42

L2 (mm)

19

PN (bar)

240

G-N-1412

T1

7/8-14

T2

3/4-16

H1 (mm)

24

L1 (mm)

42

L2 (mm)

19

PN (bar)

240

G-N-1414

T1

7/8-14

T2

7/8-14

H1 (mm)

27

L1 (mm)

43

L2 (mm)

30

PN (bar)

240

G-N-1417

T1

7/8-14

T2

1.1/16-12

H1 (mm)

32

L1 (mm)

47

L2 (mm)

19

PN (bar)

240

G-N-1421

T1

7/8-14

T2

1.5/16-12

H1 (mm)

38

L1 (mm)

48

L2 (mm)

19

PN (bar)

240

G-N-1712

T1

1.1/16-12

T2

3/4-16

H1 (mm)

29

L1 (mm)

49

L2 (mm)

22

PN (bar)

240

G-N-1714

T1

1.1/16-12

T2

7/8-14

H1 (mm)

29

L1 (mm)

48

L2 (mm)

22

PN (bar)

240

G-N-1717

T1

1.1/16-12

T2

1.1/16-12

H1 (mm)

32

L1 (mm)

50

L2 (mm)

35

PN (bar)

240

G-N-1719

T1

1.1/16-12

T2

1.3/16-12

H1 (mm)

35

L1 (mm)

50

L2 (mm)

35

PN (bar)

240

G-N-1721

T1

1.1/16-12

T2

1.5/16-12

H1 (mm)

38

L1 (mm)

51

L2 (mm)

22

PN (bar)

240

G-N-1726

T1

1.1/16-12

T2

1.5/8-12

H1 (mm)

48

L1 (mm)

53

L2 (mm)

22

PN (bar)

240

G-N-2112

T1

1.5/16-12

T2

3/4-16

H1 (mm)

52

L1 (mm)

23

L2 (mm)

11.1

PN (bar)

210

G-N-2114

T1

1.5/16-12

T2

7/8-14

H1 (mm)

52

L1 (mm)

23

L2 (mm)

12.7

PN (bar)

210

G-N-2117

T1

1.5/16-12

T2

1.1/16-12

H1 (mm)

35

L1 (mm)

52

L2 (mm)

23

PN (bar)

210

G-N-2121

T1

1.5/16-12

T2

1.5/16-12

H1 (mm)

38

L1 (mm)

52

L2 (mm)

23

PN (bar)

210

G-N-2126

T1

1.5/16-12

T2

1.5/8-12

H1 (mm)

48

L1 (mm)

54

L2 (mm)

23

PN (bar)

210

G-N-2130

T1

1.5/16-12

T2

1.7/8-12

H1 (mm)

55.9

L1 (mm)

23

L2 (mm)

15.1

PN (bar)

210

G-N-2617

T1

1.5/8-12

T2

1.1/16-12

H1 (mm)

58.4

L1 (mm)

24

L2 (mm)

15.1

PN (bar)

170

G-N-2621

T1

1.5/8-12

T2

1.5/16-12

H1 (mm)

43

L1 (mm)

59

L2 (mm)

24

PN (bar)

170

G-N-2626

T1

1.5/8-12

T2

1.5/8-12

H1 (mm)

48

L1 (mm)

55

L2 (mm)

24

PN (bar)

170

G-N-2630

T1

1.5/8-12

T2

1.7/8-12

H1 (mm)

54

L1 (mm)

57

L2 (mm)

24

PN (bar)

170

G-N-3026

T1

1.7/8-12

T2

1.5/8-12

H1 (mm)

51

L1 (mm)

64

L2 (mm)

28

PN (bar)

140

G-N-3030

T1

1.7/8-12

T2

1.7/8-12

H1 (mm)

54

L1 (mm)

64

L2 (mm)

24

PN (bar)

140
