Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

  • Product Catalogue
  • Promotions
  • Our Quality
  • Safety Data Sheets

STRAIGHT ADAPTORS

MET LIGHT MALE X MET LIGHT MALE

STRAIGHT ADAPTORS

MET LIGHT MALE X MET LIGHT MALE

STRAIGHT ADAPTORS

MET LIGHT MALE X MET LIGHT MALE

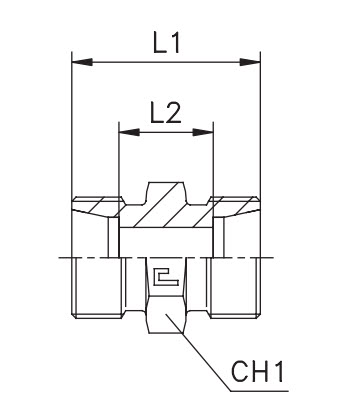

METRIC 24° CONE LIGHT MALE X METRIC 24° CONE LIGHT MALE STRAIGHT

PartNumber
Metric Male Thread
Suits Tube Diameter (mm)
L1 (mm)
L2 (mm) - mm
CH1 (mm)
PN (bar)
ML-ML-1212
M12-1.5
6
24
10
12
500
ML-ML-1414
M14-1.5
8
25
11
14
500
ML-ML-1616
M16-1.5
10
27
13
17
500
ML-ML-1818
M18-1.5
12
28
14
19
400
ML-ML-2222
M22-1.5
15
30
16
24
400
ML-ML-2626
M26-1.5
18
31
16
27
400
ML-ML-3030
M30-2
22
35
20
32
250
ML-ML-3636
M36-2
28
36
21
41
250
ML-ML-4545
M45-2
35
41
20
46
250
ML-ML-5252
M52-2
42
43
21
55
250

Product Data

ML-ML-1212

Metric Male Thread

M12-1.5

Suits Tube Diameter (mm)

6

L1 (mm)

24

L2 (mm) - mm

10

CH1 (mm)

12

PN (bar)

500

ML-ML-1414

Metric Male Thread

M14-1.5

Suits Tube Diameter (mm)

8

L1 (mm)

25

L2 (mm) - mm

11

CH1 (mm)

14

PN (bar)

500

ML-ML-1616

Metric Male Thread

M16-1.5

Suits Tube Diameter (mm)

10

L1 (mm)

27

L2 (mm) - mm

13

CH1 (mm)

17

PN (bar)

500

ML-ML-1818

Metric Male Thread

M18-1.5

Suits Tube Diameter (mm)

12

L1 (mm)

28

L2 (mm) - mm

14

CH1 (mm)

19

PN (bar)

400

ML-ML-2222

Metric Male Thread

M22-1.5

Suits Tube Diameter (mm)

15

L1 (mm)

30

L2 (mm) - mm

16

CH1 (mm)

24

PN (bar)

400

ML-ML-2626

Metric Male Thread

M26-1.5

Suits Tube Diameter (mm)

18

L1 (mm)

31

L2 (mm) - mm

16

CH1 (mm)

27

PN (bar)

400

ML-ML-3030

Metric Male Thread

M30-2

Suits Tube Diameter (mm)

22

L1 (mm)

35

L2 (mm) - mm

20

CH1 (mm)

32

PN (bar)

250

ML-ML-3636

Metric Male Thread

M36-2

Suits Tube Diameter (mm)

28

L1 (mm)

36

L2 (mm) - mm

21

CH1 (mm)

41

PN (bar)

250

ML-ML-4545

Metric Male Thread

M45-2

Suits Tube Diameter (mm)

35

L1 (mm)

41

L2 (mm) - mm

20

CH1 (mm)

46

PN (bar)

250

ML-ML-5252

Metric Male Thread

M52-2

Suits Tube Diameter (mm)

42

L1 (mm)

43

L2 (mm) - mm

21

CH1 (mm)

55

PN (bar)

250

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
