STRAIGHT ADAPTORS

Product catalogue Adaptors STRAIGHT ADAPTORS MET LIGHT MALE X MET LIGHT F/M

MET LIGHT MALE X MET LIGHT F/M

STRAIGHT ADAPTORS

MET LIGHT MALE X MET LIGHT F/M

ML-UL

MET LIGHT MALE X MET LIGHT F/M

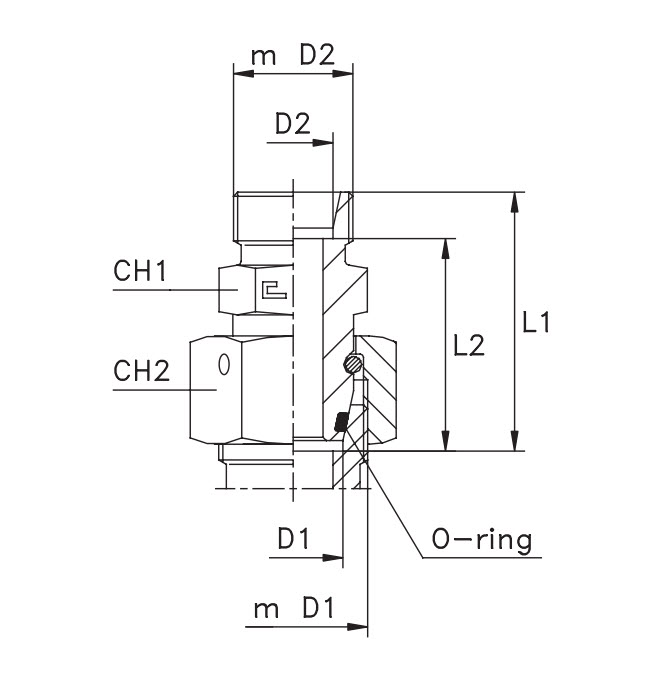

METRIC 24° CONE LIGHT MALE X METRIC 24° CONE LIGHT FEMALE SWIVEL NUT STRAIGHT

METRIC 24° CONE LIGHT MALE X METRIC 24° CONE LIGHT FEMALE SWIVEL NUT STRAIGHT

Download PDF
PartNumber
Metric Male Thread - m D2
Metric Female Thread - m D1
D2 - mm
D1 (mm)
L1-mm
L2 (mm) - mm
CH1 (mm)
CH2 (mm)
PN (Bar)
ML-UL-1214
M12-1.5
M14-1.5
6
8
31
24
12
17
500
ML-UL-1216
M12-1.5
M16-1.5
6
10
32.5
25.5
14
19
500
ML-UL-1414
M14-1.5
M14-1.5
8
8
500
ML-UL-1416
M14-1.5
M16-1.5
8
10
32.5
25.5
14
19
500
ML-UL-1418
M14-1.5
M18-1.5
8
12
32.5
25.5
17
22
400
ML-UL-1616
M16-1.5
M16-1.5
10
10
400
ML-UL-1618
M16-1.5
M18-1.5
10
12
33.5
26.5
17
22
400
ML-UL-1622
M16-1.5
M22-1.5
10
15
36.5
29.5
19
27
400
ML-UL-1626
M16-1.5
M26-1.5
10
18
400
ML-UL-1818
M18-1.5
M18-1.5
12
12
400
ML-UL-1822
M18-1.5
M22-1.5
12
15
36.5
29.5
19
27
400
ML-UL-1826
M18-1.5
M26-1.5
12
18
37.5
30.5
24
32
250
ML-UL-2222
M22-1.5
M22-1.5
15
15
250
ML-UL-2226
M22-1.5
M26-1.5
15
18
38.5
31.5
24
32
250
ML-UL-2230
M22-1.5
M30-2
15
22
39.5
32.5
27
36
250
ML-UL-2236
M22-1.5
M36-2
15
28
250
ML-UL-2626
M26-1.5
M26-1.5
18
18
250
ML-UL-2630
M26-1.5
M30-2
18
22
40.5
33
27
36
250
ML-UL-2636
M26-1.5
M36-2
18
28
250
ML-UL-3030
M30-2
M30-2
22
22
250
ML-UL-3036
M30-2
M36-2
22
28
43.5
36
32
41
250
ML-UL-3045
M30-2
M45-2
22
35
250
ML-UL-3052
M30-2
M52-2
22
42
250
ML-UL-3636
M36-2
M36-2
28
28
250
ML-UL-3645
M36-2
M45-2
28
35
250
ML-UL-3652
M36-2
M52-2
28
42
250
ML-UL-4545
M45-2
M45-2
35
35
250
ML-UL-4552
M45-2
M52-2
35
42
250
ML-UL-5252
M52-2
M52-2
42
42
250

Product Data

ML-UL-1214

Metric Male Thread - m D2

M12-1.5

Metric Female Thread - m D1

M14-1.5

D2 - mm

6

D1 (mm)

8

L1-mm

31

L2 (mm) - mm

24

CH1 (mm)

12

CH2 (mm)

17

PN (Bar)

500

ML-UL-1216

Metric Male Thread - m D2

M12-1.5

Metric Female Thread - m D1

M16-1.5

D2 - mm

6

D1 (mm)

10

L1-mm

32.5

L2 (mm) - mm

25.5

CH1 (mm)

14

CH2 (mm)

19

PN (Bar)

500

ML-UL-1414

Metric Male Thread - m D2

M14-1.5

Metric Female Thread - m D1

M14-1.5

D2 - mm

8

D1 (mm)

8

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

500

ML-UL-1416

Metric Male Thread - m D2

M14-1.5

Metric Female Thread - m D1

M16-1.5

D2 - mm

8

D1 (mm)

10

L1-mm

32.5

L2 (mm) - mm

25.5

CH1 (mm)

14

CH2 (mm)

19

PN (Bar)

500

ML-UL-1418

Metric Male Thread - m D2

M14-1.5

Metric Female Thread - m D1

M18-1.5

D2 - mm

8

D1 (mm)

12

L1-mm

32.5

L2 (mm) - mm

25.5

CH1 (mm)

17

CH2 (mm)

22

PN (Bar)

400

ML-UL-1616

Metric Male Thread - m D2

M16-1.5

Metric Female Thread - m D1

M16-1.5

D2 - mm

10

D1 (mm)

10

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

400

ML-UL-1618

Metric Male Thread - m D2

M16-1.5

Metric Female Thread - m D1

M18-1.5

D2 - mm

10

D1 (mm)

12

L1-mm

33.5

L2 (mm) - mm

26.5

CH1 (mm)

17

CH2 (mm)

22

PN (Bar)

400

ML-UL-1622

Metric Male Thread - m D2

M16-1.5

Metric Female Thread - m D1

M22-1.5

D2 - mm

10

D1 (mm)

15

L1-mm

36.5

L2 (mm) - mm

29.5

CH1 (mm)

19

CH2 (mm)

27

PN (Bar)

400

ML-UL-1626

Metric Male Thread - m D2

M16-1.5

Metric Female Thread - m D1

M26-1.5

D2 - mm

10

D1 (mm)

18

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

400

ML-UL-1818

Metric Male Thread - m D2

M18-1.5

Metric Female Thread - m D1

M18-1.5

D2 - mm

12

D1 (mm)

12

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

400

ML-UL-1822

Metric Male Thread - m D2

M18-1.5

Metric Female Thread - m D1

M22-1.5

D2 - mm

12

D1 (mm)

15

L1-mm

36.5

L2 (mm) - mm

29.5

CH1 (mm)

19

CH2 (mm)

27

PN (Bar)

400

ML-UL-1826

Metric Male Thread - m D2

M18-1.5

Metric Female Thread - m D1

M26-1.5

D2 - mm

12

D1 (mm)

18

L1-mm

37.5

L2 (mm) - mm

30.5

CH1 (mm)

24

CH2 (mm)

32

PN (Bar)

250

ML-UL-2222

Metric Male Thread - m D2

M22-1.5

Metric Female Thread - m D1

M22-1.5

D2 - mm

15

D1 (mm)

15

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-2226

Metric Male Thread - m D2

M22-1.5

Metric Female Thread - m D1

M26-1.5

D2 - mm

15

D1 (mm)

18

L1-mm

38.5

L2 (mm) - mm

31.5

CH1 (mm)

24

CH2 (mm)

32

PN (Bar)

250

ML-UL-2230

Metric Male Thread - m D2

M22-1.5

Metric Female Thread - m D1

M30-2

D2 - mm

15

D1 (mm)

22

L1-mm

39.5

L2 (mm) - mm

32.5

CH1 (mm)

27

CH2 (mm)

36

PN (Bar)

250

ML-UL-2236

Metric Male Thread - m D2

M22-1.5

Metric Female Thread - m D1

M36-2

D2 - mm

15

D1 (mm)

28

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-2626

Metric Male Thread - m D2

M26-1.5

Metric Female Thread - m D1

M26-1.5

D2 - mm

18

D1 (mm)

18

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-2630

Metric Male Thread - m D2

M26-1.5

Metric Female Thread - m D1

M30-2

D2 - mm

18

D1 (mm)

22

L1-mm

40.5

L2 (mm) - mm

33

CH1 (mm)

27

CH2 (mm)

36

PN (Bar)

250

ML-UL-2636

Metric Male Thread - m D2

M26-1.5

Metric Female Thread - m D1

M36-2

D2 - mm

18

D1 (mm)

28

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-3030

Metric Male Thread - m D2

M30-2

Metric Female Thread - m D1

M30-2

D2 - mm

22

D1 (mm)

22

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-3036

Metric Male Thread - m D2

M30-2

Metric Female Thread - m D1

M36-2

D2 - mm

22

D1 (mm)

28

L1-mm

43.5

L2 (mm) - mm

36

CH1 (mm)

32

CH2 (mm)

41

PN (Bar)

250

ML-UL-3045

Metric Male Thread - m D2

M30-2

Metric Female Thread - m D1

M45-2

D2 - mm

22

D1 (mm)

35

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-3052

Metric Male Thread - m D2

M30-2

Metric Female Thread - m D1

M52-2

D2 - mm

22

D1 (mm)

42

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-3636

Metric Male Thread - m D2

M36-2

Metric Female Thread - m D1

M36-2

D2 - mm

28

D1 (mm)

28

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-3645

Metric Male Thread - m D2

M36-2

Metric Female Thread - m D1

M45-2

D2 - mm

28

D1 (mm)

35

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-3652

Metric Male Thread - m D2

M36-2

Metric Female Thread - m D1

M52-2

D2 - mm

28

D1 (mm)

42

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-4545

Metric Male Thread - m D2

M45-2

Metric Female Thread - m D1

M45-2

D2 - mm

35

D1 (mm)

35

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-4552

Metric Male Thread - m D2

M45-2

Metric Female Thread - m D1

M52-2

D2 - mm

35

D1 (mm)

42

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250

ML-UL-5252

Metric Male Thread - m D2

M52-2

Metric Female Thread - m D1

M52-2

D2 - mm

42

D1 (mm)

42

L1-mm

L2 (mm) - mm

CH1 (mm)

CH2 (mm)

PN (Bar)

250
