Get the job done with the right equipment
Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
- Product Catalogue
- Safety Data Sheets

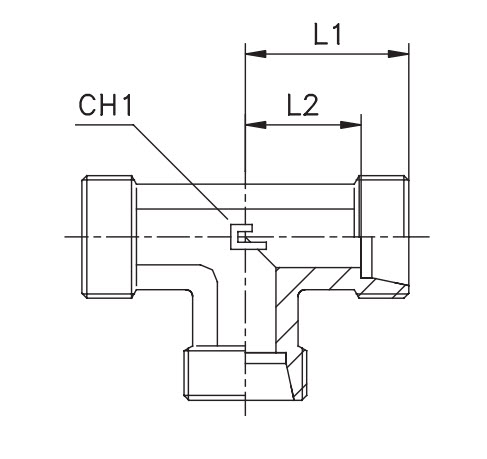

TEE ADAPTORS
MET LIGHT MALE TEE
TEE ADAPTORS
MET LIGHT MALE TEE
Product Data
ML-ML-ML-121212
Metric Male Thread
M12-1.5
Suits Tube Diameter (mm)
6
L1 (mm)
19
L2 (mm) - mm
12
CH1 (mm)
12
PN (bar)
500
ML-ML-ML-141414
Metric Male Thread
M14-1.5
Suits Tube Diameter (mm)
8
L1 (mm)
21
L2 (mm) - mm
14
CH1 (mm)
12
PN (bar)
500
ML-ML-ML-161616
Metric Male Thread
M16-1.5
Suits Tube Diameter (mm)
10
L1 (mm)
22
L2 (mm) - mm
15
CH1 (mm)
14
PN (bar)
500
ML-ML-ML-181818
Metric Male Thread
M18-1.5
Suits Tube Diameter (mm)
12
L1 (mm)
24
L2 (mm) - mm
17
CH1 (mm)
17
PN (bar)
400
ML-ML-ML-222222
Metric Male Thread
M22-1.5
Suits Tube Diameter (mm)
15
L1 (mm)
28
L2 (mm) - mm
21
CH1 (mm)
19
PN (bar)
400
ML-ML-ML-262626
Metric Male Thread
M26-1.5
Suits Tube Diameter (mm)
18
L1 (mm)
31
L2 (mm) - mm
24
CH1 (mm)
24
PN (bar)
400
ML-ML-ML-303030
Metric Male Thread
M30-2
Suits Tube Diameter (mm)
22
L1 (mm)
35
L2 (mm) - mm
28
CH1 (mm)
27
PN (bar)
250
ML-ML-ML-363636
Metric Male Thread
M36-2
Suits Tube Diameter (mm)
28
L1 (mm)
38
L2 (mm) - mm
31
CH1 (mm)
36
PN (bar)
250
ML-ML-ML-454545
Metric Male Thread
M45-2
Suits Tube Diameter (mm)
35
L1 (mm)
45
L2 (mm) - mm
35
CH1 (mm)
41
PN (bar)
250
ML-ML-ML-525252
Metric Male Thread
M52-2
Suits Tube Diameter (mm)
42
L1 (mm)
51
L2 (mm) - mm
40
CH1 (mm)
50
PN (bar)
250
