R5 FERRULES

R5 SWAGE FERRULE

R5 FERRULES

R5 SWAGE FERRULE

R5 FERRULES

R5 SWAGE FERRULE

FOR GATES C5 HOSE

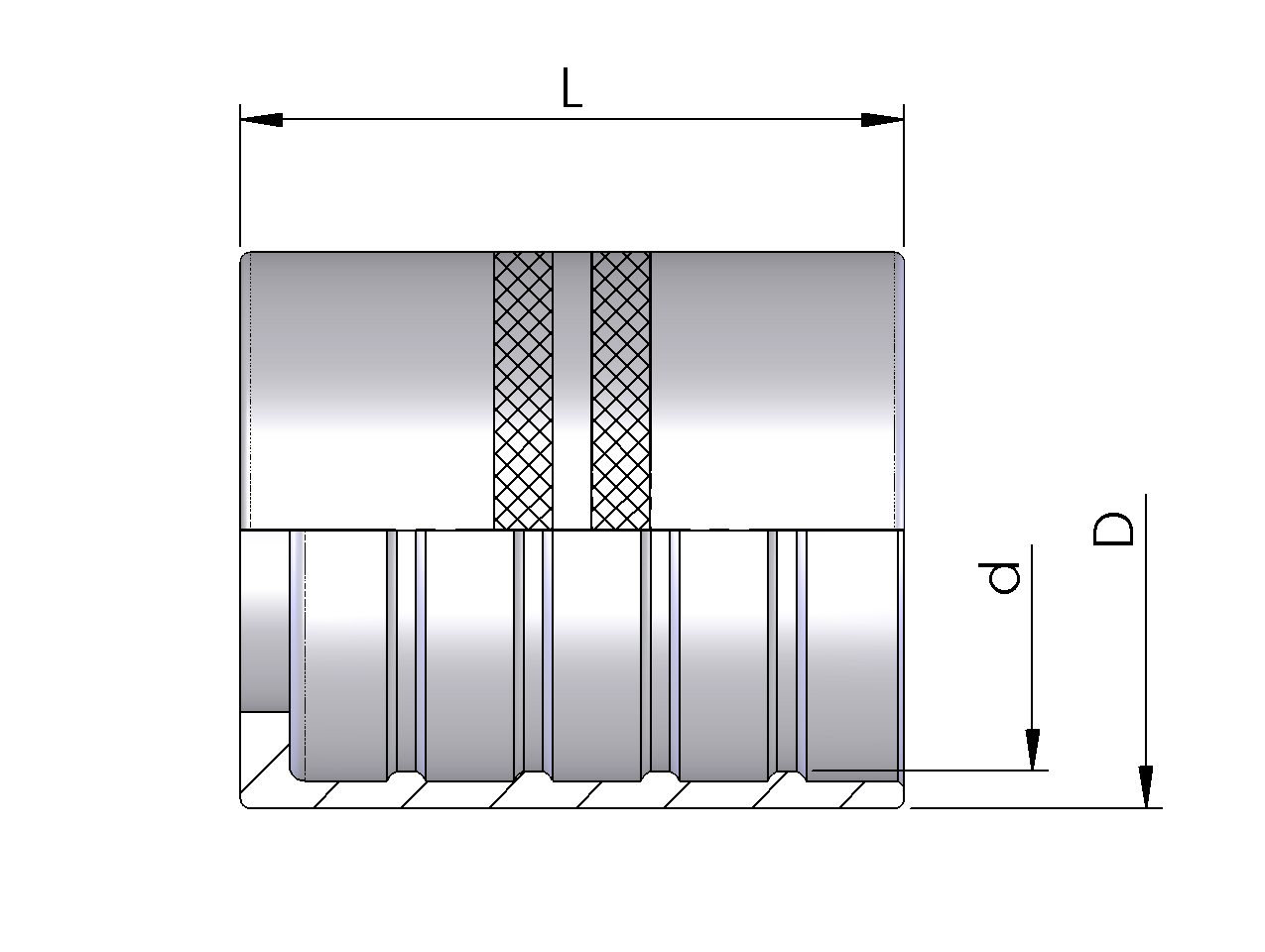

PartNumber
Hose I.D inches (Nominal Bore)
Suits Hose Dash Size
Length - L (mm)
I.D - d (mm)
O.D - D (mm)
SNV-04
1/4
05
29.0
15.2
19.0
SNV-05
5/16
06
30.0
18.4
22.0
SNV-06
13/32
08
31.0
19.9
24.0
SNV-08
1/2
10
34.0
24.7
28.5
SNV-10
5/8
12
36.0
28.0
32.0
SNV-12
3/4
19
42
32.6
38

Product Data

SNV-04

Hose I.D inches (Nominal Bore)

1/4

Suits Hose Dash Size

05

Length - L (mm)

29.0

I.D - d (mm)

15.2

O.D - D (mm)

19.0

SNV-05

Hose I.D inches (Nominal Bore)

5/16

Suits Hose Dash Size

06

Length - L (mm)

30.0

I.D - d (mm)

18.4

O.D - D (mm)

22.0

SNV-06

Hose I.D inches (Nominal Bore)

13/32

Suits Hose Dash Size

08

Length - L (mm)

31.0

I.D - d (mm)

19.9

O.D - D (mm)

24.0

SNV-08

Hose I.D inches (Nominal Bore)

1/2

Suits Hose Dash Size

10

Length - L (mm)

34.0

I.D - d (mm)

24.7

O.D - D (mm)

28.5

SNV-10

Hose I.D inches (Nominal Bore)

5/8

Suits Hose Dash Size

12

Length - L (mm)

36.0

I.D - d (mm)

28.0

O.D - D (mm)

32.0

SNV-12

Hose I.D inches (Nominal Bore)

3/4

Suits Hose Dash Size

19

Length - L (mm)

42

I.D - d (mm)

32.6

O.D - D (mm)

38
