BSP

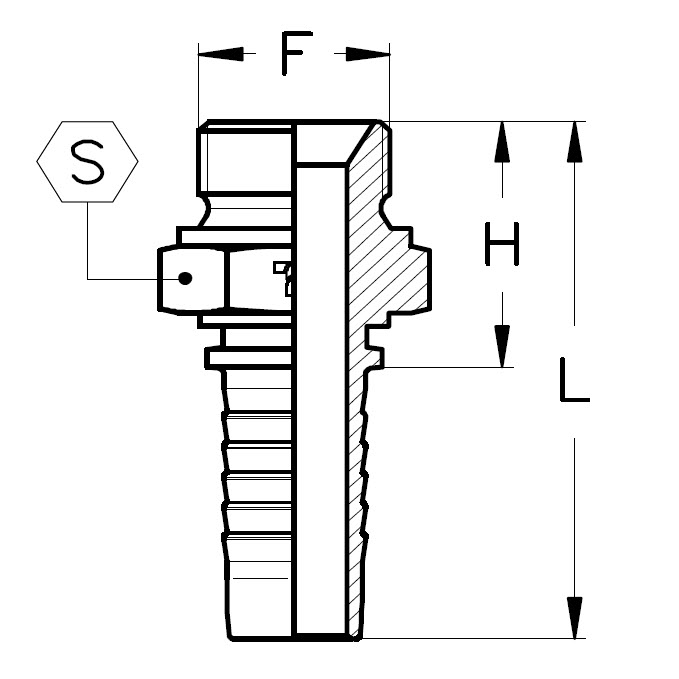

Product catalogue Carbon Steel Swage Couplings BSP BSPP MALE STRAIGHT

BSPP MALE STRAIGHT

BSP

BSPP MALE STRAIGHT

S12

BSPP MALE STRAIGHT

BSP 60° CONE

  • ISO 12151-6

BSP 60° CONE

Download PDF
PartNumber
BSPP Male Thread - F
Hose I.D (in)
Hose I.D (mm)
Dash size
Hex A/F - S (mm)
Cutoff - H (mm)
Length - L (mm)
Working Pressure (bar)
Working Pressure (psi)
S12-0204
1/8-28
1/4
6.4
04
12
21
49
350
5000
S12-0404
1/4-19
1/4
6.4
04
19
25
53
450
6500
S12-0406
1/4-19
3/8
9.5
06
19
25
55
450
6500
S12-0604
3/8-19
1/4
6.4
04
22
27
55
450
6500
S12-0606
3/8-19
3/8
9.5
06
22
27
58
450
6500
S12-0608
3/8-19
1/2
12.7
08
22
28
61
420
6000
S12-0806
1/2-14
3/8
9.5
06
27
32
62
420
6000
S12-0808
1/2-14
1/2
12.7
08
27
33
66
420
6000
S12-1008
5/8-14
1/2
12.7
08
30
35
68
350
5000
S12-1010
5/8-14
5/8
15.9
10
30
35
71
350
5000
S12-1208
3/4-14
1/2
12.7
08
32
36
69
350
5000
S12-1212
3/4-14
3/4
19
12
32
37
77
350
5000
S12-1612
1-11
3/4
19
12
41
42
82
280
4000
S12-1616
1-11
1
25.4
16
41
45
101
280
4000
S12-2020
1.1/4-11
1 1/4
31.8
20
46
51
118
210
3000

Product Data

S12-0204

BSPP Male Thread - F

1/8-28

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Hex A/F - S (mm)

12

Cutoff - H (mm)

21

Length - L (mm)

49

Working Pressure (bar)

350

Working Pressure (psi)

5000

S12-0404

BSPP Male Thread - F

1/4-19

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Hex A/F - S (mm)

19

Cutoff - H (mm)

25

Length - L (mm)

53

Working Pressure (bar)

450

Working Pressure (psi)

6500

S12-0406

BSPP Male Thread - F

1/4-19

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Hex A/F - S (mm)

19

Cutoff - H (mm)

25

Length - L (mm)

55

Working Pressure (bar)

450

Working Pressure (psi)

6500

S12-0604

BSPP Male Thread - F

3/8-19

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Hex A/F - S (mm)

22

Cutoff - H (mm)

27

Length - L (mm)

55

Working Pressure (bar)

450

Working Pressure (psi)

6500

S12-0606

BSPP Male Thread - F

3/8-19

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Hex A/F - S (mm)

22

Cutoff - H (mm)

27

Length - L (mm)

58

Working Pressure (bar)

450

Working Pressure (psi)

6500

S12-0608

BSPP Male Thread - F

3/8-19

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F - S (mm)

22

Cutoff - H (mm)

28

Length - L (mm)

61

Working Pressure (bar)

420

Working Pressure (psi)

6000

S12-0806

BSPP Male Thread - F

1/2-14

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Hex A/F - S (mm)

27

Cutoff - H (mm)

32

Length - L (mm)

62

Working Pressure (bar)

420

Working Pressure (psi)

6000

S12-0808

BSPP Male Thread - F

1/2-14

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F - S (mm)

27

Cutoff - H (mm)

33

Length - L (mm)

66

Working Pressure (bar)

420

Working Pressure (psi)

6000

S12-1008

BSPP Male Thread - F

5/8-14

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F - S (mm)

30

Cutoff - H (mm)

35

Length - L (mm)

68

Working Pressure (bar)

350

Working Pressure (psi)

5000

S12-1010

BSPP Male Thread - F

5/8-14

Hose I.D (in)

5/8

Hose I.D (mm)

15.9

Dash size

10

Hex A/F - S (mm)

30

Cutoff - H (mm)

35

Length - L (mm)

71

Working Pressure (bar)

350

Working Pressure (psi)

5000

S12-1208

BSPP Male Thread - F

3/4-14

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F - S (mm)

32

Cutoff - H (mm)

36

Length - L (mm)

69

Working Pressure (bar)

350

Working Pressure (psi)

5000

S12-1212

BSPP Male Thread - F

3/4-14

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F - S (mm)

32

Cutoff - H (mm)

37

Length - L (mm)

77

Working Pressure (bar)

350

Working Pressure (psi)

5000

S12-1612

BSPP Male Thread - F

1-11

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F - S (mm)

41

Cutoff - H (mm)

42

Length - L (mm)

82

Working Pressure (bar)

280

Working Pressure (psi)

4000

S12-1616

BSPP Male Thread - F

1-11

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Hex A/F - S (mm)

41

Cutoff - H (mm)

45

Length - L (mm)

101

Working Pressure (bar)

280

Working Pressure (psi)

4000

S12-2020

BSPP Male Thread - F

1.1/4-11

Hose I.D (in)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Hex A/F - S (mm)

46

Cutoff - H (mm)

51

Length - L (mm)

118

Working Pressure (bar)

210

Working Pressure (psi)

3000
