BSP

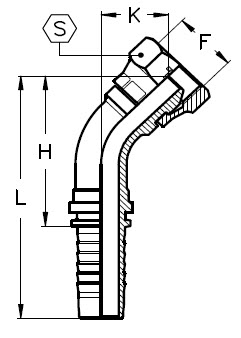

BSPP FEMALE 45° ELBOW
Product Data
S60-0404
BSPP Female Thread - F
1/4-19
Hose I.D (in)
1/4
Hose I.D (mm)
6.4
Dash size
04
Hex A/F - S (mm)
19
Drop - K (mm)
16
Cutoff - H (mm)
37
Length - L (mm)
65
Working Pressure (bar)
450
Working Pressure (psi)
6500
S60-0604
BSPP Female Thread - F
3/8-19
Hose I.D (in)
1/4
Hose I.D (mm)
6.4
Dash size
04
Hex A/F - S (mm)
22
Drop - K (mm)
19
Cutoff - H (mm)
40
Length - L (mm)
68
Working Pressure (bar)
450
Working Pressure (psi)
6500
S60-0606
BSPP Female Thread - F
3/8-19
Hose I.D (in)
3/8
Hose I.D (mm)
9.5
Dash size
06
Hex A/F - S (mm)
22
Drop - K (mm)
19
Cutoff - H (mm)
42
Length - L (mm)
73
Working Pressure (bar)
450
Working Pressure (psi)
6500
S60-0806
BSPP Female Thread - F
1/2-14
Hose I.D (in)
3/8
Hose I.D (mm)
9.5
Dash size
06
Hex A/F - S (mm)
27
Drop - K (mm)
21
Cutoff - H (mm)
44
Length - L (mm)
75
Working Pressure (bar)
420
Working Pressure (psi)
6000
S60-0808
BSPP Female Thread - F
1/2-14
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Hex A/F - S (mm)
27
Drop - K (mm)
22
Cutoff - H (mm)
49
Length - L (mm)
82
Working Pressure (bar)
420
Working Pressure (psi)
6000
S60-1010
BSPP Female Thread - F
5/8-14
Hose I.D (in)
5/8
Hose I.D (mm)
15.9
Dash size
10
Hex A/F - S (mm)
30
Drop - K (mm)
24
Cutoff - H (mm)
54
Length - L (mm)
90
Working Pressure (bar)
350
Working Pressure (psi)
5000
S60-1212
BSPP Female Thread - F
3/4-14
Hose I.D (in)
3/4
Hose I.D (mm)
19
Dash size
12
Hex A/F - S (mm)
32
Drop - K (mm)
28
Cutoff - H (mm)
66
Length - L (mm)
106
Working Pressure (bar)
350
Working Pressure (psi)
5000
S60-1616
BSPP Female Thread - F
1-11
Hose I.D (in)
1
Hose I.D (mm)
25.4
Dash size
16
Hex A/F - S (mm)
36
Drop - K (mm)
41
Cutoff - H (mm)
86
Length - L (mm)
142
Working Pressure (bar)
380
Working Pressure (psi)
5500
S60-2020
BSPP Female Thread - F
1 1/4-11
Hose I.D (in)
1 1/4
Hose I.D (mm)
31.8
Dash size
20
Hex A/F - S (mm)
43
Drop - K (mm)
50
Cutoff - H (mm)
103
Length - L (mm)
169
Working Pressure (bar)
325
Working Pressure (psi)
4700
S60-2424
BSPP Female Thread - F
1 1/2-11
Hose I.D (in)
1 1/2
Hose I.D (mm)
38
Dash size
24
Hex A/F - S (mm)
51
Drop - K (mm)
60
Cutoff - H (mm)
123
Length - L (mm)
203
Working Pressure (bar)
290
Working Pressure (psi)
4200
S60-3232
BSPP Female Thread - F
2-11
Hose I.D (in)
2
Hose I.D (mm)
51
Dash size
32
Hex A/F - S (mm)
65
Drop - K (mm)
75
Cutoff - H (mm)
160
Length - L (mm)
257
Working Pressure (bar)
250
Working Pressure (psi)
3600
