METRIC 24°
METRIC HEAVY FEMALE 90° ELBOW
METRIC 24°
METRIC HEAVY FEMALE 90° ELBOW

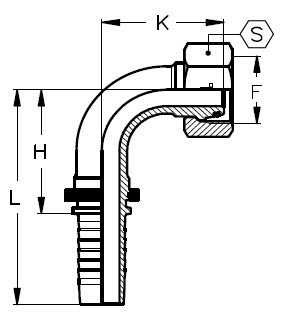

Product Data
S83-M1404
Metric Female Thread - F
M14x1.5
Hose I.D (in)
1/4
Hose I.D (mm)
6.4
Dash size
04
Tube Size
6
Hex A/F - S (mm)
17
Drop - K (mm)
26
Cutoff - H (mm)
25
Length - L (mm)
53
Working Pressure (bar)
450
Working Pressure (psi)
6500
S83-M1604
Metric Female Thread - F
M16x1.5
Hose I.D (in)
1/4
Hose I.D (mm)
6.4
Dash size
04
Tube Size
8
Hex A/F - S (mm)
19
Drop - K (mm)
29
Cutoff - H (mm)
29
Length - L (mm)
57
Working Pressure (bar)
450
Working Pressure (psi)
6500
S83-M1804
Metric Female Thread - F
M18x1.5
Hose I.D (in)
1/4
Hose I.D (mm)
6.4
Dash size
04
Tube Size
10
Hex A/F - S (mm)
22
Drop - K (mm)
30
Cutoff - H (mm)
29
Length - L (mm)
57
Working Pressure (bar)
450
Working Pressure (psi)
6500
S83-M1806
Metric Female Thread - F
M18x1.5
Hose I.D (in)
3/8
Hose I.D (mm)
9.5
Dash size
06
Tube Size
10
Hex A/F - S (mm)
22
Drop - K (mm)
33
Cutoff - H (mm)
30
Length - L (mm)
61
Working Pressure (bar)
445
Working Pressure (psi)
6500
S83-M1808
Metric Female Thread - F
M18x1.5
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Tube Size
12
Hex A/F - S (mm)
24
Drop - K (mm)
48
Cutoff - H (mm)
35
Length - L (mm)
70.3
Working Pressure (bar)
445
Working Pressure (psi)
6500
S83-M2005
Metric Female Thread - F
M20x1.5
Hose I.D (in)
5/16
Hose I.D (mm)
7.9
Dash size
05
Tube Size
12
Hex A/F - S (mm)
24
Drop - K (mm)
32
Cutoff - H (mm)
28
Length - L (mm)
56
Working Pressure (bar)
350
Working Pressure (psi)
5000
S83-M2006
Metric Female Thread - F
M20x1.5
Hose I.D (in)
3/8
Hose I.D (mm)
9.5
Dash size
06
Tube Size
12
Hex A/F - S (mm)
24
Drop - K (mm)
33
Cutoff - H (mm)
31
Length - L (mm)
61
Working Pressure (bar)
445
Working Pressure (psi)
6500
S83-M2008
Metric Female Thread - F
M20x1.5
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Tube Size
12
Hex A/F - S (mm)
25
Drop - K (mm)
52
Cutoff - H (mm)
37
Length - L (mm)
67
Working Pressure (bar)
445
Working Pressure (psi)
6500
S83-M2206
Metric Female Thread - F
M22x1.5
Hose I.D (in)
3/8
Hose I.D (mm)
9.5
Dash size
06
Tube Size
14
Hex A/F - S (mm)
27
Drop - K (mm)
37
Cutoff - H (mm)
34
Length - L (mm)
64
Working Pressure (bar)
445
Working Pressure (psi)
6500
S83-M2208
Metric Female Thread - F
M22x1.5
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Tube Size
14
Hex A/F - S (mm)
27
Drop - K (mm)
41
Cutoff - H (mm)
39
Length - L (mm)
71
Working Pressure (bar)
420
Working Pressure (psi)
6000
S83-M2408
Metric Female Thread - F
M24x1.5
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Tube Size
16
Hex A/F - S (mm)
30
Drop - K (mm)
42
Cutoff - H (mm)
39
Length - L (mm)
71
Working Pressure (bar)
420
Working Pressure (psi)
6000
S83-M3010
Metric Female Thread - F
M30x2
Hose I.D (in)
5/8
Hose I.D (mm)
15.9
Dash size
10
Tube Size
20
Hex A/F - S (mm)
36
Drop - K (mm)
50
Cutoff - H (mm)
44
Length - L (mm)
80
Working Pressure (bar)
350
Working Pressure (psi)
5000
S83-M3012
Metric Female Thread - F
M30x2
Hose I.D (in)
3/4
Hose I.D (mm)
19
Dash size
12
Tube Size
20
Hex A/F - S (mm)
36
Drop - K (mm)
55
Cutoff - H (mm)
54
Length - L (mm)
94
Working Pressure (bar)
350
Working Pressure (psi)
5000
S83-M3612
Metric Female Thread - F
M36x2
Hose I.D (in)
3/4
Hose I.D (mm)
19
Dash size
12
Tube Size
25
Hex A/F - S (mm)
46
Drop - K (mm)
57
Cutoff - H (mm)
54
Length - L (mm)
94
Working Pressure (bar)
350
Working Pressure (psi)
5000
S83-M3616
Metric Female Thread - F
M36x2
Hose I.D (in)
1
Hose I.D (mm)
25.4
Dash size
16
Tube Size
25
Hex A/F - S (mm)
46
Drop - K (mm)
69
Cutoff - H (mm)
71
Length - L (mm)
128
Working Pressure (bar)
380
Working Pressure (psi)
5500
S83-M4216
Metric Female Thread - F
M42x2
Hose I.D (in)
1
Hose I.D (mm)
25.4
Dash size
16
Tube Size
30
Hex A/F - S (mm)
50
Drop - K (mm)
67
Cutoff - H (mm)
71
Length - L (mm)
128
Working Pressure (bar)
380
Working Pressure (psi)
5500
S83-M5220
Metric Female Thread - F
M52x2
Hose I.D (in)
1 1/4
Hose I.D (mm)
31.8
Dash size
20
Tube Size
38
Hex A/F - S (mm)
60
Drop - K (mm)
80
Cutoff - H (mm)
87
Length - L (mm)
154
Working Pressure (bar)
325
Working Pressure (psi)
4700
