METRIC 24°

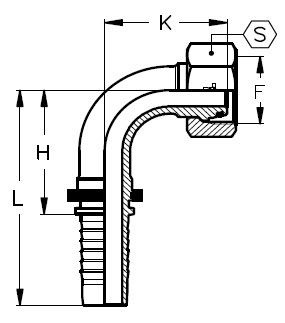

Product catalogue Carbon Steel Swage Couplings METRIC 24° METRIC LIGHT FEMALE 90° ELBOW

METRIC LIGHT FEMALE 90° ELBOW

METRIC 24°

METRIC LIGHT FEMALE 90° ELBOW

METRIC 24°

METRIC LIGHT FEMALE 90° ELBOW

24° CONE SWIVEL NUT

Download PDF
PartNumber
Metric Female Thread - F
Hose I.D (in)
Hose I.D (mm)
Dash size
Tube Size
Hex A/F - S (mm)
Drop - K (mm)
Cutoff - H (mm)
Length - L (mm)
Working Pressure (bar)
Working Pressure (psi)
S86-M1204
M12x1.5
1/4
6.4
04
6
17
26
26
53
280
4000
S86-M1404
M14x1.5
1/4
6.4
04
8
17
29
29
57
280
4000
S86-M1406
M14x1.5
3/8
9.5
06
8
19
42
30
61
280
4000
S86-M1604
M16x1.5
1/4
6.4
04
10
19
30
29
57
280
4000
S86-M1605
M16x1.5
5/16
7.9
05
10
19
33
31
59
280
4000
S86-M1606
M16x1.5
3/8
9.5
06
10
19
31
31
61
280
4000
S86-M1806
M18x1.5
3/8
9.5
06
12
22
33
31
61
280
4000
S86-M1808
M18x1.5
1/2
12.7
08
12
22
71
41
47
280
4000
S86-M2208
M22x1.5
1/2
12.7
08
15
27
38
37
70
280
4000
S86-M2608
M26x1.5
1/2
12.7
08
18
32
40
37
70
210
3000
S86-M2610
M26x1.5
5/8
15.9
10
18
32
45
44
80
210
3000
S86-M2612
M26x1.5
3/4
19
12
18
32
57
54
94
210
3000
S86-M3012
M30x2
3/4
19
12
22
36
52
54
94
210
3000
S86-M3612
M36x2
3/4
19
12
28
41
51
56
95
100
1500
S86-M3616
M36x2
1
25.4
16
28
41
63
72
128
100
1500
S86-M4520
M45x2
1 1/4
31.8
20
38
50
73
93
159
100
1500
S86-M5224
M52-2
1 1/2
38.1
24
42
60
83
93
175
100
1500

Product Data

S86-M1204

Metric Female Thread - F

M12x1.5

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Tube Size

6

Hex A/F - S (mm)

17

Drop - K (mm)

26

Cutoff - H (mm)

26

Length - L (mm)

53

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M1404

Metric Female Thread - F

M14x1.5

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Tube Size

8

Hex A/F - S (mm)

17

Drop - K (mm)

29

Cutoff - H (mm)

29

Length - L (mm)

57

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M1406

Metric Female Thread - F

M14x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

8

Hex A/F - S (mm)

19

Drop - K (mm)

42

Cutoff - H (mm)

30

Length - L (mm)

61

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M1604

Metric Female Thread - F

M16x1.5

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Tube Size

10

Hex A/F - S (mm)

19

Drop - K (mm)

30

Cutoff - H (mm)

29

Length - L (mm)

57

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M1605

Metric Female Thread - F

M16x1.5

Hose I.D (in)

5/16

Hose I.D (mm)

7.9

Dash size

05

Tube Size

10

Hex A/F - S (mm)

19

Drop - K (mm)

33

Cutoff - H (mm)

31

Length - L (mm)

59

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M1606

Metric Female Thread - F

M16x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

10

Hex A/F - S (mm)

19

Drop - K (mm)

31

Cutoff - H (mm)

31

Length - L (mm)

61

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M1806

Metric Female Thread - F

M18x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

12

Hex A/F - S (mm)

22

Drop - K (mm)

33

Cutoff - H (mm)

31

Length - L (mm)

61

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M1808

Metric Female Thread - F

M18x1.5

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Tube Size

12

Hex A/F - S (mm)

22

Drop - K (mm)

71

Cutoff - H (mm)

41

Length - L (mm)

47

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M2208

Metric Female Thread - F

M22x1.5

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Tube Size

15

Hex A/F - S (mm)

27

Drop - K (mm)

38

Cutoff - H (mm)

37

Length - L (mm)

70

Working Pressure (bar)

280

Working Pressure (psi)

4000

S86-M2608

Metric Female Thread - F

M26x1.5

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Tube Size

18

Hex A/F - S (mm)

32

Drop - K (mm)

40

Cutoff - H (mm)

37

Length - L (mm)

70

Working Pressure (bar)

210

Working Pressure (psi)

3000

S86-M2610

Metric Female Thread - F

M26x1.5

Hose I.D (in)

5/8

Hose I.D (mm)

15.9

Dash size

10

Tube Size

18

Hex A/F - S (mm)

32

Drop - K (mm)

45

Cutoff - H (mm)

44

Length - L (mm)

80

Working Pressure (bar)

210

Working Pressure (psi)

3000

S86-M2612

Metric Female Thread - F

M26x1.5

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Tube Size

18

Hex A/F - S (mm)

32

Drop - K (mm)

57

Cutoff - H (mm)

54

Length - L (mm)

94

Working Pressure (bar)

210

Working Pressure (psi)

3000

S86-M3012

Metric Female Thread - F

M30x2

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Tube Size

22

Hex A/F - S (mm)

36

Drop - K (mm)

52

Cutoff - H (mm)

54

Length - L (mm)

94

Working Pressure (bar)

210

Working Pressure (psi)

3000

S86-M3612

Metric Female Thread - F

M36x2

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Tube Size

28

Hex A/F - S (mm)

41

Drop - K (mm)

51

Cutoff - H (mm)

56

Length - L (mm)

95

Working Pressure (bar)

100

Working Pressure (psi)

1500

S86-M3616

Metric Female Thread - F

M36x2

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Tube Size

28

Hex A/F - S (mm)

41

Drop - K (mm)

63

Cutoff - H (mm)

72

Length - L (mm)

128

Working Pressure (bar)

100

Working Pressure (psi)

1500

S86-M4520

Metric Female Thread - F

M45x2

Hose I.D (in)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Tube Size

38

Hex A/F - S (mm)

50

Drop - K (mm)

73

Cutoff - H (mm)

93

Length - L (mm)

159

Working Pressure (bar)

100

Working Pressure (psi)

1500

S86-M5224

Metric Female Thread - F

M52-2

Hose I.D (in)

1 1/2

Hose I.D (mm)

38.1

Dash size

24

Tube Size

42

Hex A/F - S (mm)

60

Drop - K (mm)

83

Cutoff - H (mm)

93

Length - L (mm)

175

Working Pressure (bar)

100

Working Pressure (psi)

1500
