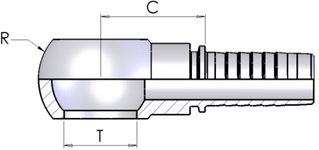

METRIC BANJO TAIL

Product catalogue Carbon Steel Swage Couplings METRIC BANJO TAIL METRIC BANJO TAIL

METRIC BANJO TAIL

METRIC BANJO TAIL

METRIC BANJO TAIL

METRIC BANJO TAIL

METRIC BANJO TAIL

TO SUIT METRIC BOLT

Download PDF
PartNumber
Banjo ID - D (mm)
Hose I.D (in)
Hose I.D (mm)
Dash size
Suits Bolt - F
Thickness - T (mm)
Cutoff - H (mm)
Length - L (mm)
Working Pressure (bar)
Working Pressure (psi)
S38-M1003
10.2
3/16
5
03
M10x1
10
20
45
200
2900
S38-M1004
10.2
1/4
6.4
04
M10x1
10
23
51
200
2900
S38-M1204
12.1
1/4
6.4
04
M12x1.5
12
23
51
200
2900
S38-M1404
14.2
1/4
6.4
04
M14x1.5
14
23
51
200
2900
S38-M1405
14.2
5/16
7.9
05
M14x1.5
14
25
52
200
2900
S38-M1406
14.2
3/8
9.5
06
M14x1.5
14
24
54.5
200
2900
S38-M1604
16.2
1/4
6.4
04
M16x1.5
17.5
26.5
54.5
200
2900
S38-M1606
16.2
3/8
9.5
06
M16X1.5
17.5
24
54.5
200
2900
S38-M1806
18.2
3/8
9.5
06
M18X1.5
20.5
27
57.5
200
2900
S38-M1808
18.2
1/2
12.7
08
M18X1.5
20.5
28.1
61.1
200
2900
S38-M2208
22.2
1/2
12.7
08
M22X1.5
22.2
28.5
61.5
200
2900
S38-M2210
22.2
5/8
15.9
10
M22X1.5
22.2
31
63
200
2900
S38-M2612
26
3/4
19
12
M26X1.5
26
38
78
200
2900

Product Data

S38-M1003

Banjo ID - D (mm)

10.2

Hose I.D (in)

3/16

Hose I.D (mm)

5

Dash size

03

Suits Bolt - F

M10x1

Thickness - T (mm)

10

Cutoff - H (mm)

20

Length - L (mm)

45

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1004

Banjo ID - D (mm)

10.2

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Suits Bolt - F

M10x1

Thickness - T (mm)

10

Cutoff - H (mm)

23

Length - L (mm)

51

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1204

Banjo ID - D (mm)

12.1

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Suits Bolt - F

M12x1.5

Thickness - T (mm)

12

Cutoff - H (mm)

23

Length - L (mm)

51

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1404

Banjo ID - D (mm)

14.2

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Suits Bolt - F

M14x1.5

Thickness - T (mm)

14

Cutoff - H (mm)

23

Length - L (mm)

51

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1405

Banjo ID - D (mm)

14.2

Hose I.D (in)

5/16

Hose I.D (mm)

7.9

Dash size

05

Suits Bolt - F

M14x1.5

Thickness - T (mm)

14

Cutoff - H (mm)

25

Length - L (mm)

52

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1406

Banjo ID - D (mm)

14.2

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Suits Bolt - F

M14x1.5

Thickness - T (mm)

14

Cutoff - H (mm)

24

Length - L (mm)

54.5

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1604

Banjo ID - D (mm)

16.2

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Suits Bolt - F

M16x1.5

Thickness - T (mm)

17.5

Cutoff - H (mm)

26.5

Length - L (mm)

54.5

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1606

Banjo ID - D (mm)

16.2

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Suits Bolt - F

M16X1.5

Thickness - T (mm)

17.5

Cutoff - H (mm)

24

Length - L (mm)

54.5

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1806

Banjo ID - D (mm)

18.2

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Suits Bolt - F

M18X1.5

Thickness - T (mm)

20.5

Cutoff - H (mm)

27

Length - L (mm)

57.5

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M1808

Banjo ID - D (mm)

18.2

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Suits Bolt - F

M18X1.5

Thickness - T (mm)

20.5

Cutoff - H (mm)

28.1

Length - L (mm)

61.1

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M2208

Banjo ID - D (mm)

22.2

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Suits Bolt - F

M22X1.5

Thickness - T (mm)

22.2

Cutoff - H (mm)

28.5

Length - L (mm)

61.5

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M2210

Banjo ID - D (mm)

22.2

Hose I.D (in)

5/8

Hose I.D (mm)

15.9

Dash size

10

Suits Bolt - F

M22X1.5

Thickness - T (mm)

22.2

Cutoff - H (mm)

31

Length - L (mm)

63

Working Pressure (bar)

200

Working Pressure (psi)

2900

S38-M2612

Banjo ID - D (mm)

26

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Suits Bolt - F

M26X1.5

Thickness - T (mm)

26

Cutoff - H (mm)

38

Length - L (mm)

78

Working Pressure (bar)

200

Working Pressure (psi)

2900
