SAE FLANGES CODE 61

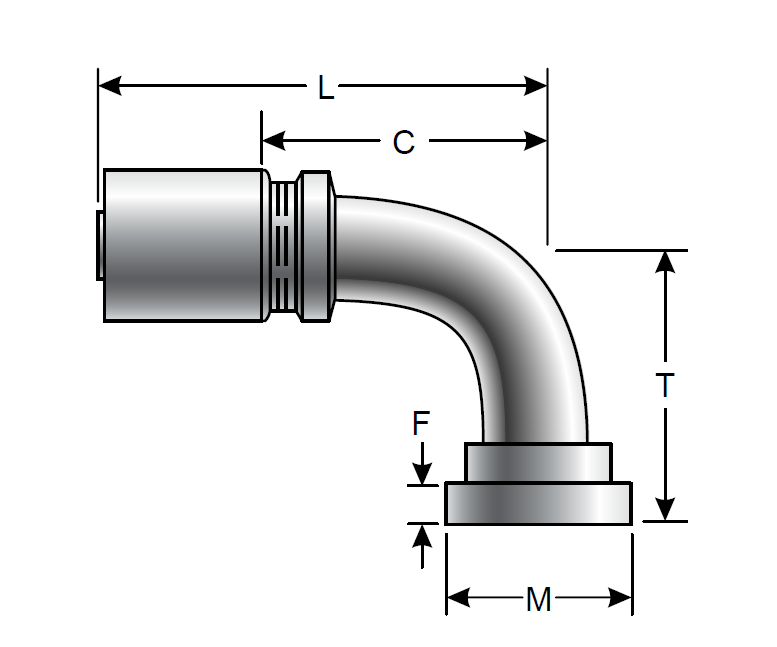

GATES MEGAVAC SAE CODE 61 90° ELBOW
SAE FLANGES CODE 61
GATES MEGAVAC SAE CODE 61 90° ELBOW
Product Data
40G4H-40FL90
Gates Code
40GL-40FL90
Nominal Flange size - A
2 1/2
Hose I.D (in)
2 1/2
Hose I.D (mm)
63.5
Dash Size
40
Length - L (mm)
204.7
Cutoff - C (mm)
142.5
Drop - T (mm)
117.4
Flange O.D - M (mm)
84.1
Thickness - F (mm)
9.7
40G4H-48FL90
Gates Code
40GL-48FL90
Nominal Flange size - A
3
Hose I.D (in)
2 1/2
Hose I.D (mm)
63.5
Dash Size
40
Length - L (mm)
206.3
Cutoff - C (mm)
144.0
Drop - T (mm)
117.4
Flange O.D - M (mm)
101.6
Thickness - F (mm)
9.7
48G4H-48FL90
Gates Code
48GL-48FL90
Nominal Flange size - A
3
Hose I.D (in)
3
Hose I.D (mm)
76.2
Dash Size
48
Length - L (mm)
246.4
Cutoff - C (mm)
168.2
Drop - T (mm)
139.7
Flange O.D - M (mm)
101.6
Thickness - F (mm)
9.7
56G4H-56FL90
Gates Code
56GL-56FL90
Nominal Flange size - A
3 1/2
Hose I.D (in)
3 1/2
Hose I.D (mm)
88.9
Dash Size
56
Length - L (mm)
258.3
Cutoff - C (mm)
165.9
Drop - T (mm)
143.0
Flange O.D - M (mm)
114.3
Thickness - F (mm)
9.7
