SUPERCAT FLANGE

SUPERCAT 22.5° ELBOW

SUPERCAT FLANGE

SUPERCAT 22.5° ELBOW

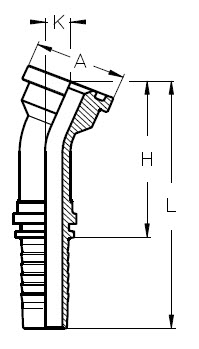

S675

SUPERCAT 22.5° ELBOW

PartNumber
Nominal SAE Flange size - A
Hose I.D (in)
Hose I.D (mm)
Dash size
Flange O.D - A (mm)
Drop - K (mm)
Cutoff - H (mm)
Length - L (mm)
Working Pressure (bar)
Working Pressure (psi)
S675-1212
3/4
3/4
19
12
41.3
16
82
118
420
6000
S675-1612
1
3/4
19
12
47.6
17
82
118
420
6000
S675-1616
1
1
25.4
16
47.6
17
97
153
420
6000
S675-2016
1 1/4
1
25.4
16
54
17
97
153
420
6000
S675-2020
1 1/4
1 1/4
31.8
20
54
16
406
172
420
6000
S675-2420
1 1/2
1 1/4
31.8
20
63.5
16
406
174
420
6000
S675-2424
1 1/2
1 1/2
38.1
24
63.5
18
125
208
420
6000
S675-3224
2
1 1/2
38.1
24
79.4
19
129
211
420
6000

Product Data

S675-1212

Nominal SAE Flange size - A

3/4

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D - A (mm)

41.3

Drop - K (mm)

16

Cutoff - H (mm)

82

Length - L (mm)

118

Working Pressure (bar)

420

Working Pressure (psi)

6000

S675-1612

Nominal SAE Flange size - A

1

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D - A (mm)

47.6

Drop - K (mm)

17

Cutoff - H (mm)

82

Length - L (mm)

118

Working Pressure (bar)

420

Working Pressure (psi)

6000

S675-1616

Nominal SAE Flange size - A

1

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Flange O.D - A (mm)

47.6

Drop - K (mm)

17

Cutoff - H (mm)

97

Length - L (mm)

153

Working Pressure (bar)

420

Working Pressure (psi)

6000

S675-2016

Nominal SAE Flange size - A

1 1/4

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Flange O.D - A (mm)

54

Drop - K (mm)

17

Cutoff - H (mm)

97

Length - L (mm)

153

Working Pressure (bar)

420

Working Pressure (psi)

6000

S675-2020

Nominal SAE Flange size - A

1 1/4

Hose I.D (in)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Flange O.D - A (mm)

54

Drop - K (mm)

16

Cutoff - H (mm)

406

Length - L (mm)

172

Working Pressure (bar)

420

Working Pressure (psi)

6000

S675-2420

Nominal SAE Flange size - A

1 1/2

Hose I.D (in)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Flange O.D - A (mm)

63.5

Drop - K (mm)

16

Cutoff - H (mm)

406

Length - L (mm)

174

Working Pressure (bar)

420

Working Pressure (psi)

6000

S675-2424

Nominal SAE Flange size - A

1 1/2

Hose I.D (in)

1 1/2

Hose I.D (mm)

38.1

Dash size

24

Flange O.D - A (mm)

63.5

Drop - K (mm)

18

Cutoff - H (mm)

125

Length - L (mm)

208

Working Pressure (bar)

420

Working Pressure (psi)

6000

S675-3224

Nominal SAE Flange size - A

2

Hose I.D (in)

1 1/2

Hose I.D (mm)

38.1

Dash size

24

Flange O.D - A (mm)

79.4

Drop - K (mm)

19

Cutoff - H (mm)

129

Length - L (mm)

211

Working Pressure (bar)

420

Working Pressure (psi)

6000
