JIC

JIC MALE STRAIGHT

JIC

JIC MALE STRAIGHT

JIC

JIC MALE STRAIGHT

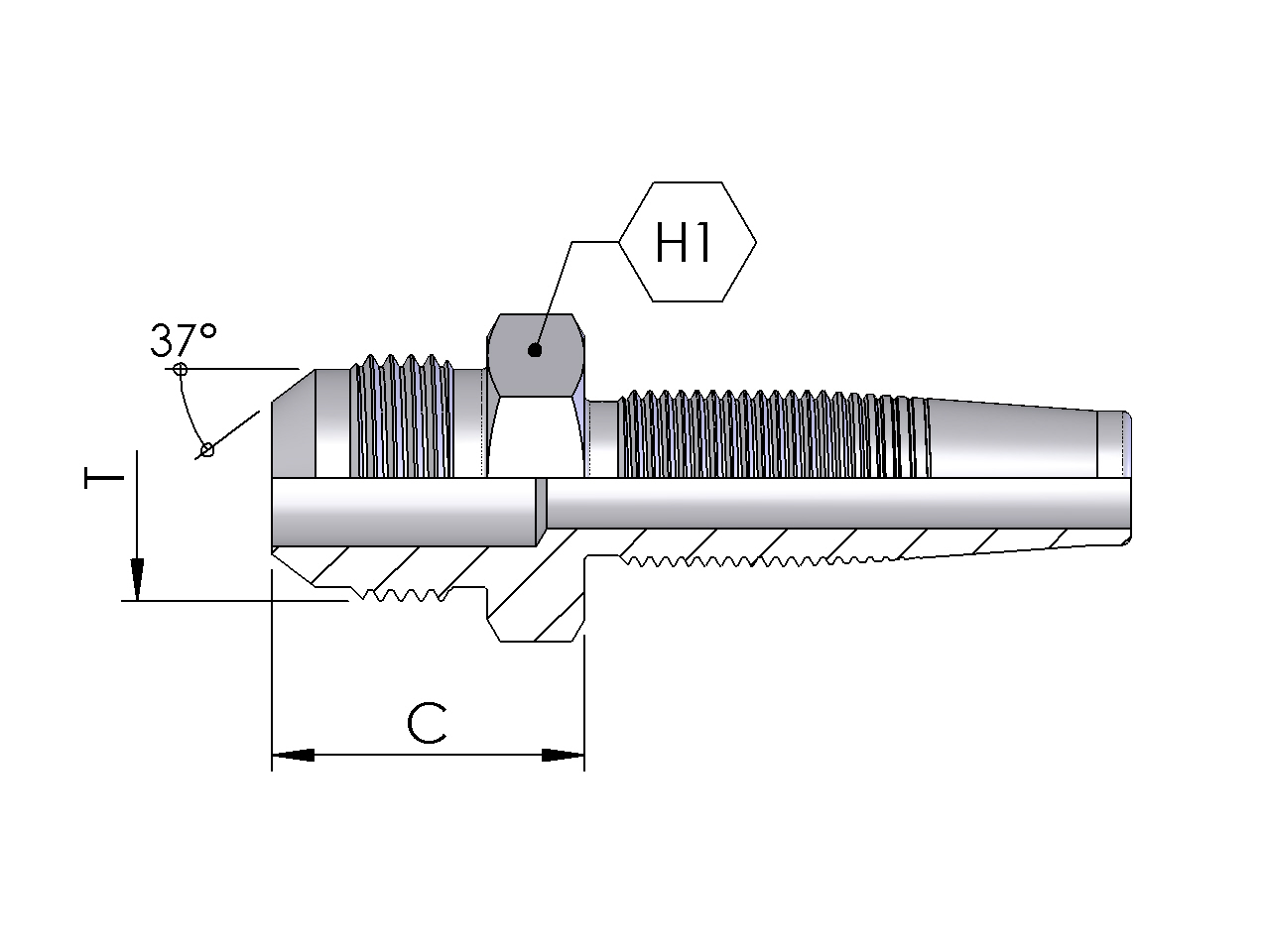

JIC MALE 37° CONE

PartNumber
JIC THREAD
Hose I.D (in)
Hose I.D (mm)
Dash size
H1 (mm)
C (mm)
F18-0704
7/16-20
1/4
6.4
04
16
20.5
F18-0904
9/16-18
1/4
6.4
04
16
20.5
F18-0906
9/16-18
3/8
9.5
06
19
22.5
F18-1206
3/4-16
3/8
9.5
06
22
24.8
F18-1208
3/4-16
1/2
12.7
08
22
24.8
F18-1408
7/8-14
1/2
12.7
08
25
27.5
F18-1410
7/8-14
5/8
15.9
10
25
27.5
F18-1712
1.1/16-12
3/4
19
12
28
31.9
F18-2116
1.5/16-12
1
25.4
16
35
24

Product Data

F18-0704

JIC THREAD

7/16-20

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

H1 (mm)

16

C (mm)

20.5

F18-0904

JIC THREAD

9/16-18

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

H1 (mm)

16

C (mm)

20.5

F18-0906

JIC THREAD

9/16-18

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

H1 (mm)

19

C (mm)

22.5

F18-1206

JIC THREAD

3/4-16

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

H1 (mm)

22

C (mm)

24.8

F18-1208

JIC THREAD

3/4-16

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

H1 (mm)

22

C (mm)

24.8

F18-1408

JIC THREAD

7/8-14

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

H1 (mm)

25

C (mm)

27.5

F18-1410

JIC THREAD

7/8-14

Hose I.D (in)

5/8

Hose I.D (mm)

15.9

Dash size

10

H1 (mm)

25

C (mm)

27.5

F18-1712

JIC THREAD

1.1/16-12

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

H1 (mm)

28

C (mm)

31.9

F18-2116

JIC THREAD

1.5/16-12

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

H1 (mm)

35

C (mm)

24
