Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.
Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.
The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.
To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.
AUTOMOTIVE HOSE
FUEL LINE
AUTOMOTIVE HOSE
FUEL LINE
27000FUEL

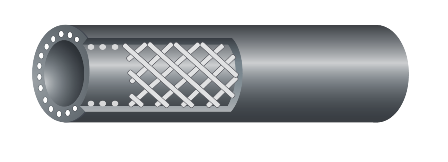

FUEL LINE
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: Use on fuel lines, PCV and EEC systems, and for fuel return hose connections on diesel fuel injection systems.
- Approved for use with leaded and unleaded petrol, diesel, methanol, and ethers.
- Internal tube: Nitrile.
- Reinforcement: Spiral reinforced construction.
- External cover: Oil resistant NBR/PVC cover.
- Temperature: -40°C to 125°C with gasoline blends.
- Standards: Meets SAE 30R6 and 30R7.
FUEL LINE SAE 30R6 AND 30R7
Product Data
27000
Internal Size
1/8
Internal Diameter (mm)
3.2
Working Pressure (psi)
50
Working pressure (bar)
4
27001
Internal Size
3/16
Internal Diameter (mm)
4.8
Working Pressure (psi)
50
Working pressure (bar)
4
27002
Internal Size
1/4
Internal Diameter (mm)
6.3
Working Pressure (psi)
50
Working pressure (bar)
4
27003
Internal Size
5/16
Internal Diameter (mm)
8
Working Pressure (psi)
50
Working pressure (bar)
4
27004
Internal Size
3/8
Internal Diameter (mm)
9.5
Working Pressure (psi)
50
Working pressure (bar)
4
27005
Internal Size
7/16
Internal Diameter (mm)
11.1
Working Pressure (psi)
35
Working pressure (bar)
2.4
27006
Internal Size
1/2
Internal Diameter (mm)
12.7
Working Pressure (psi)
35
Working pressure (bar)
2.4
27008
Internal Size
5/8
Internal Diameter (mm)
15.9
Working Pressure (psi)
35
Working pressure (bar)
2.4
27010
Internal Size
3/4
Internal Diameter (mm)
19
Working Pressure (psi)
35
Working pressure (bar)
2.4
INTRODUCING NEW ENDURO SPIRAL HOSE
ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
