EXTREMELY HIGH PRESSURE HOSE

Product catalogue Hydraulic Hose EXTREMELY HIGH PRESSURE HOSE FOUR/SIX SPIRAL WIRE HOSE

FOUR/SIX SPIRAL WIRE HOSE

EXTREMELY HIGH PRESSURE HOSE

FOUR/SIX SPIRAL WIRE HOSE

EFG6K

FOUR/SIX SPIRAL WIRE HOSE

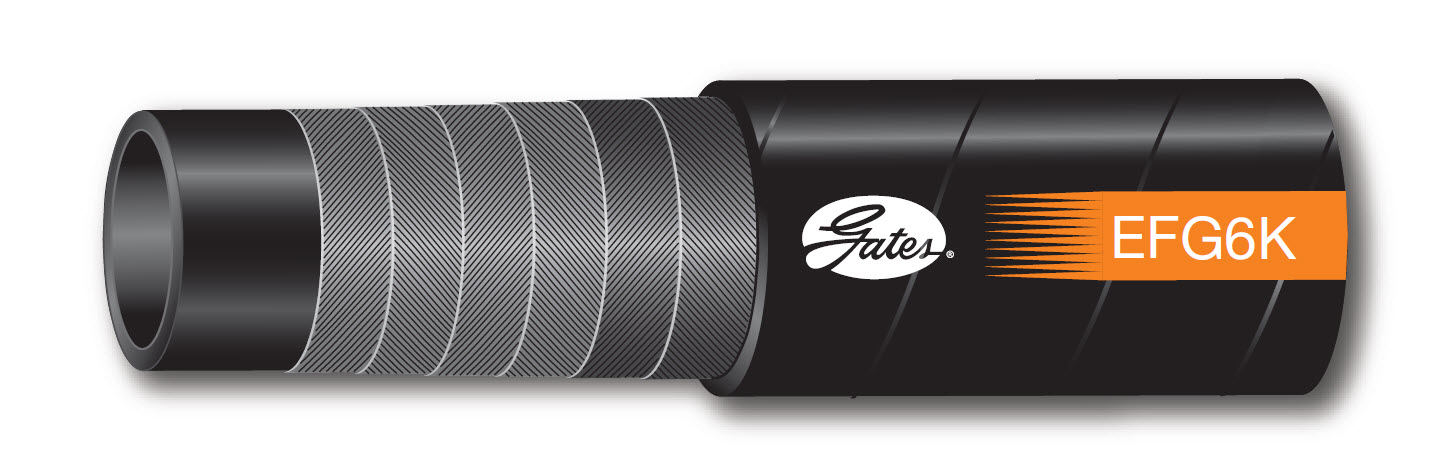

SPIRAL WIRE REINFORCED HOSE - SAE 100R15

  • Due to manufacturing tolerances, external dimension is an average.
  • Recommended for: Extremely high pressure and high impulse hydraulic applications.
  • Internal tube: -6, -8, -10, -12, -16, -20: Nitrile based; -24: Neoprene based.
  • Reinforcement: Four (six for -20, -24) alternating layers of spiralled, high tensile steel wire.
  • External cover: Neoprene based, MSHA approved.
  • Temperature range: -40°C to +121°C
  • Standards: SAE 100R15. Meets or exceeds performance requirements of EN 856 4SP (-8) and EN 856 4SH (-12, -16)
  • Characteristics: Extremely flexible. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils and petroleum-based fluids in sizes -06 to -20 (not -24)
  • Optional: EFG6K-MTF: the range of EFG6K is also available with the Gates special MegaTuff™ cover which offers 300 times the abrasion resistance of the standard cover as per ISO 6945, superior ozone/weathering resistance - please contact Hydraulink for further details and availability.

SPIRAL WIRE REINFORCED HOSE - SAE 100R15

Download PDF
PartNumber
Internal Size
Internal DN
Internal Diameter (in)
External Diameter (mm)
Working Pressure (psi)
Working pressure (bar)
Min burst pressure (psi)
Min burst pressure (bar)
Min bend radius (mm)
6EFG6K
06
10
3/8
20.5
6000
420
24000
1680
65
8EFG6K
08
12
1/2
24.0
6000
420
24000
1680
90
10EFG6K
10
16
5/8
27.6
6000
420
24000
1680
100
12EFG6K
12
19
3/4
31.4
6000
420
24000
1680
120
16EFG6K
16
25
1
38.7
6000
420
24000
1680
150
20EFG6K
20
31
1.1/4
50.0
6000
420
24000
1680
210
24EFG6K
24
38
1.1/2
57.4
6000
420
24000
1680
250
32EFG6K
32
51
2
71.1
6000
420
24000
1680
635

Product Data

6EFG6K

Internal Size

06

Internal DN

10

Internal Diameter (in)

3/8

External Diameter (mm)

20.5

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

65

8EFG6K

Internal Size

08

Internal DN

12

Internal Diameter (in)

1/2

External Diameter (mm)

24.0

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

90

10EFG6K

Internal Size

10

Internal DN

16

Internal Diameter (in)

5/8

External Diameter (mm)

27.6

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

100

12EFG6K

Internal Size

12

Internal DN

19

Internal Diameter (in)

3/4

External Diameter (mm)

31.4

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

120

16EFG6K

Internal Size

16

Internal DN

25

Internal Diameter (in)

1

External Diameter (mm)

38.7

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

150

20EFG6K

Internal Size

20

Internal DN

31

Internal Diameter (in)

1.1/4

External Diameter (mm)

50.0

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

210

24EFG6K

Internal Size

24

Internal DN

38

Internal Diameter (in)

1.1/2

External Diameter (mm)

57.4

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

250

32EFG6K

Internal Size

32

Internal DN

51

Internal Diameter (in)

2

External Diameter (mm)

71.1

Working Pressure (psi)

6000

Working pressure (bar)

420

Min burst pressure (psi)

24000

Min burst pressure (bar)

1680

Min bend radius (mm)

635
