Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

  • Product Catalogue
  • Promotions
  • Our Quality
  • Safety Data Sheets

FIRE SUPPRESSION HOSE

ONE WIRE BRAID HOSE

FIRE SUPPRESSION HOSE

ONE WIRE BRAID HOSE

FIRE SUPPRESSION HOSE

ONE WIRE BRAID HOSE

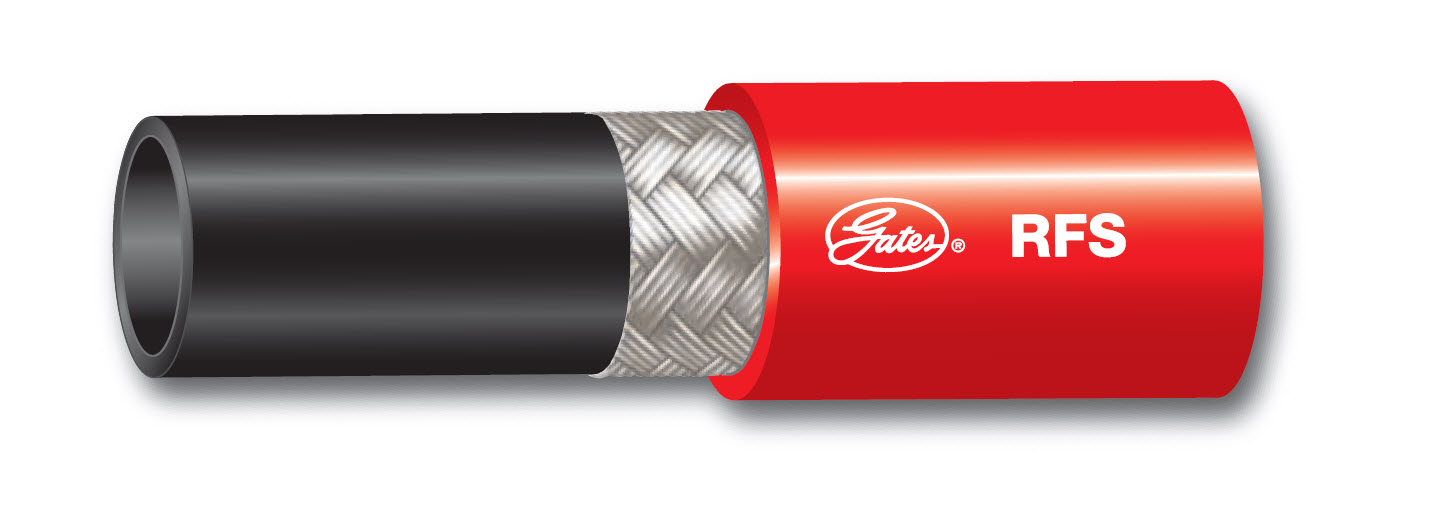

RED FIRE SUPPRESSANT BRAIDED WIRE REINFORCED HOSE - SAE 100R1 Type AT

PartNumber
Internal Size
Internal DN
Internal Diameter (in)
External Diameter (mm)
Working Pressure (psi)
Working pressure (bar)
Min burst pressure (psi)
Min burst pressure (bar)
Min bend radius (mm)
3RFS
03
5
3/16
11.4
3000
205
12000
820
75
4RFS
04
6
1/4
13.5
2750
190
11000
760
100
6RFS
06
10
3/8
17.3
2250
155
9000
620
130
8RFS
08
12
1/2
20.3
2000
140
8000
560
180
12RFS
12
19
3/4
27.7
1250
85
5000
340
240

Product Data

3RFS

Internal Size

03

Internal DN

5

Internal Diameter (in)

3/16

External Diameter (mm)

11.4

Working Pressure (psi)

3000

Working pressure (bar)

205

Min burst pressure (psi)

12000

Min burst pressure (bar)

820

Min bend radius (mm)

75

4RFS

Internal Size

04

Internal DN

6

Internal Diameter (in)

1/4

External Diameter (mm)

13.5

Working Pressure (psi)

2750

Working pressure (bar)

190

Min burst pressure (psi)

11000

Min burst pressure (bar)

760

Min bend radius (mm)

100

6RFS

Internal Size

06

Internal DN

10

Internal Diameter (in)

3/8

External Diameter (mm)

17.3

Working Pressure (psi)

2250

Working pressure (bar)

155

Min burst pressure (psi)

9000

Min burst pressure (bar)

620

Min bend radius (mm)

130

8RFS

Internal Size

08

Internal DN

12

Internal Diameter (in)

1/2

External Diameter (mm)

20.3

Working Pressure (psi)

2000

Working pressure (bar)

140

Min burst pressure (psi)

8000

Min burst pressure (bar)

560

Min bend radius (mm)

180

12RFS

Internal Size

12

Internal DN

19

Internal Diameter (in)

3/4

External Diameter (mm)

27.7

Working Pressure (psi)

1250

Working pressure (bar)

85

Min burst pressure (psi)

5000

Min burst pressure (bar)

340

Min bend radius (mm)

240

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
