HIGH PRESSURE HOSE
TWO WIRE BRAID SLIMLINE HOSE - MTF COVER
HIGH PRESSURE HOSE
TWO WIRE BRAID SLIMLINE HOSE - MTF COVER

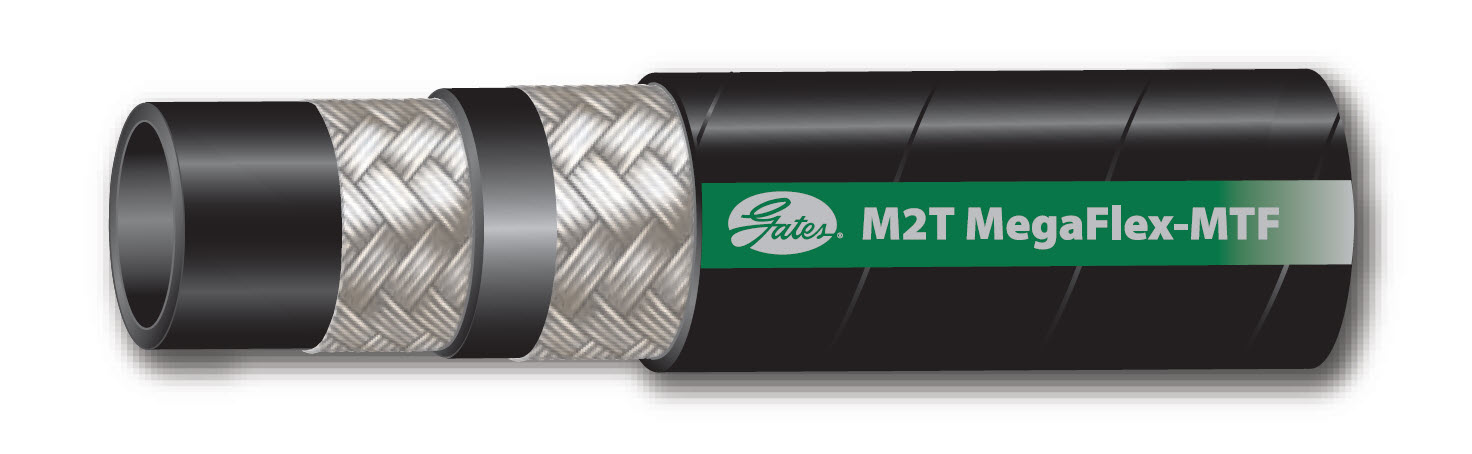

M2T-MTF
TWO WIRE BRAID SLIMLINE HOSE - MTF COVER
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: High pressure hydraulic applications. Easy to route and to install in tight areas.
- Internal tube: Nitrile based.
- Reinforcement: Two braids of high tensile steel wire.
- External cover: NBR/PVC based MegaTuff (MTF) abrasion resistant. MSHA approved. Dual green stripe layline.
- Temperature range: -40°C to +100°C.
- Standards: Gates proprietary. Exceeds SAE 100R16.
- Characteristics: M2T hose has smaller exterior dimensions and significantly tighter bend radius than specified in SAE 100R16.
- Optional: M2T-MTF: the range of M2T is also available with the Gates special MegaTuff™ cover which offers 300 times the abrasion resistance of the standard cover as per ISO 6945, superior ozone/weathering resistance - please contact Hydraulink for further details and availability.
BRAIDED WIRE REINFORCED HOSE - SAE 100R16 MEGATUFF COVER
Product Data
4M2T-MTF
Internal Size
04
Internal DN
6
Internal Diameter (in)
1/4
External Diameter (mm)
13.7
Working Pressure - psi
6000
Working pressure - bar
420
Min burst pressure - psi
24000
Min burst pressure - bar
1680
Min bend radius (mm)
38
6M2T-MTF
Internal Size
06
Internal DN
10
Internal Diameter (in)
3/8
External Diameter (mm)
17.5
Working Pressure - psi
5000
Working pressure - bar
350
Min burst pressure - psi
20000
Min burst pressure - bar
1400
Min bend radius (mm)
50
8M2T-MTF
Internal Size
08
Internal DN
12
Internal Diameter (in)
1/2
External Diameter (mm)
20.6
Working Pressure - psi
4300
Working pressure - bar
300
Min burst pressure - psi
7200
Min burst pressure - bar
1200
Min bend radius (mm)
71
10M2T-MTF
Internal Size
10
Internal DN
16
Internal Diameter (in)
5/8
External Diameter (mm)
24.1
Working Pressure - psi
3800
Working pressure - bar
260
Min burst pressure - psi
15200
Min burst pressure - bar
1040
Min bend radius (mm)
76
12M2T-MTF
Internal Size
12
Internal DN
19
Internal Diameter (in)
3/4
External Diameter (mm)
27.9
Working Pressure - psi
3500
Working pressure - bar
240
Min burst pressure - psi
14000
Min burst pressure - bar
960
Min bend radius (mm)
96
16M2T-MTF
Internal Size
16
Internal DN
25
Internal Diameter (in)
1
External Diameter (mm)
35.1
Working Pressure - psi
2500
Working pressure - bar
140
Min burst pressure - psi
10000
Min burst pressure - bar
560
Min bend radius (mm)
114
