HIGH PRESSURE HOSE
TWO WIRE BRAID HOSE
HIGH PRESSURE HOSE
TWO WIRE BRAID HOSE

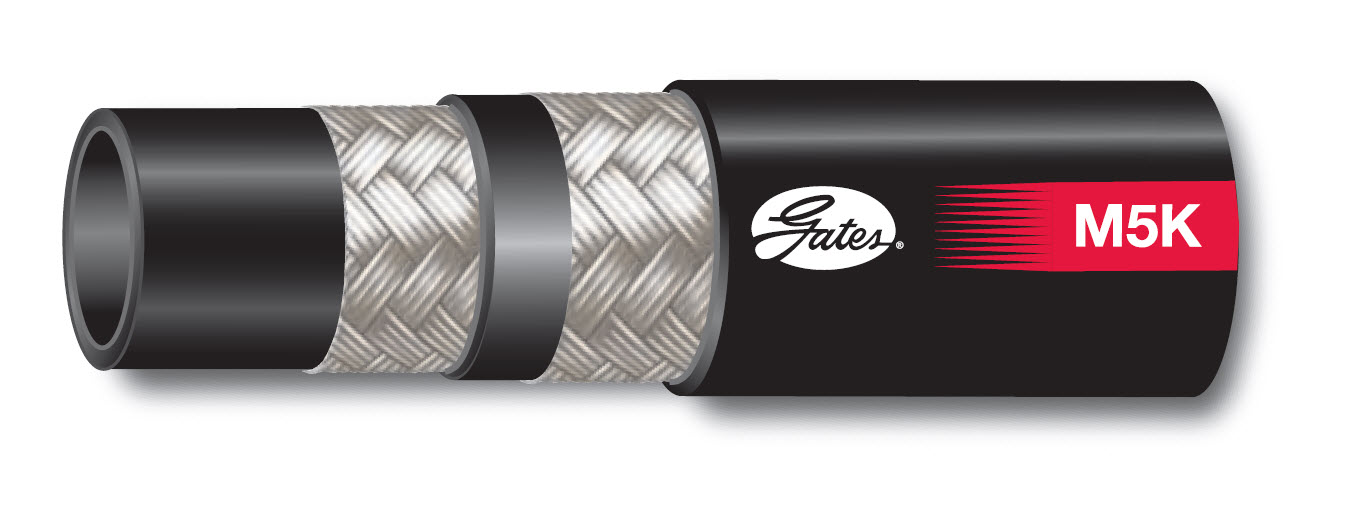

M5K
TWO WIRE BRAID HOSE
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: High pressure hydraulic applications. Easy to route and to install in tight areas.
- Internal tube: Nitrile based.
- Reinforcement: Two braids of high tensile steel wire.
- External cover: NBR/PVC based. MSHA approved.
- Temperature range: -40°C to +100°C constant and +121°C intermittent.
- Standards: Exceeds ISO 18752 Grade B.
- Characteristics: Alternative to spiral hoses in high pressure lines where flexibility is required. M5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
BRAIDED WIRE REINFORCED HOSE - 5000PSI
Product Data
4M5K
Internal Size
04
Internal DN
6
Internal Diameter (in)
1/4
External Diameter (mm)
14
Working Pressure (psi)
5000
Working pressure (bar)
350
Min burst pressure (psi)
20000
Min burst pressure (bar)
1400
Min bend radius (mm)
50
6M5K
Internal Size
06
Internal DN
10
Internal Diameter (in)
3/8
External Diameter (mm)
17.8
Working Pressure (psi)
5000
Working pressure (bar)
350
Min burst pressure (psi)
20000
Min burst pressure (bar)
1400
Min bend radius (mm)
63
8M5K
Internal Size
08
Internal DN
12
Internal Diameter (in)
1/2
External Diameter (mm)
21.6
Working Pressure (psi)
5000
Working pressure (bar)
350
Min burst pressure (psi)
20000
Min burst pressure (bar)
1400
Min bend radius (mm)
89
