LOW PRESSURE HOSE

Product catalogue Hydraulic Hose LOW PRESSURE HOSE MultiMaster® RETURN AND SUCTION

MultiMaster® RETURN AND SUCTION

LOW PRESSURE HOSE

MultiMaster® RETURN AND SUCTION

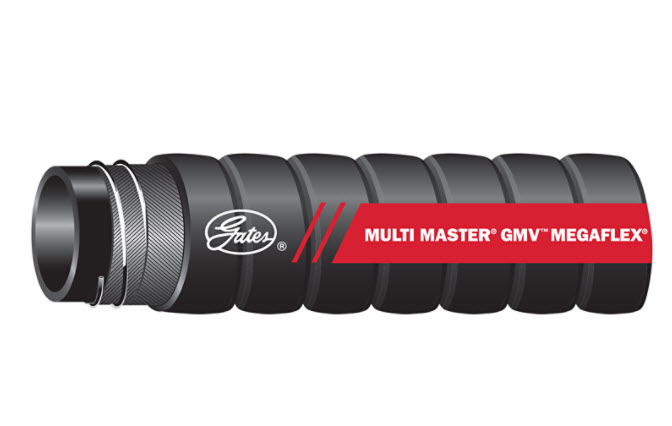

GMV-MEGAFLEX

MultiMaster® RETURN AND SUCTION

FIBRE AND WIRE REINFORCED HOSE - SAE 100R4

  • Due to manufacturing tolerances, the external dimension is an average.
  • Recommended for: Petroleum and water based hydraulic fluids in suction lines or in low pressure return lines.
  • Internal tube: Nitrile based.
  • Reinforcement: Synthetic high tensile steel wire helix.
  • External cover: Black corrugated chloroprene. MSHA approved.
  • Temperature range: -40°C to +135°C constant and +150°C intermittent.
  • Vacuum range: to 25In.Hg (635mm.Hg) for all sizes.
  • Standards: Gates proprietary. SAE 100R4.
  • Characteristics: Extremely flexible and lightweight.

FIBRE AND WIRE REINFORCED HOSE - SAE 100R4

Download PDF
PartNumber
Internal Size
Internal DN
Internal Diameter (in)
External Diameter (mm)
Working Pressure (psi)
Working pressure (bar)
Min burst pressure (psi)
Min burst pressure (bar)
Min bend radius (mm)
12GMV-MEGAFLEX
12
19
3/4
30.5
350
24
1400
96
20.3
16GMV-MEGAFLEX
16
25
1
35.8
300
21
1200
84
25.4
20GMV-MEGAFLEX
20
31
1.1/4
42.2
250
17
1000
68
33.0
24GMV-MEGAFLEX
24
38
1.1/2
48.3
160
11
640
44
38.1
32GMV-MEGAFLEX
32
51
2
60.7
150
10
600
40
50.8
40GMV-MEGAFLEX
40
63
2.1/2
74.7
150
10
600
40
63.5
48GMV-MEGAFLEX
48
76
3
87.4
150
10
600
40
76.2
64GMV-MEGAFLEX
64
102
4
166.4
150
10
600
40
152.4

Product Data

12GMV-MEGAFLEX

Internal Size

12

Internal DN

19

Internal Diameter (in)

3/4

External Diameter (mm)

30.5

Working Pressure (psi)

350

Working pressure (bar)

24

Min burst pressure (psi)

1400

Min burst pressure (bar)

96

Min bend radius (mm)

20.3

16GMV-MEGAFLEX

Internal Size

16

Internal DN

25

Internal Diameter (in)

1

External Diameter (mm)

35.8

Working Pressure (psi)

300

Working pressure (bar)

21

Min burst pressure (psi)

1200

Min burst pressure (bar)

84

Min bend radius (mm)

25.4

20GMV-MEGAFLEX

Internal Size

20

Internal DN

31

Internal Diameter (in)

1.1/4

External Diameter (mm)

42.2

Working Pressure (psi)

250

Working pressure (bar)

17

Min burst pressure (psi)

1000

Min burst pressure (bar)

68

Min bend radius (mm)

33.0

24GMV-MEGAFLEX

Internal Size

24

Internal DN

38

Internal Diameter (in)

1.1/2

External Diameter (mm)

48.3

Working Pressure (psi)

160

Working pressure (bar)

11

Min burst pressure (psi)

640

Min burst pressure (bar)

44

Min bend radius (mm)

38.1

32GMV-MEGAFLEX

Internal Size

32

Internal DN

51

Internal Diameter (in)

2

External Diameter (mm)

60.7

Working Pressure (psi)

150

Working pressure (bar)

10

Min burst pressure (psi)

600

Min burst pressure (bar)

40

Min bend radius (mm)

50.8

40GMV-MEGAFLEX

Internal Size

40

Internal DN

63

Internal Diameter (in)

2.1/2

External Diameter (mm)

74.7

Working Pressure (psi)

150

Working pressure (bar)

10

Min burst pressure (psi)

600

Min burst pressure (bar)

40

Min bend radius (mm)

63.5

48GMV-MEGAFLEX

Internal Size

48

Internal DN

76

Internal Diameter (in)

3

External Diameter (mm)

87.4

Working Pressure (psi)

150

Working pressure (bar)

10

Min burst pressure (psi)

600

Min burst pressure (bar)

40

Min bend radius (mm)

76.2

64GMV-MEGAFLEX

Internal Size

64

Internal DN

102

Internal Diameter (in)

4

External Diameter (mm)

166.4

Working Pressure (psi)

150

Working pressure (bar)

10

Min burst pressure (psi)

600

Min burst pressure (bar)

40

Min bend radius (mm)

152.4
