Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

  • Product Catalogue
  • Promotions
  • Our Quality
  • Safety Data Sheets

MEDIUM PRESSURE HOSE

HIGH TEMP. OIL/AIR RETURN

MEDIUM PRESSURE HOSE

HIGH TEMP. OIL/AIR RETURN

MEDIUM PRESSURE HOSE

HIGH TEMP. OIL/AIR RETURN

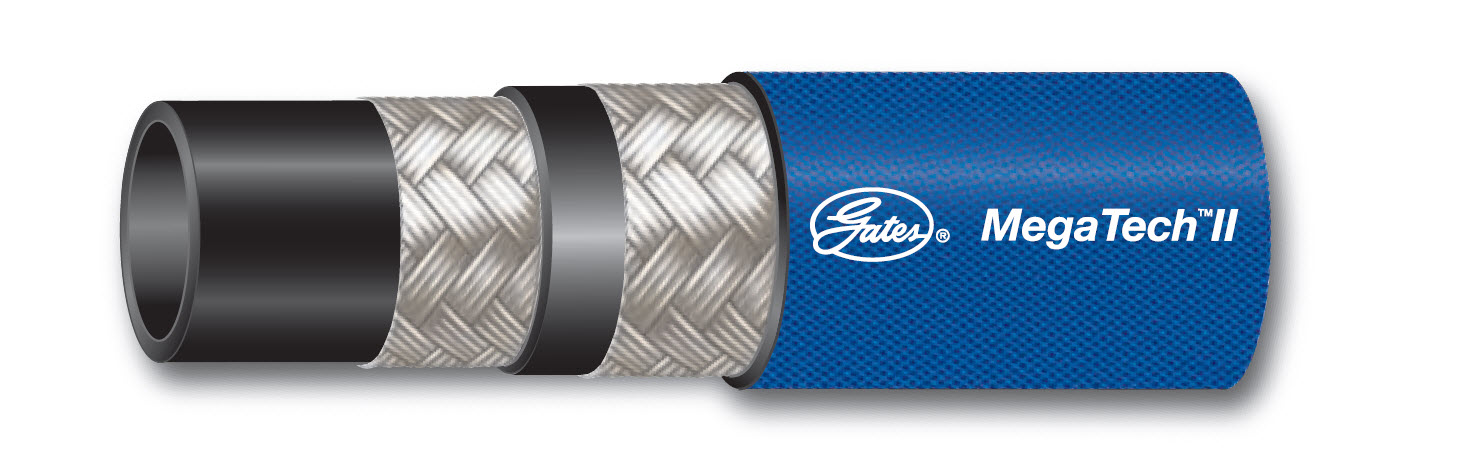

BRAIDED WIRE REINFORCED HOSE - FABRIC COVER

PartNumber
Internal Size
Internal DN
Internal Diameter (in)
External Diameter (mm)
Working Pressure (psi)
Working pressure (bar)
Min burst pressure (psi)
Min burst pressure (bar)
Min bend radius (mm)
24ACP
24
38
1.1/2
54.1
1500
105
6000
420
508
32ACP
32
51
2
66.3
1300
90
5200
360
635

Product Data

24ACP

Internal Size

24

Internal DN

38

Internal Diameter (in)

1.1/2

External Diameter (mm)

54.1

Working Pressure (psi)

1500

Working pressure (bar)

105

Min burst pressure (psi)

6000

Min burst pressure (bar)

420

Min bend radius (mm)

508

32ACP

Internal Size

32

Internal DN

51

Internal Diameter (in)

2

External Diameter (mm)

66.3

Working Pressure (psi)

1300

Working pressure (bar)

90

Min burst pressure (psi)

5200

Min burst pressure (bar)

360

Min bend radius (mm)

635

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
