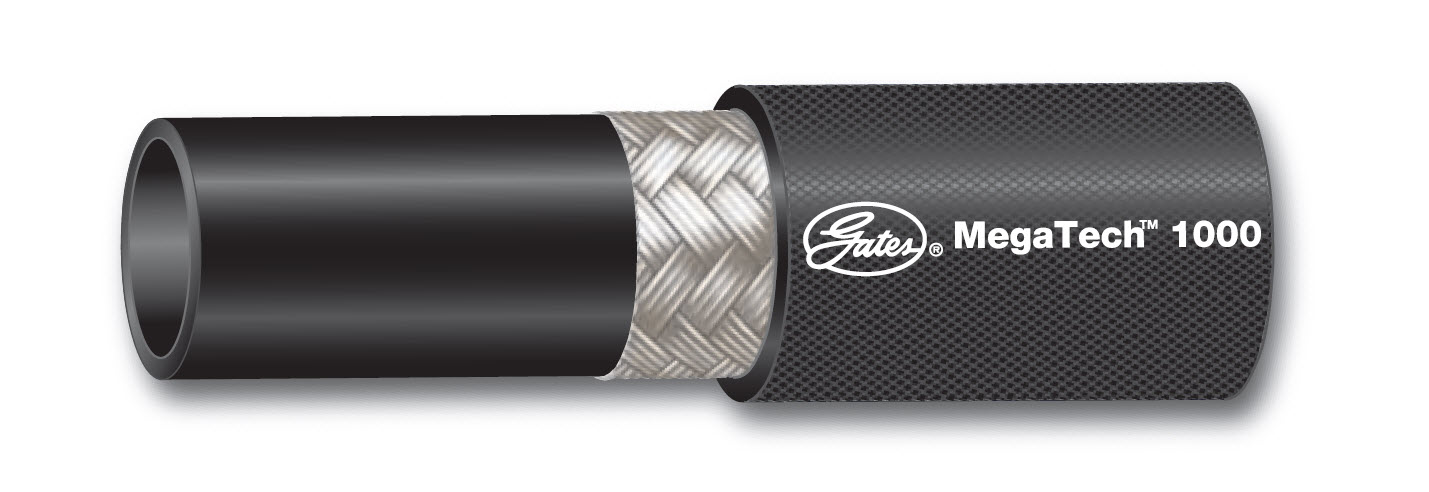

ACR
HIGH TEMP. OIL/AIR RETURN
- Due to manufacturing tolerances, the external dimension is an average.
- For -24 and 32 sizes please see alternative ACP series.
- Recommended for: Pressurised hot oil return lines and air compressor lines, power steering, tilt cab cylinders, engine and transmission coolant and filtration lines.
- Internal tube: CPE based.
- Reinforcement: One braid of high tensile steel wire.
- External cover: Oil resistant textile braid, impregnated with synthetic rubber. MSHA approved.
- Temperature range: -40°C to +150°C. Phosphate ester fluids: -40°C to +100°C.
- Air: -40°C to +121°C.
- Vacuum range: To 30In.Hg (760mm.Hg)
- Standards: Gates proprietary. Meets the requirements of SAE J1019 performance specifications for use in high temperature transmission oil systems and high temperature lubrication oil systems using petroleum based oils.
- Characteristics: Very good resistance to weathering and ozone. ACR hose is compatible with a variety of fluids such as hydraulic oil, phosphate esters.
BRAIDED WIRE REINFORCED HOSE - FABRIC COVER
Product Data
24ACR500
Internal Size
24
Internal DN
38
Internal Diameter (in)
1.1/2
External Diameter (mm)
49.5
Working Pressure (psi)
500
Working pressure (bar)
35
Min burst pressure (psi)
2000
Min burst pressure (bar)
140
Min bend radius (mm)
380
32ACR500
Internal Size
32
Internal DN
51
Internal Diameter (in)
2
External Diameter (mm)
63.0
Working Pressure (psi)
500
Working pressure (bar)
35
Min burst pressure (psi)
2000
Min burst pressure (bar)
140
Min bend radius (mm)
460
40ACR500
Internal Size
40
Internal DN
63
Internal Diameter (in)
2.1/2
External Diameter (mm)
75.4
Working Pressure (psi)
500
Working pressure (bar)
35
Min burst pressure (psi)
2000
Min burst pressure (bar)
140
Min bend radius (mm)
560
48ACR500
Internal Size
48
Internal DN
76
Internal Diameter (in)
3
External Diameter (mm)
88.9
Working Pressure (psi)
500
Working pressure (bar)
35
Min burst pressure (psi)
2000
Min burst pressure (bar)
140
Min bend radius (mm)
610
