MEDIUM PRESSURE HOSE
ONE WIRE BRAID HOSE
MEDIUM PRESSURE HOSE
ONE WIRE BRAID HOSE
G1

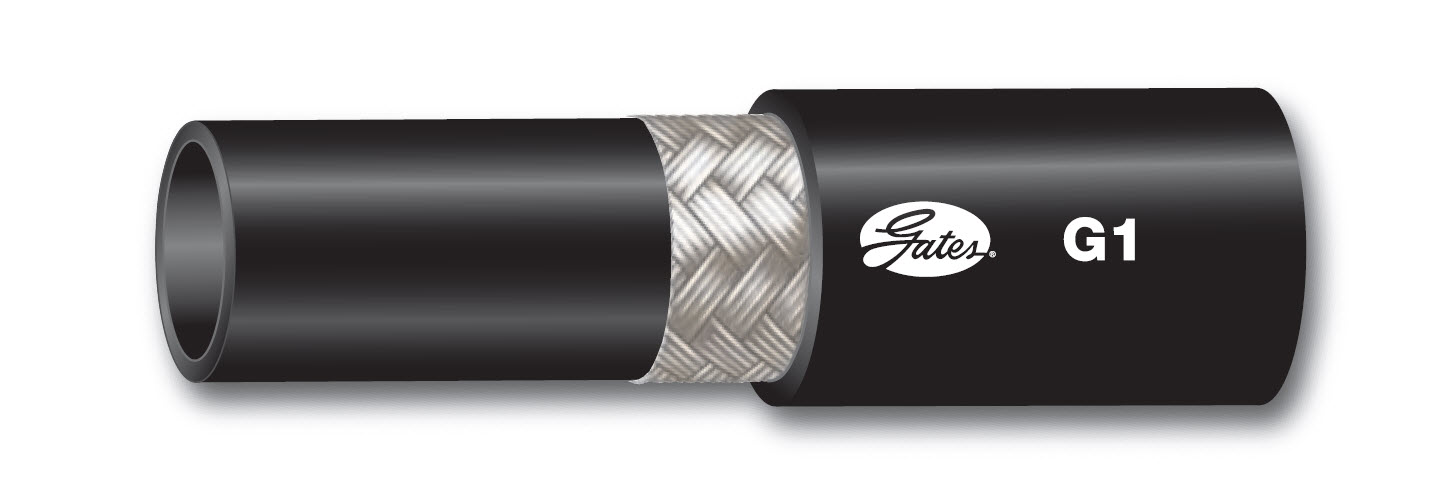

ONE WIRE BRAID HOSE
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: Medium pressure hydraulic applications.
- Internal tube: Nitrile based.
- Reinforcement: One braid of high tensile steel wire.
- External cover: NBR/PVC based. MSHA approved.
- Temperature range: -40°C to +100°C constant and +121°C intermittent.
- Standards: SAE 100R1AT. SAE 100R1S. EN 853 1SN. ISO 1436.
- Characteristics: G1 hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
BRAIDED WIRE REINFORCED HOSE - SAE 100R1 Type AT
Product Data
3G1
Internal Size
03
Internal DN
5
Internal Diameter (in)
3/16
External Diameter (mm)
11.9
Working Pressure (psi)
3625
Working pressure (bar)
250
Min burst pressure (psi)
14500
Min burst pressure (bar)
1000
Min bend radius (mm)
100
4G1
Internal Size
04
Internal DN
6
Internal Diameter (in)
1/4
External Diameter (mm)
13.5
Working Pressure (psi)
3275
Working pressure (bar)
225
Min burst pressure (psi)
13100
Min burst pressure (bar)
900
Min bend radius (mm)
100
5G1
Internal Size
05
Internal DN
8
Internal Diameter (in)
5/16
External Diameter (mm)
15.0
Working Pressure (psi)
3125
Working pressure (bar)
215
Min burst pressure (psi)
12500
Min burst pressure (bar)
860
Min bend radius (mm)
110
6G1
Internal Size
06
Internal DN
10
Internal Diameter (in)
3/8
External Diameter (mm)
17.5
Working Pressure (psi)
2600
Working pressure (bar)
180
Min burst pressure (psi)
10400
Min burst pressure (bar)
720
Min bend radius (mm)
130
8G1
Internal Size
08
Internal DN
12
Internal Diameter (in)
1/2
External Diameter (mm)
20.8
Working Pressure (psi)
2325
Working pressure (bar)
160
Min burst pressure (psi)
9300
Min burst pressure (bar)
640
Min bend radius (mm)
180
10G1
Internal Size
10
Internal DN
16
Internal Diameter (in)
5/8
External Diameter (mm)
23.9
Working Pressure (psi)
1900
Working pressure (bar)
130
Min burst pressure (psi)
7600
Min burst pressure (bar)
520
Min bend radius (mm)
200
12G1
Internal Size
12
Internal DN
19
Internal Diameter (in)
3/4
External Diameter (mm)
27.9
Working Pressure (psi)
1525
Working pressure (bar)
105
Min burst pressure (psi)
6100
Min burst pressure (bar)
420
Min bend radius (mm)
240
16G1
Internal Size
16
Internal DN
25
Internal Diameter (in)
1
External Diameter (mm)
35.8
Working Pressure (psi)
1275
Working pressure (bar)
90
Min burst pressure (psi)
5100
Min burst pressure (bar)
360
Min bend radius (mm)
300
20G1
Internal Size
20
Internal DN
31
Internal Diameter (in)
1.1/4
External Diameter (mm)
43.4
Working Pressure (psi)
925
Working pressure (bar)
63
Min burst pressure (psi)
3700
Min burst pressure (bar)
252
Min bend radius (mm)
420
24G1
Internal Size
24
Internal DN
38
Internal Diameter (in)
1.1/2
External Diameter (mm)
49.8
Working Pressure (psi)
725
Working pressure (bar)
50
Min burst pressure (psi)
2900
Min burst pressure (bar)
200
Min bend radius (mm)
510
32G1
Internal Size
32
Internal DN
51
Internal Diameter (in)
2
External Diameter (mm)
64
Working Pressure (psi)
600
Working pressure (bar)
40
Min burst pressure (psi)
2400
Min burst pressure (bar)
168
Min bend radius (mm)
635
INTRODUCING NEW ENDURO SPIRAL HOSE
ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
