PAINTSPRAY HOSE
ONE WIRE BRAID THERMOPLASTIC
PAINTSPRAY HOSE
ONE WIRE BRAID THERMOPLASTIC

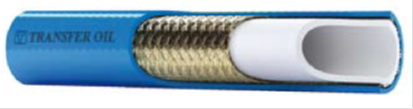

PS1B
ONE WIRE BRAID THERMOPLASTIC
- Due to manufacturing tolerances, the external dimension is an average.
- Recommended for: Airless paint spray systems or applications requiring high chemical resistance to solvents and aggressive fluids.
- Internal tube: Polyamide PA6.
- Reinforcement: One braid of high tensile steel wire.
- External cover: Polyurethane, blue, non-pinpricked, black ink-jet branding.
- Temperature range: -40 °C to +100 °C, limited to +70 °C for air and water-based fluids.
- Characteristics: PS1B is a high pressure hose with blue cover, particularly designed for paint spray and solvent applications with increased resistance to abrasion, mechanical strength and providing electrical conductivity. Due to low dissipation rate of tube, the hose is also suitable for many industrial gases (check for compatibility).
BRAIDED WIRE REINFORCED HOSE FOR PAINT/SOLVENTS
Product Data
4PS1B
Internal Size
04
Internal DN
6
Internal Diameter (in)
1/4
External Diameter (mm)
11.6
Working Pressure (psi)
4400
Working pressure (bar)
310
Min burst pressure (psi)
12000
Min burst pressure (bar)
840
Min bend radius (mm)
40
6PS1B
Internal Size
06
Internal DN
10
Internal Diameter (in)
3/8
External Diameter (mm)
15.5
Working Pressure (psi)
3200
Working pressure (bar)
225
Min burst pressure (psi)
12800
Min burst pressure (bar)
900
Min bend radius (mm)
65
