Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

  • Product Catalogue
  • Promotions
  • Our Quality
  • Safety Data Sheets

FIRE SUPPRESSION HOSE

ONE WIRE BRAID HOSE

FIRE SUPPRESSION HOSE

ONE WIRE BRAID HOSE

FIRE SUPPRESSION HOSE

ONE WIRE BRAID HOSE

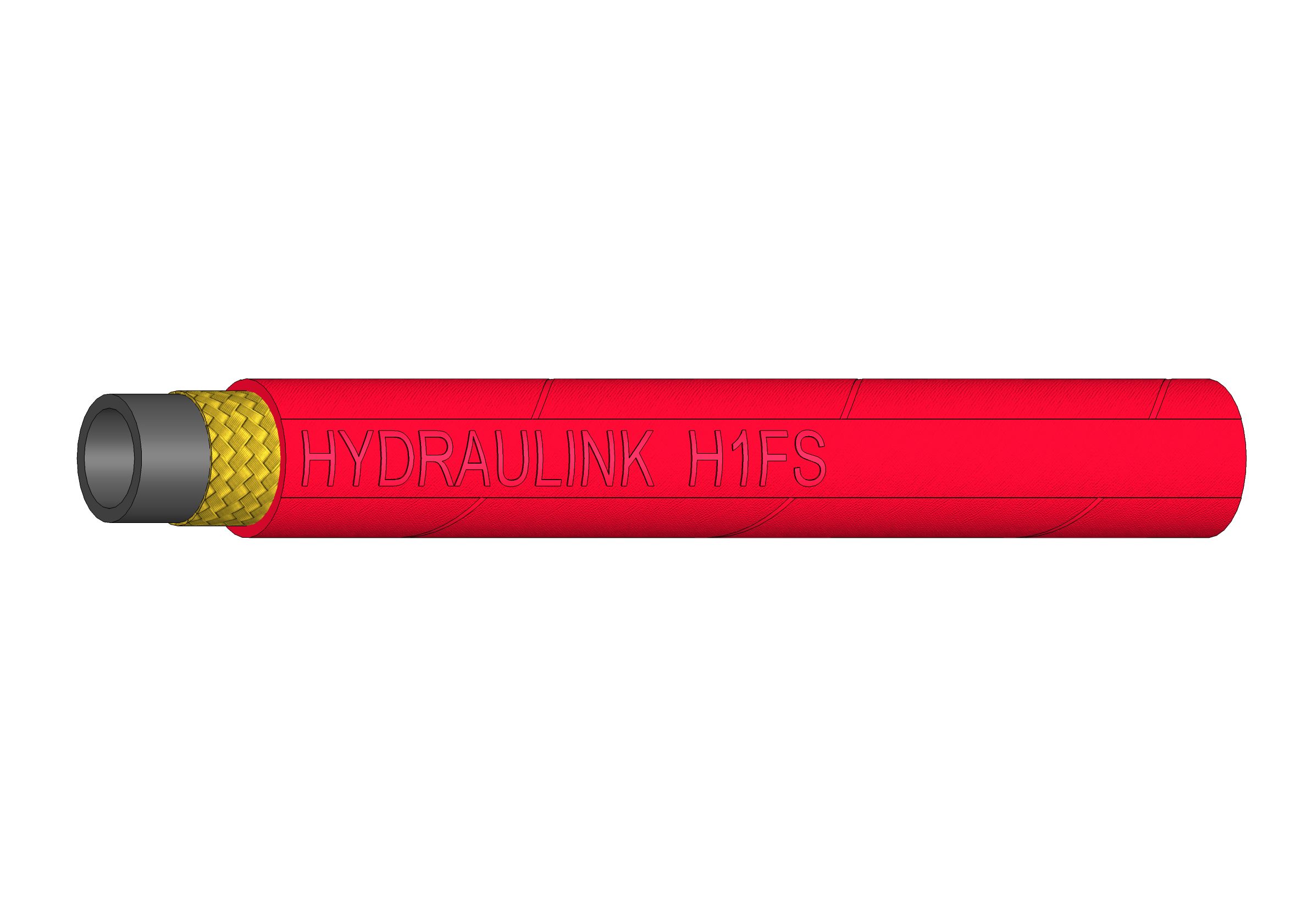

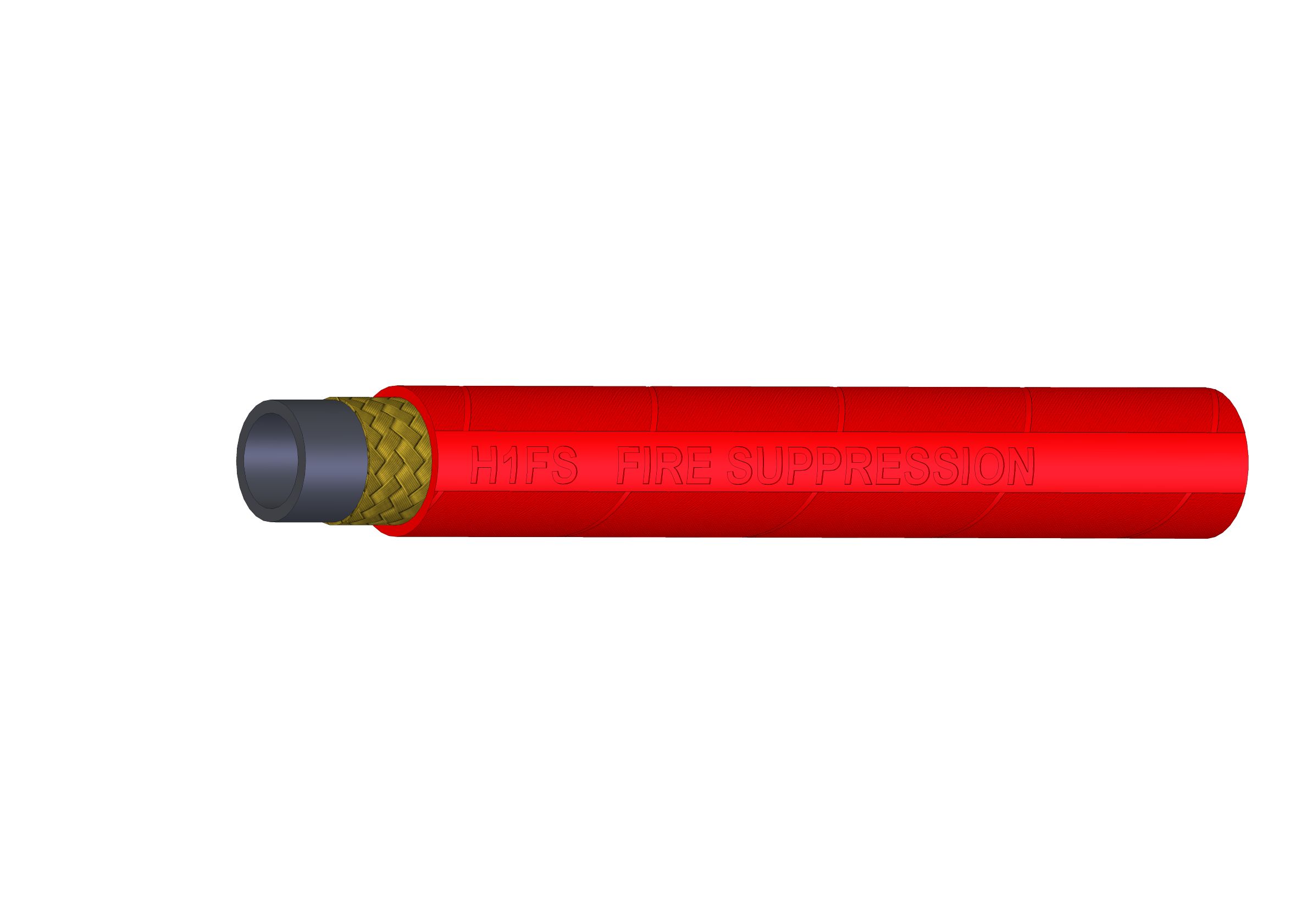

RED FIRE SUPPRESSANT BRAIDED WIRE REINFORCED HOSE - SAE 100R1 Type AT

PartNumber
Internal Size
Internal Diameter - DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
H1FS-04
04
6
1/4
12.8
3250
225
13000
900
100
H1FS-08
08
12
1/2
19.9
2300
160
9200
640
180
H1FS-12
12
19
3/4
27.1
1500
105
6000
420
240

Product Data

H1FS-04

Internal Size

04

Internal Diameter - DN

6

Internal Diameter - inches

1/4

External Diameter - mm

12.8

Working Pressure - psi

3250

Working pressure - bar

225

Min burst pressure - psi

13000

Min burst pressure - bar

900

Min bend radius - mm

100

H1FS-08

Internal Size

08

Internal Diameter - DN

12

Internal Diameter - inches

1/2

External Diameter - mm

19.9

Working Pressure - psi

2300

Working pressure - bar

160

Min burst pressure - psi

9200

Min burst pressure - bar

640

Min bend radius - mm

180

H1FS-12

Internal Size

12

Internal Diameter - DN

19

Internal Diameter - inches

3/4

External Diameter - mm

27.1

Working Pressure - psi

1500

Working pressure - bar

105

Min burst pressure - psi

6000

Min burst pressure - bar

420

Min bend radius - mm

240

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
