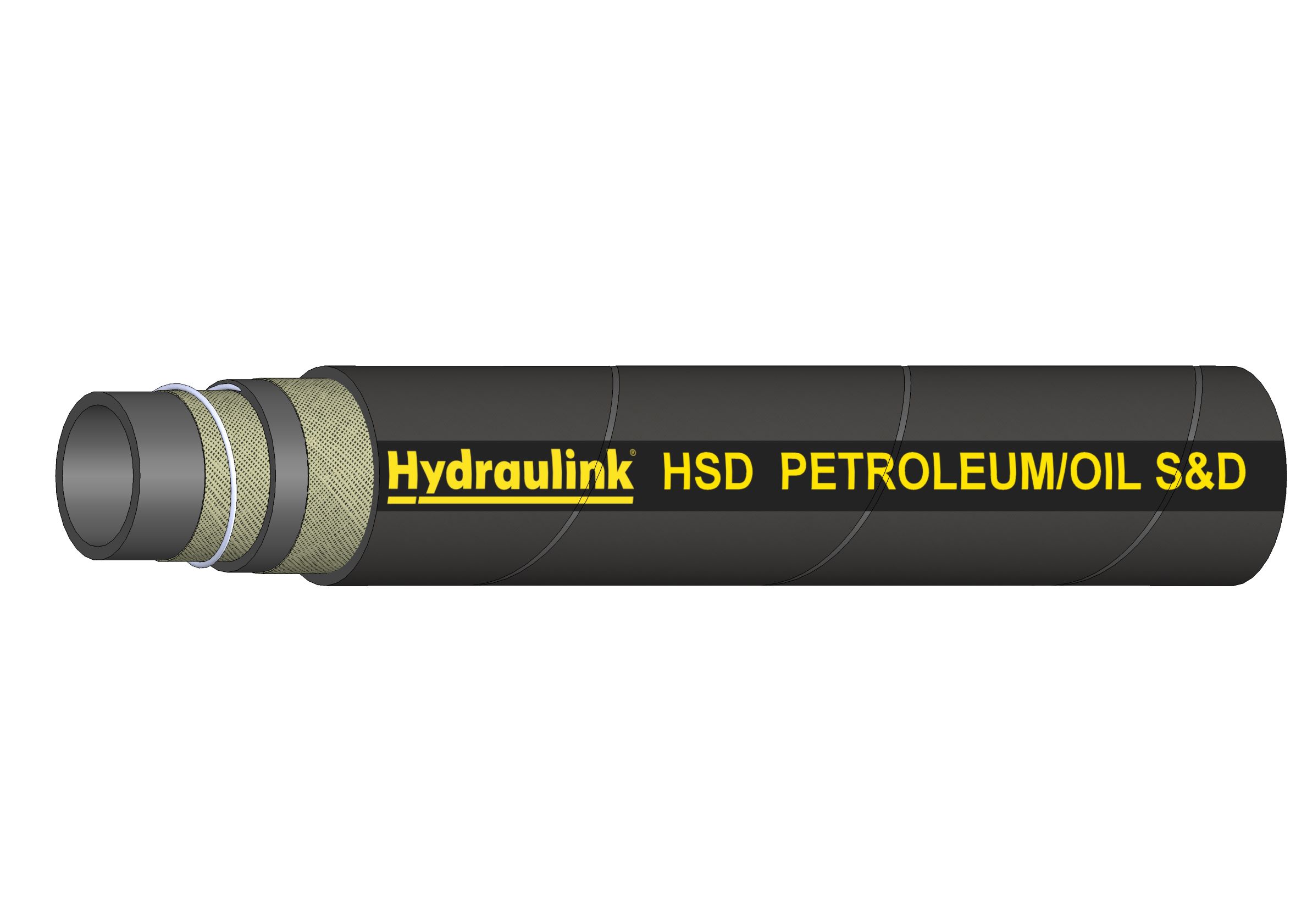

HSD
SUCTION AND DELIVERY HOSE
- Suction and delivery hose for filling and discharging tanks, petrol tankers and ships with unleaded fuels (EN228:2017) with an aromatic content of components 50% max
- Suitable for industrial oils, diesel oils (EN 590:2017), fuel oils (DIN 51 603 parts 1 - 5) and mineral oil-based hydraulic oils
- Safety Factor 3:1
- Vacuum resistance up to -0.9 bar
- Internal tube: NBR, black, electrically conductive, smooth
- Reinforcement: Textile wrapped, zinc plated double steel wire helix (DN > 50,0 zinc plated steel wire helix), 2 crossed copper wires
- External cover: SBR/EPDM, black, resistant to ozone and weather, abrasion resistant, resistant to oil (according SAE J517:2017), cloth impression.
- -40°C / +90°C, oils +100°C
FIBRE AND WIRE REINFORCED HOSE
Product Data
HSD-12
Internal Size
12
Internal DN
19
Internal Diameter (in)
3/4
External Diameter (mm)
29
Working Pressure (psi)
145
Working pressure (bar)
10
Min burst pressure (psi)
435
Min burst pressure (bar)
30
Min bend radius (mm)
45
HSD-16
Internal Size
16
Internal DN
25
Internal Diameter (in)
1
External Diameter (mm)
35
Working Pressure (psi)
145
Working pressure (bar)
10
Min burst pressure (psi)
435
Min burst pressure (bar)
30
Min bend radius (mm)
55
HSD-20
Internal Size
20
Internal DN
31
Internal Diameter (in)
1.1/4
External Diameter (mm)
42
Working Pressure (psi)
145
Working pressure (bar)
10
Min burst pressure (psi)
435
Min burst pressure (bar)
30
Min bend radius (mm)
65
HSD-24
Internal Size
24
Internal DN
38
Internal Diameter (in)
1.1/2
External Diameter (mm)
48
Working Pressure (psi)
145
Working pressure (bar)
10
Min burst pressure (psi)
435
Min burst pressure (bar)
30
Min bend radius (mm)
80
HSD-32
Internal Size
32
Internal DN
51
Internal Diameter (in)
2
External Diameter (mm)
61.8
Working Pressure (psi)
145
Working pressure (bar)
10
Min burst pressure (psi)
435
Min burst pressure (bar)
30
Min bend radius (mm)
130
HSD-40
Internal Size
40
Internal DN
63
Internal Diameter (in)
2.1/2
External Diameter (mm)
75.5
Working Pressure (psi)
145
Working pressure (bar)
10
Min burst pressure (psi)
435
Min burst pressure (bar)
30
Min bend radius (mm)
180
HSD-48
Internal Size
48
Internal DN
76
Internal Diameter (in)
3
External Diameter (mm)
88.2
Working Pressure (psi)
145
Working pressure (bar)
10
Min burst pressure (psi)
435
Min burst pressure (bar)
30
Min bend radius (mm)
350
