Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

  • Product Catalogue
  • Promotions
  • Our Quality
  • Safety Data Sheets

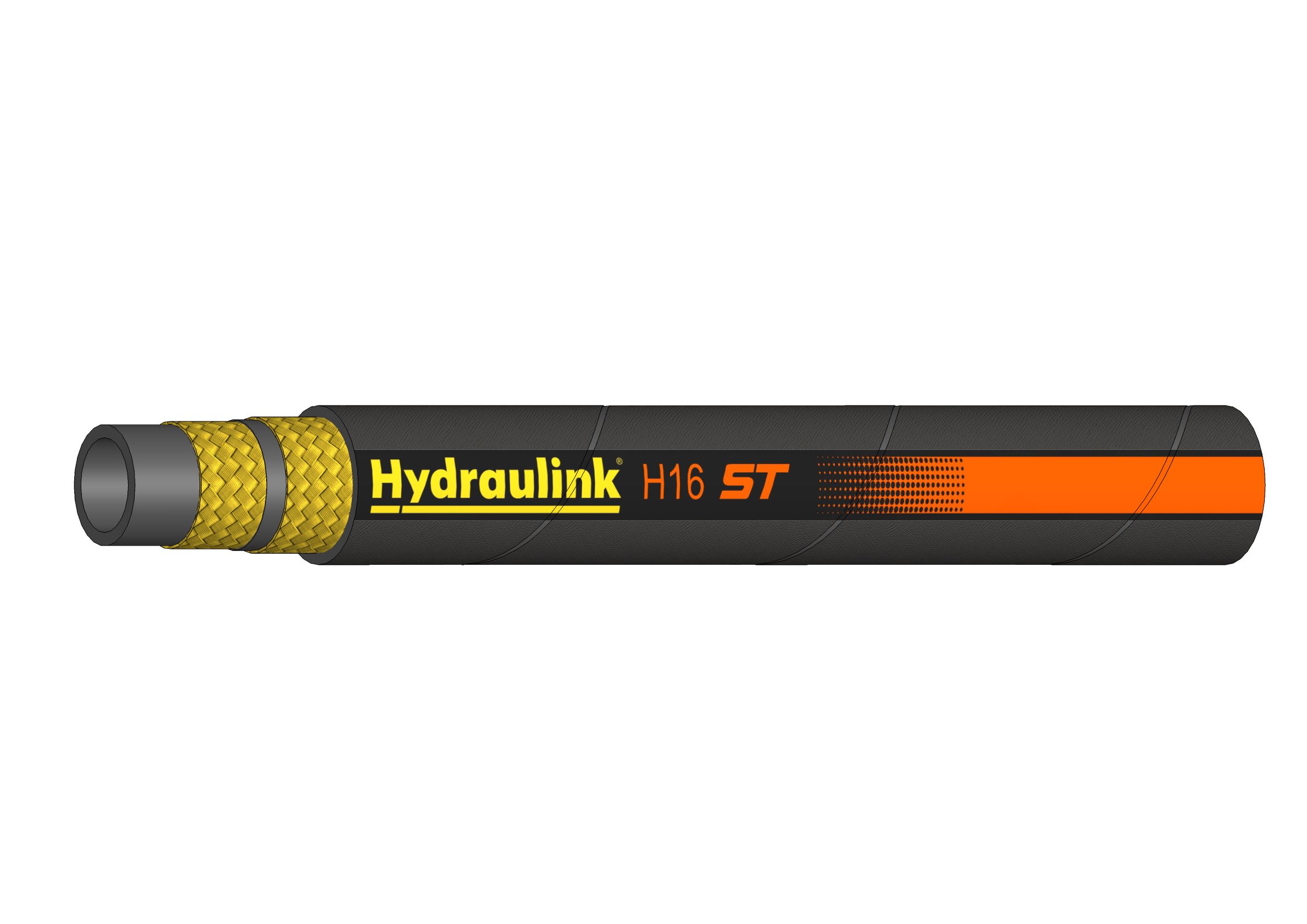

SLIMLINE WIRE BRAID HOSE

R16 TWO WIRE BRAID HOSE

SLIMLINE WIRE BRAID HOSE

R16 TWO WIRE BRAID HOSE

SLIMLINE WIRE BRAID HOSE

R16 TWO WIRE BRAID HOSE

BRAIDED WIRE REINFORCED HOSE - SAE 100R16

PartNumber
Internal Size
Internal Diameter - DN
Internal Diameter - inches
External Diameter - mm
Working Pressure - psi
Working pressure - bar
Min burst pressure - psi
Min burst pressure - bar
Min bend radius - mm
H16-04ST
04
6
1/4
13.2
6100
420
24400
1680
45
H16-06ST
06
10
3/8
16.7
5100
350
20400
1400
65
H16-08ST
08
12
1/2
20.1
5100
350
20400
1400
90

Product Data

H16-04ST

Internal Size

04

Internal Diameter - DN

6

Internal Diameter - inches

1/4

External Diameter - mm

13.2

Working Pressure - psi

6100

Working pressure - bar

420

Min burst pressure - psi

24400

Min burst pressure - bar

1680

Min bend radius - mm

45

H16-06ST

Internal Size

06

Internal Diameter - DN

10

Internal Diameter - inches

3/8

External Diameter - mm

16.7

Working Pressure - psi

5100

Working pressure - bar

350

Min burst pressure - psi

20400

Min burst pressure - bar

1400

Min bend radius - mm

65

H16-08ST

Internal Size

08

Internal Diameter - DN

12

Internal Diameter - inches

1/2

External Diameter - mm

20.1

Working Pressure - psi

5100

Working pressure - bar

350

Min burst pressure - psi

20400

Min burst pressure - bar

1400

Min bend radius - mm

90

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.
