TEST POINTS
JIC IN-LINE TEST POINT
TEST POINTS
JIC IN-LINE TEST POINT

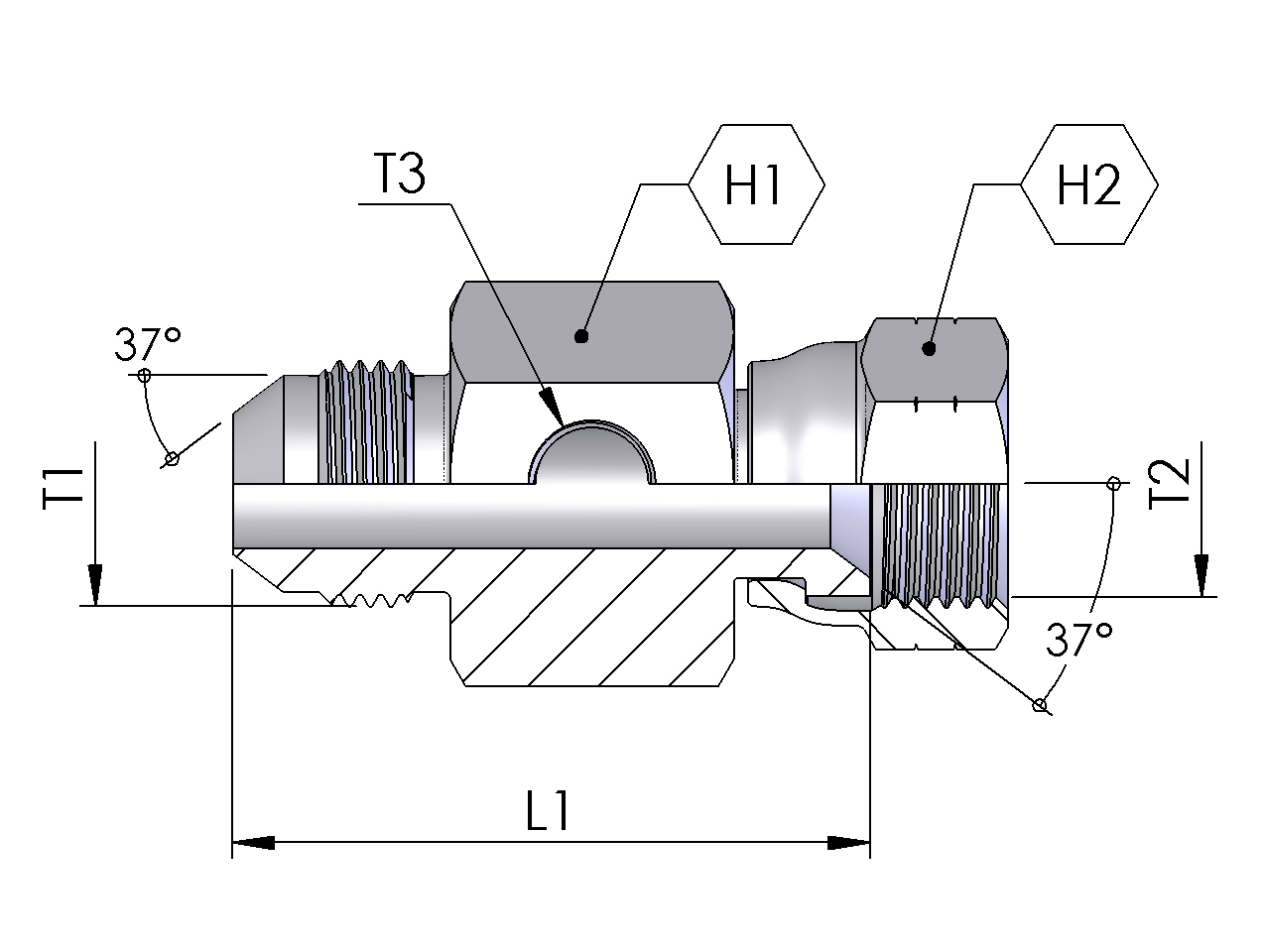

Product Data
G-J-FP-070702
JIC Thread (T1 & T2)
7/16-20
BSPP Female Thread (T3)
1/8-28
L1 - mm
45
Hex A/F (H1)
27
Hex A/F (H2)
14
G-J-FP-090902
JIC Thread (T1 & T2)
9/16-18
BSPP Female Thread (T3)
1/8-28
L1 - mm
46
Hex A/F (H1)
27
Hex A/F (H2)
19
G-J-FP-121202
JIC Thread (T1 & T2)
3/4-16
BSPP Female Thread (T3)
1/8-28
L1 - mm
49
Hex A/F (H1)
27
Hex A/F (H2)
22
G-J-FP-141402
JIC Thread (T1 & T2)
7/8-14
BSPP Female Thread (T3)
1/8-28
L1 - mm
52
Hex A/F (H1)
32
Hex A/F (H2)
27
G-J-FP-171702
JIC Thread (T1 & T2)
1.1/16-12
BSPP Female Thread (T3)
1/8-28
L1 - mm
57
Hex A/F (H1)
32
Hex A/F (H2)
32
