QPV
PUSH/PULL POPPET SEAL
- QPV are only available in 08 (1/2) base size.
- Please enquire for thread forms and sizes.
- NOTE: Male coupling is base size 08 (1/2) QNV series. QPV series is only female couplings.
- Recommended for: Agricultural equipment.
- Connection: Connect without pressure - push male coupling to connect. Disconnect under pressure not allowed - pull male coupling to disconnect.
- Latching: Balls latching.
- Shut-off system: Poppet valve.
- Temperature range: -25°C to +125°C
- Standards: Interchangeability according to ISO 7241-1 part A standard.
INTERCHANGE ACCORDING TO ISO 7241-1 PART A

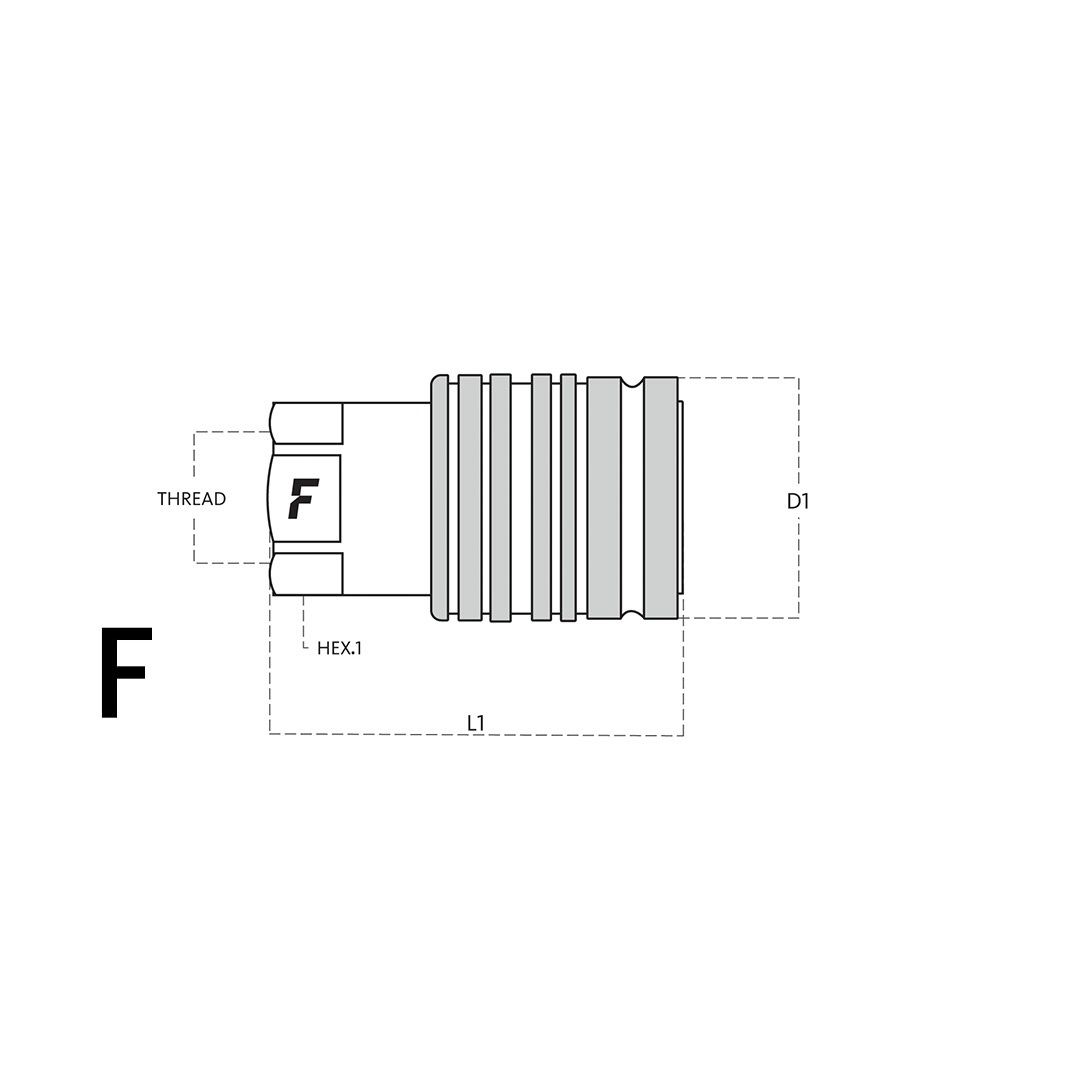

Product Data
QPV-F08
Base Size
08
Threadform
BSPPF socket
Thread size
1/2-14
Coupling Length (L1)
66.0
Coupling O.D (D1)
38
Hex Size A/F (Hex 1)
27
