STANDARD SERIES
BALL SEAL COUPLINGS
STANDARD SERIES
BALL SEAL COUPLINGS
QNS
BALL SEAL COUPLINGS
- Please enquire for other thread forms and sizes. For sizes larger than 16 (1) refer to QNV series.
- NOTE: Only size 08 (1/2) is interchangeable with ISO 7241-1 part A.
- Recommended for: Agriculture, industrial, construction, earthmoving.
- Connection: Connect without pressure - pull back female sleeve and push couplings to connect. Disconnect under pressure not allowed - pull back female sleeve to disconnect.
- Latching: Balls latching.
- Shut-off system: Ball valve.
- Temperature range: -25°C to +125°C
- Standards: 08 (1/2) size only; Interchangeability according to ISO 7241-1 part A
- All other sizes; Interchangeability according to Faster internal standard. Interchangeability with all QNV series couplings (all sizes).
INTERCHANGE WITH ISO 7241-1 PART A IN 08 SIZE

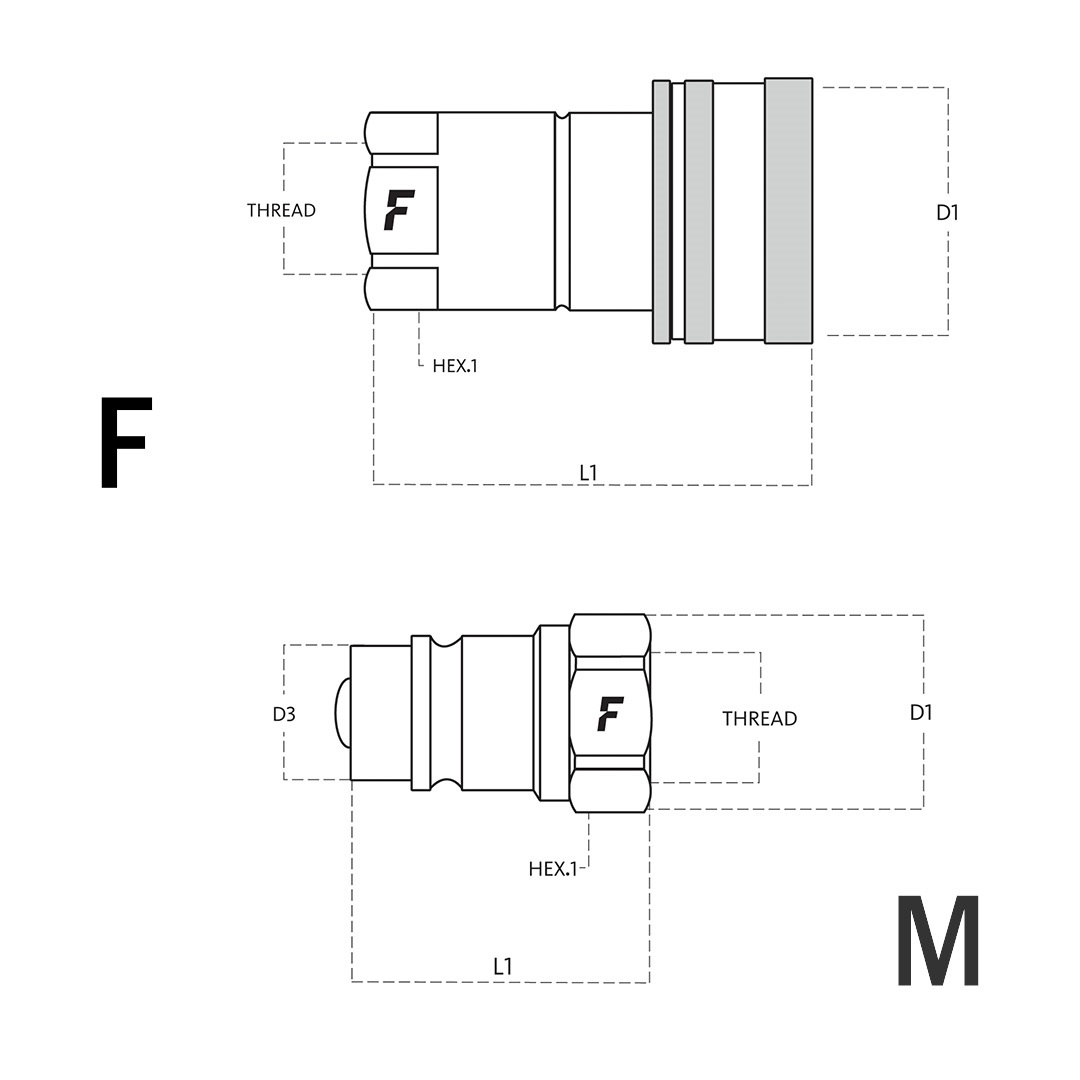

Product Data
QNS-F04
Base Size
04
Threadform
BSPPF socket
Thread Size
1/4-19
Coupling Length - L1
50.0
Coupling O.D - D1
27
Hex Size A/F (Hex 1)
19
Inner Coupling O.D - D3
QNS-F06
Base Size
06
Threadform
BSPPF socket
Thread Size
3/8-19
Coupling Length - L1
59.5
Coupling O.D - D1
33
Hex Size A/F (Hex 1)
24
Inner Coupling O.D - D3
QNS-F08
Base Size
08
Threadform
BSPPF socket
Thread Size
1/2-14
Coupling Length - L1
68.0
Coupling O.D - D1
38
Hex Size A/F (Hex 1)
27
Inner Coupling O.D - D3
QNS-F12
Base Size
12
Threadform
BSPPF socket
Thread Size
3/4-14
Coupling Length - L1
82.5
Coupling O.D - D1
48
Hex Size A/F (Hex 1)
34
Inner Coupling O.D - D3
QNS-F16
Base Size
16
Threadform
BSPPF socket
Thread Size
1-11
Coupling Length - L1
100.0
Coupling O.D - D1
56
Hex Size A/F (Hex 1)
41
Inner Coupling O.D - D3
QNS-M04
Base Size
04
Threadform
BSPPF socket
Thread Size
1/4-19
Coupling Length - L1
33.0
Coupling O.D - D1
21
Hex Size A/F (Hex 1)
19
Inner Coupling O.D - D3
14.1
QNS-M06
Base Size
06
Threadform
BSPPF socket
Thread Size
3/8-19
Coupling Length - L1
39.0
Coupling O.D - D1
27
Hex Size A/F (Hex 1)
24
Inner Coupling O.D - D3
18.9
QNS-M08
Base Size
08
Threadform
BSPPF socket
Thread Size
1/2-14
Coupling Length - L1
46.0
Coupling O.D - D1
30
Hex Size A/F (Hex 1)
27
Inner Coupling O.D - D3
20.5
QNS-M12
Base Size
12
Threadform
BSPPF socket
Thread Size
3/4-14
Coupling Length - L1
53.5
Coupling O.D - D1
38
Hex Size A/F (Hex 1)
34
Inner Coupling O.D - D3
27.9
QNS-M16
Base Size
16
Threadform
BSPPF socket
Thread Size
1-11
Coupling Length - L1
66.0
Coupling O.D - D1
45
Hex Size A/F (Hex 1)
41
Inner Coupling O.D - D3
31.3
