STANDARD SERIES
POPPET SEAL COUPLINGS
STANDARD SERIES
POPPET SEAL COUPLINGS

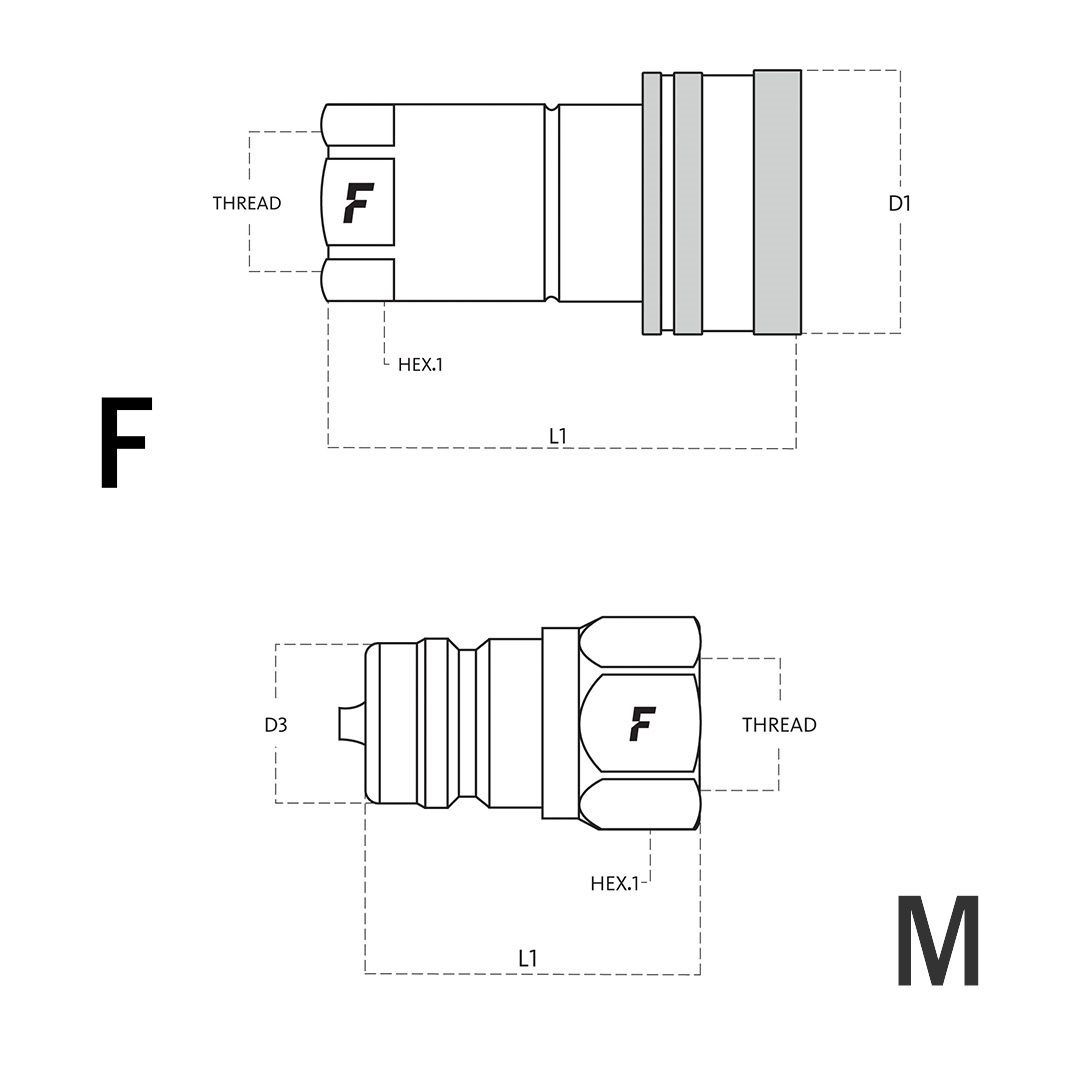

Product Data
QNV-F04
Base Size
04
Threadform
BSPPF socket
Thread
1/4-19
Coupling Length - L1
50.0
Coupling O.D - D1
27
Hex Size A/F (Hex 1)
19
Inner Coupling O.D - D3
QNV-F06
Base Size
06
Threadform
BSPPF socket
Thread
3/8-19
Coupling Length - L1
59.5
Coupling O.D - D1
33
Hex Size A/F (Hex 1)
24
Inner Coupling O.D - D3
QNV-F08
Base Size
08
Threadform
BSPPF socket
Thread
1/2-14
Coupling Length - L1
66.0
Coupling O.D - D1
38
Hex Size A/F (Hex 1)
27
Inner Coupling O.D - D3
QNV-F0812Q
Base Size
08
Threadform
UNOF socket
Thread
3/4-16
Coupling Length - L1
66.0
Coupling O.D - D1
38
Hex Size A/F (Hex 1)
27
Inner Coupling O.D - D3
QNV-F0814Q
Base Size
08
Threadform
UNOF socket
Thread
7/8-14
Coupling Length - L1
69.5
Coupling O.D - D1
38
Hex Size A/F (Hex 1)
32
Inner Coupling O.D - D3
QNV-F12
Base Size
12
Threadform
BSPPF socket
Thread
3/4-14
Coupling Length - L1
82.5
Coupling O.D - D1
48
Hex Size A/F (Hex 1)
34
Inner Coupling O.D - D3
QNV-F16
Base Size
16
Threadform
BSPPF socket
Thread
1-11
Coupling Length - L1
100.0
Coupling O.D - D1
56
Hex Size A/F (Hex 1)
41
Inner Coupling O.D - D3
QNV-F20
Base Size
20
Threadform
BSPPF socket
Thread
1.1/4-11
Coupling Length - L1
115.0
Coupling O.D - D1
70
Hex Size A/F (Hex 1)
50
Inner Coupling O.D - D3
QNV-F24
Base Size
24
Threadform
BSPPF socket
Thread
1.1/2-11
Coupling Length - L1
127.5
Coupling O.D - D1
84
Hex Size A/F (Hex 1)
60
Inner Coupling O.D - D3
QNV-F32
Base Size
32
Threadform
BSPPF socket
Thread
2-11
Coupling Length - L1
151.0
Coupling O.D - D1
119
Hex Size A/F (Hex 1)
75
Inner Coupling O.D - D3
QNV-M04
Base Size
04
Threadform
BSPPF socket
Thread
1/4-19
Coupling Length - L1
33.0
Coupling O.D - D1
21
Hex Size A/F (Hex 1)
19
Inner Coupling O.D - D3
14.1
QNV-M06
Base Size
06
Threadform
BSPPF socket
Thread
3/8-19
Coupling Length - L1
39.0
Coupling O.D - D1
27
Hex Size A/F (Hex 1)
24
Inner Coupling O.D - D3
18.9
QNV-M08
Base Size
08
Threadform
BSPPF socket
Thread
1/2-14
Coupling Length - L1
44.0
Coupling O.D - D1
30
Hex Size A/F (Hex 1)
27
Inner Coupling O.D - D3
20.5
QNV-M0812Q
Base Size
08
Threadform
UNOF socket
Thread
3/4-16
Coupling Length - L1
47.0
Coupling O.D - D1
30
Hex Size A/F (Hex 1)
27
Inner Coupling O.D - D3
20.5
QNV-M0814Q
Base Size
08
Threadform
UNOF socket
Thread
7/8-14
Coupling Length - L1
51.0
Coupling O.D - D1
30
Hex Size A/F (Hex 1)
32
Inner Coupling O.D - D3
20.5
QNV-M12
Base Size
12
Threadform
BSPPF socket
Thread
3/4-14
Coupling Length - L1
53.5
Coupling O.D - D1
38
Hex Size A/F (Hex 1)
34
Inner Coupling O.D - D3
27.9
QNV-M16
Base Size
16
Threadform
BSPPF socket
Thread
1-11
Coupling Length - L1
66.0
Coupling O.D - D1
45
Hex Size A/F (Hex 1)
41
Inner Coupling O.D - D3
31.3
QNV-M20
Base Size
20
Threadform
BSPPF socket
Thread
1.1/4-11
Coupling Length - L1
73.0
Coupling O.D - D1
33
Hex Size A/F (Hex 1)
50
Inner Coupling O.D - D3
44
QNV-M24
Base Size
24
Threadform
BSPPF socket
Thread
1.1/2-11
Coupling Length - L1
83.5
Coupling O.D - D1
66
Hex Size A/F (Hex 1)
60
Inner Coupling O.D - D3
53.4
QNV-M32
Base Size
32
Threadform
BSPPF socket
Thread
2-11
Coupling Length - L1
100.0
Coupling O.D - D1
86.9
Hex Size A/F (Hex 1)
75
Inner Coupling O.D - D3
82
