SWAGERS

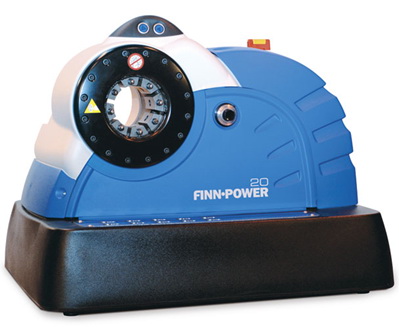

FINNPOWER P20 SWAGER

SWAGERS

FINNPOWER P20 SWAGER

SWAGERS

FINNPOWER P20 SWAGER

SWAGER FOR HOSE ASSEMBLIES TO 1 1/4INCH

PartNumber
Swaging Range (mm)
Swaging Force (kN)
Power Source
Swage Control
Length - mm
Width - mm
Height - mm
Weight - kg
XP20-CS-12V
10 - 61
1370
12V DC
MS*
571
533
387
83
XP20-CS-24V
10 - 61
1370
24V DC
MS*
571
533
387
83
XP20N-MS-1PH
10 - 61
1370
1 Phase
MS*
800
630
626
157
XP20-AP
10 - 61
1370
Air Pump
MS*
583
477
345
57
XP20-HPL
10 - 61
1370
Handpump
MS*
487
442
389
63

Product Data

XP20-CS-12V

Swaging Range (mm)

10 - 61

Swaging Force (kN)

1370

Power Source

12V DC

Swage Control

MS*

Length - mm

571

Width - mm

533

Height - mm

387

Weight - kg

83

XP20-CS-24V

Swaging Range (mm)

10 - 61

Swaging Force (kN)

1370

Power Source

24V DC

Swage Control

MS*

Length - mm

571

Width - mm

533

Height - mm

387

Weight - kg

83

XP20N-MS-1PH

Swaging Range (mm)

10 - 61

Swaging Force (kN)

1370

Power Source

1 Phase

Swage Control

MS*

Length - mm

800

Width - mm

630

Height - mm

626

Weight - kg

157

XP20-AP

Swaging Range (mm)

10 - 61

Swaging Force (kN)

1370

Power Source

Air Pump

Swage Control

MS*

Length - mm

583

Width - mm

477

Height - mm

345

Weight - kg

57

XP20-HPL

Swaging Range (mm)

10 - 61

Swaging Force (kN)

1370

Power Source

Handpump

Swage Control

MS*

Length - mm

487

Width - mm

442

Height - mm

389

Weight - kg

63

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
