Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

  • Product Catalogue
  • Promotions
  • Our Quality
  • Safety Data Sheets

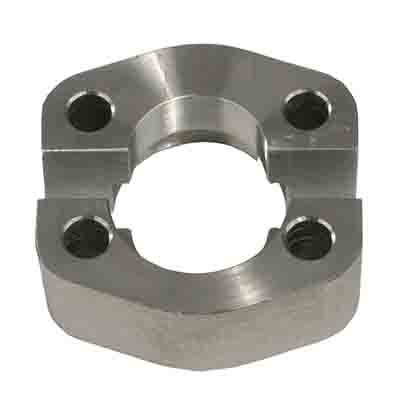

SAE FLANGE CLAMPS

FLANGE CLAMPS TO SUIT CATERPILLAR STYLE FLANGE

SAE FLANGE CLAMPS

FLANGE CLAMPS TO SUIT CATERPILLAR STYLE FLANGE

SAE FLANGE CLAMPS

FLANGE CLAMPS TO SUIT CATERPILLAR STYLE FLANGE

CLAMPS TO SUIT CAT STYLE FLANGE COMPLETE WITH O RING/UNC BOLT KIT

PartNumber
Nominal Flange size (T)
Dash Size
Flange Diameter (mm)
Bolt Hole Spacing (mm)
Kit Includes
WHPC-12
3/4
12
41
50.8
O-ring-spring washers-bolts
WHPC-16
1
16
48
57.15
O-ring-spring washers-bolts
WHPC-20
1.1/4
20
54
66
O-ring-spring washers-bolts
WHPC-24
1.1/2
24
64
79.5
O-ring-spring washers-bolts
WHPC-32
2
32
79
96.8
O-ring-spring washers-bolts

Product Data

WHPC-12

Nominal Flange size (T)

3/4

Dash Size

12

Flange Diameter (mm)

41

Bolt Hole Spacing (mm)

50.8

Kit Includes

O-ring-spring washers-bolts

WHPC-16

Nominal Flange size (T)

1

Dash Size

16

Flange Diameter (mm)

48

Bolt Hole Spacing (mm)

57.15

Kit Includes

O-ring-spring washers-bolts

WHPC-20

Nominal Flange size (T)

1.1/4

Dash Size

20

Flange Diameter (mm)

54

Bolt Hole Spacing (mm)

66

Kit Includes

O-ring-spring washers-bolts

WHPC-24

Nominal Flange size (T)

1.1/2

Dash Size

24

Flange Diameter (mm)

64

Bolt Hole Spacing (mm)

79.5

Kit Includes

O-ring-spring washers-bolts

WHPC-32

Nominal Flange size (T)

2

Dash Size

32

Flange Diameter (mm)

79

Bolt Hole Spacing (mm)

96.8

Kit Includes

O-ring-spring washers-bolts

INTRODUCING NEW ENDURO SPIRAL HOSE

ENDURO spiral is an extremely flexible slim profile hose featuring our very high wear and abrasion resistant SuperTuff (ST) MSHA cover for increased protection against abrasion in severe operating environments.

VIEW ENDURO BROCHURE
