45 DEGREE ADAPTORS

JIC MALE X BSP ADJUSTABLE

45 DEGREE ADAPTORS

JIC MALE X BSP ADJUSTABLE

45 DEGREE ADAPTORS

JIC MALE X BSP ADJUSTABLE

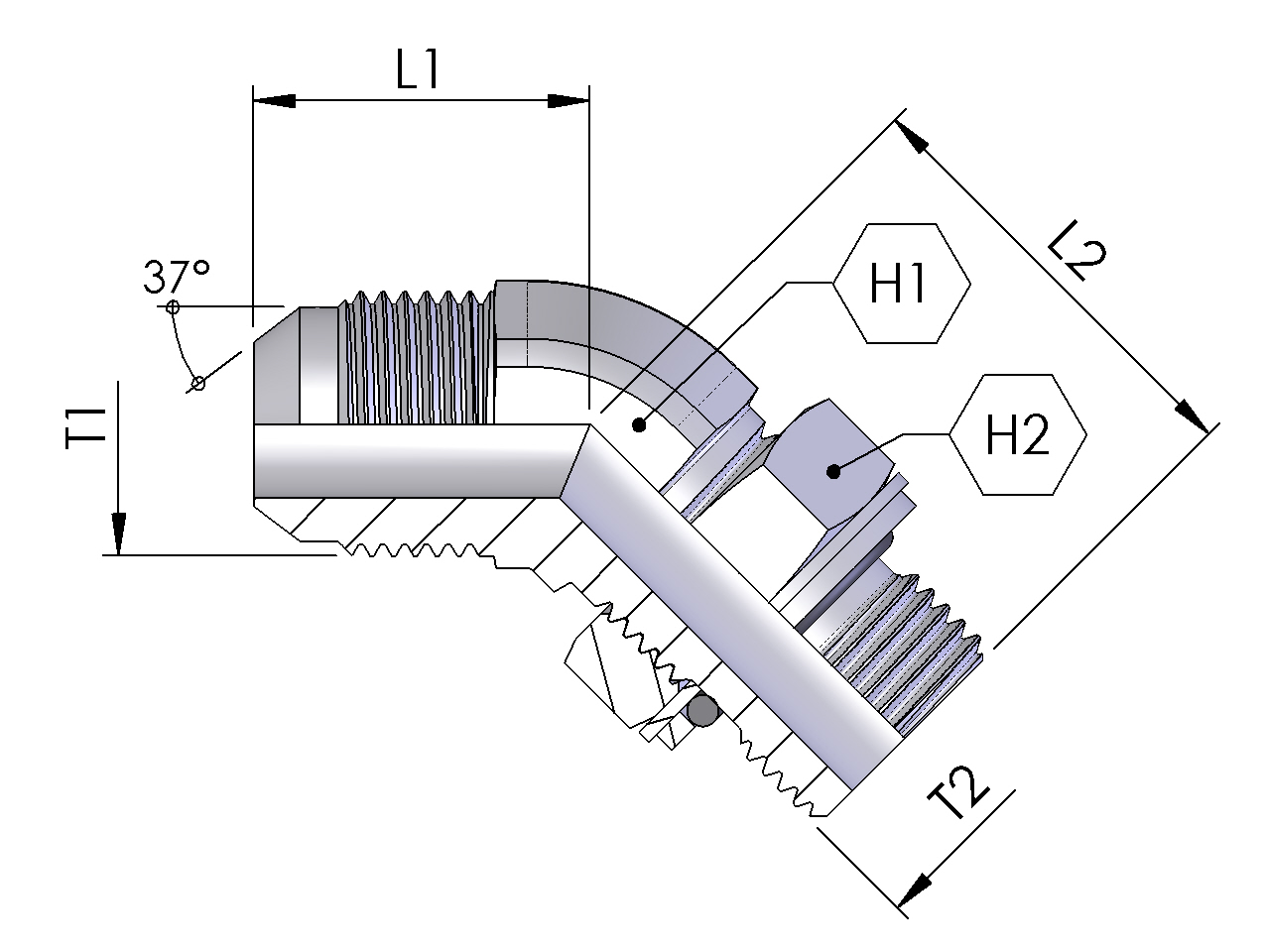

JIC MALE X BSP ADJUSTABLE STUD 45° ELBOW

PartNumber
T1
T2
H1 (mm)
H2 (mm)
L1 (mm)
L2 (mm)
PN (bar)
G-BP-45-0704
7/16-20
1/4-19
14
19
21
28
200
G-BP-45-0904
9/16-18
1/4-19
14
19
21
28
200
G-BP-45-0906
9/16-18
3/8-19
19
22
22
33
200
G-BP-45-0908
9/16-18
1/2-14
19
27
22
37
200
G-BP-45-1206
3/4-16
3/8-19
19
22
25
33
200
G-BP-45-1208
3/4-16
1/2-14
22
27
25
37
200
G-BP-45-1408
7/8-14
1/2-14
22
27
28
37
200
G-BP-45-1712
1.1/16-12
3/4-14
27
36
32
42
200
G-BP-45-1716
1.1/16-12
1-11
37.5
44
33
41
200
G-BP-45-2116
1.5/16-12
1-11
35
41
37.5
47
200

Product Data

G-BP-45-0704

T1

7/16-20

T2

1/4-19

H1 (mm)

14

H2 (mm)

19

L1 (mm)

21

L2 (mm)

28

PN (bar)

200

G-BP-45-0904

T1

9/16-18

T2

1/4-19

H1 (mm)

14

H2 (mm)

19

L1 (mm)

21

L2 (mm)

28

PN (bar)

200

G-BP-45-0906

T1

9/16-18

T2

3/8-19

H1 (mm)

19

H2 (mm)

22

L1 (mm)

22

L2 (mm)

33

PN (bar)

200

G-BP-45-0908

T1

9/16-18

T2

1/2-14

H1 (mm)

19

H2 (mm)

27

L1 (mm)

22

L2 (mm)

37

PN (bar)

200

G-BP-45-1206

T1

3/4-16

T2

3/8-19

H1 (mm)

19

H2 (mm)

22

L1 (mm)

25

L2 (mm)

33

PN (bar)

200

G-BP-45-1208

T1

3/4-16

T2

1/2-14

H1 (mm)

22

H2 (mm)

27

L1 (mm)

25

L2 (mm)

37

PN (bar)

200

G-BP-45-1408

T1

7/8-14

T2

1/2-14

H1 (mm)

22

H2 (mm)

27

L1 (mm)

28

L2 (mm)

37

PN (bar)

200

G-BP-45-1712

T1

1.1/16-12

T2

3/4-14

H1 (mm)

27

H2 (mm)

36

L1 (mm)

32

L2 (mm)

42

PN (bar)

200

G-BP-45-1716

T1

1.1/16-12

T2

1-11

H1 (mm)

37.5

H2 (mm)

44

L1 (mm)

33

L2 (mm)

41

PN (bar)

200

G-BP-45-2116

T1

1.5/16-12

T2

1-11

H1 (mm)

35

H2 (mm)

41

L1 (mm)

37.5

L2 (mm)

47

PN (bar)

200
