STRAIGHT ADAPTORS
JIC FEMALE X JIC FEMALE
STRAIGHT ADAPTORS
JIC FEMALE X JIC FEMALE
STRAIGHT ADAPTORS
JIC FEMALE X JIC FEMALE

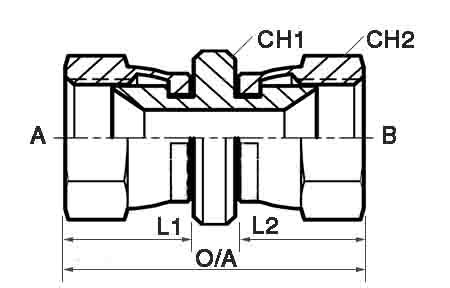

JIC FEMALE SWIVEL NUT 37° CONE X JIC FEMALE SWIVEL NUT 37° CONE
Product Data
J-J-0707
JIC Female Thread (A)
7/16-20
JIC Female Thread (B)
7/16-20
Overall Length (mm)
40.6
L1 (mm)
17.5
L2 (mm)
17.5
Hex A/F - CH1 (mm)
12.7
Hex A/F - CH2 (mm)
14.3
PN (bar)
350
J-J-0909
JIC Female Thread (A)
9/16-18
JIC Female Thread (B)
9/16-18
Overall Length (mm)
46.7
L1 (mm)
20
L2 (mm)
20
Hex A/F - CH1 (mm)
14.3
Hex A/F - CH2 (mm)
15.9
PN (bar)
350
J-J-1212
JIC Female Thread (A)
3/4-16
JIC Female Thread (B)
3/4-16
Overall Length (mm)
52.6
L1 (mm)
22.7
L2 (mm)
22.7
Hex A/F - CH1 (mm)
20.6
Hex A/F - CH2 (mm)
22.2
PN (bar)
310
J-J-1717
JIC Female Thread (A)
1.1/16-12
JIC Female Thread (B)
1.1/16-12
Overall Length (mm)
66.3
L1 (mm)
27.8
L2 (mm)
27.8
Hex A/F - CH1 (mm)
28.6
Hex A/F - CH2 (mm)
31.8
PN (bar)
240
J-J-2121
JIC Female Thread (A)
1.5/16-12
JIC Female Thread (B)
1.5/16-12
Overall Length (mm)
69.6
L1 (mm)
30.6
L2 (mm)
30.6
Hex A/F - CH1 (mm)
38.1
Hex A/F - CH2 (mm)
38.1
PN (bar)
210
