TEE ADAPTORS
JIC MALE X JIC MALE X BSPT MALE
TEE ADAPTORS
JIC MALE X JIC MALE X BSPT MALE
TEE ADAPTORS
JIC MALE X JIC MALE X BSPT MALE

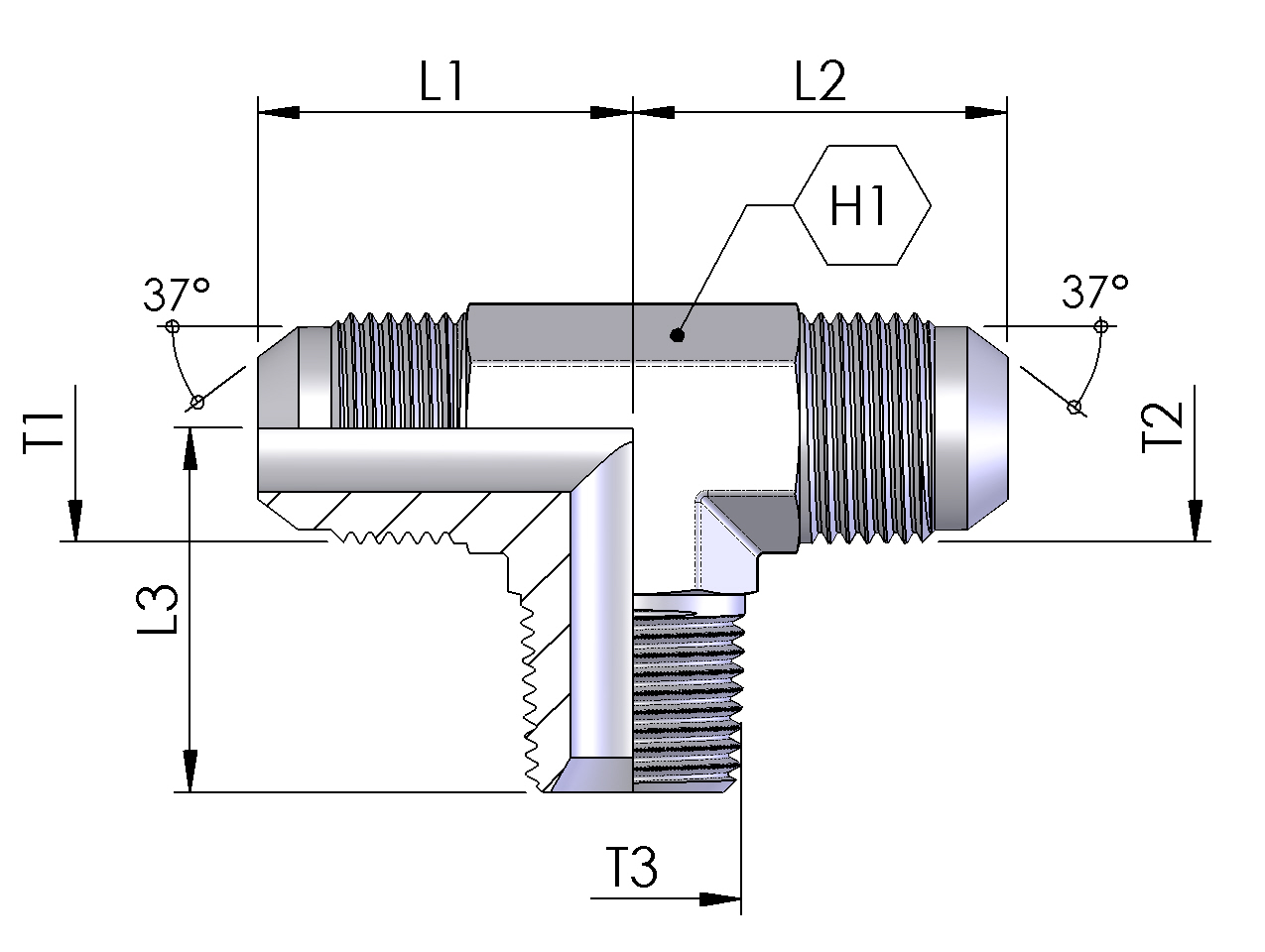

JIC FLARE MALE X JIC FLARE MALE X BSPT MALE BRANCH TEE
Product Data
G-G-A-070702
T1
7/16-20
T2
7/16-20
T3
1/8-28
H1 (mm)
12
L1 (mm)
23
L2 (mm)
23
L3 (mm)
20
PN (bar)
345
G-G-A-070704
T1
7/16-20
T2
7/16-20
T3
1/4-19
H1 (mm)
14
L1 (mm)
27
L2 (mm)
27
L3 (mm)
27
PN (bar)
275
G-G-A-090904
T1
9/16-18
T2
9/16-18
T3
1/4-19
H1 (mm)
14
L1 (mm)
27
L2 (mm)
27
L3 (mm)
27
PN (bar)
275
G-G-A-090906
T1
9/16-18
T2
9/16-18
T3
3/8-19
H1 (mm)
19
L1 (mm)
29
L2 (mm)
29
L3 (mm)
31
PN (bar)
210
G-G-A-121206
T1
3/4-16
T2
3/4-16
T3
3/8-19
H1 (mm)
19
L1 (mm)
32
L2 (mm)
32
L3 (mm)
31
PN (bar)
210
G-G-A-121208
T1
3/4-16
T2
3/4-16
T3
1/2-14
H1 (mm)
22
L1 (mm)
34
L2 (mm)
34
L3 (mm)
35
PN (bar)
210
G-G-A-141406
T1
7/8-14
T2
7/8-14
T3
3/8-19
H1 (mm)
26.7
L1 (mm)
37.6
L2 (mm)
37.6
L3 (mm)
35.6
PN (bar)
210
G-G-A-141408
T1
7/8-14
T2
7/8-14
T3
1/2-14
H1 (mm)
22
L1 (mm)
36
L2 (mm)
36
L3 (mm)
35
PN (bar)
210
G-G-A-141412
T1
7/8-14
T2
7/8-14
T3
3/4-14
H1 (mm)
26.2
L1 (mm)
39
L2 (mm)
39
L3 (mm)
40
PN (bar)
170
G-G-A-171712
T1
1.1/16-12
T2
1.1/16-12
T3
3/4-14
H1 (mm)
27
L1 (mm)
42
L2 (mm)
42
L3 (mm)
40
PN (bar)
170
G-G-A-212116
T1
1.5/16-12
T2
1.5/16-12
T3
1-11
H1 (mm)
35
L1 (mm)
46
L2 (mm)
46
L3 (mm)
47
PN (bar)
140
