Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

  • Product Catalogue
  • Promotions
  • Our Quality
  • Safety Data Sheets

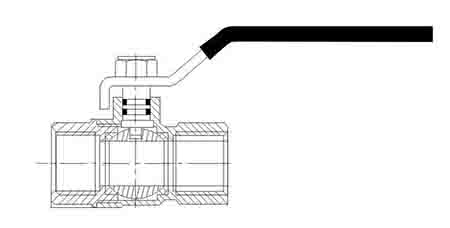

LOW PRESSURE BALL VALVES

TWO WAY BALL VALVE LOW PRESSURE

LOW PRESSURE BALL VALVES

TWO WAY BALL VALVE LOW PRESSURE

LOW PRESSURE BALL VALVES

TWO WAY BALL VALVE LOW PRESSURE

TWO WAY BALL VALVE LOW PRESSURE PLATED BRASS

PartNumber
BSPTF Female Thread (B)
Bore
Working Pressure psi
Working Pressure Bar
LPBV-04
1/4-19
10mm
435
30
LPBV-06
3/8-19
10mm
435
30
LPBV-08
1/2-14
15mm
435
30
LPBV-12
3/4-14
20mm
435
30
LPBV-16
1-11
25mm
435
30
LPBV-20
1.1/4-11
32mm
360
25
LPBV-24
1.1/2-11
40mm
360
25
LPBV-32
2-11
50mm
360
25

Product Data

LPBV-04

BSPTF Female Thread (B)

1/4-19

Bore

10mm

Working Pressure psi

435

Working Pressure Bar

30

LPBV-06

BSPTF Female Thread (B)

3/8-19

Bore

10mm

Working Pressure psi

435

Working Pressure Bar

30

LPBV-08

BSPTF Female Thread (B)

1/2-14

Bore

15mm

Working Pressure psi

435

Working Pressure Bar

30

LPBV-12

BSPTF Female Thread (B)

3/4-14

Bore

20mm

Working Pressure psi

435

Working Pressure Bar

30

LPBV-16

BSPTF Female Thread (B)

1-11

Bore

25mm

Working Pressure psi

435

Working Pressure Bar

30

LPBV-20

BSPTF Female Thread (B)

1.1/4-11

Bore

32mm

Working Pressure psi

360

Working Pressure Bar

25

LPBV-24

BSPTF Female Thread (B)

1.1/2-11

Bore

40mm

Working Pressure psi

360

Working Pressure Bar

25

LPBV-32

BSPTF Female Thread (B)

2-11

Bore

50mm

Working Pressure psi

360

Working Pressure Bar

25
