JIS

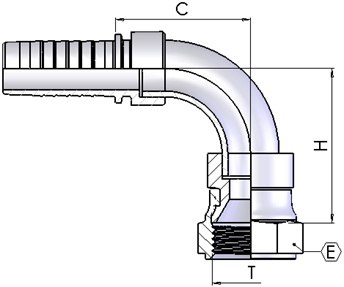

JIS METRIC FEMALE 90° ELBOW

JIS

JIS METRIC FEMALE 90° ELBOW

JIS

JIS METRIC FEMALE 90° ELBOW

KOMATSU STYLE 30° FLARE SWIVEL NUT

PartNumber
JIS Female Thread - T
Hose I.D (in)
Hose I.D (mm)
Dash size
Hex A/F - E (mm)
Drop - H (mm)
Cutoff - C (mm)
Working Pressure (bar)
Working Pressure (psi)
S89-M1404
M14-1.5
1/4
6.4
04
19
35
38
350
5000
S89-M1406
M14-1.5
3/8
9.5
06
19
33
31
350
5000
S89-M1606
M16x1.5
3/8
9.5
06
22
34
30
350
5000
S89-M1806
M18x1.5
3/8
9.5
06
24
33
31
350
5000
S89-M2208
M22x1.5
1/2
12.7
08
27
39
33
350
5000
S89-M3012
M30x1.5
3/4
19
12
36
43
48
280
4000

Product Data

S89-M1404

JIS Female Thread - T

M14-1.5

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Hex A/F - E (mm)

19

Drop - H (mm)

35

Cutoff - C (mm)

38

Working Pressure (bar)

350

Working Pressure (psi)

5000

S89-M1406

JIS Female Thread - T

M14-1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Hex A/F - E (mm)

19

Drop - H (mm)

33

Cutoff - C (mm)

31

Working Pressure (bar)

350

Working Pressure (psi)

5000

S89-M1606

JIS Female Thread - T

M16x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Hex A/F - E (mm)

22

Drop - H (mm)

34

Cutoff - C (mm)

30

Working Pressure (bar)

350

Working Pressure (psi)

5000

S89-M1806

JIS Female Thread - T

M18x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Hex A/F - E (mm)

24

Drop - H (mm)

33

Cutoff - C (mm)

31

Working Pressure (bar)

350

Working Pressure (psi)

5000

S89-M2208

JIS Female Thread - T

M22x1.5

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Hex A/F - E (mm)

27

Drop - H (mm)

39

Cutoff - C (mm)

33

Working Pressure (bar)

350

Working Pressure (psi)

5000

S89-M3012

JIS Female Thread - T

M30x1.5

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Hex A/F - E (mm)

36

Drop - H (mm)

43

Cutoff - C (mm)

48

Working Pressure (bar)

280

Working Pressure (psi)

4000
