METRIC 24°

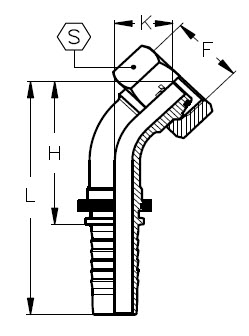

Product catalogue Carbon Steel Swage Couplings METRIC 24° METRIC HEAVY FEMALE 45° ELBOW

METRIC HEAVY FEMALE 45° ELBOW

METRIC 24°

METRIC HEAVY FEMALE 45° ELBOW

METRIC 24°

METRIC HEAVY FEMALE 45° ELBOW

24° CONE SWIVEL NUT

Download PDF
PartNumber
Metric Female Thread - F
Hose I.D (in)
Hose I.D (mm)
Dash size
Tube Size
Hex A/F - S (mm)
Drop - K (mm)
Cutoff - H (mm)
Length - L (mm)
Working Pressure (bar)
Working Pressure (psi)
S84-M1404
M14x1.5
1/4
6.4
04
6
17
14
35
63
450
6500
S84-M1604
M16x1.5
1/4
6.4
04
8
19
14
36
64
450
6500
S84-M1804
M18x1.5
1/4
6.4
04
10
22
16
38
66
450
6500
S84-M1806
M18x1.5
3/8
9.5
06
10
22
17
40
70
445
6500
S84-M2006
M20x1.5
3/8
9.5
06
12
24
18
40
71
445
6500
S84-M2206
M22x1.5
3/8
9.5
06
14
27
19
42
72
445
6500
S84-M2208
M22x1.5
1/2
12.7
08
14
27
20
46
79
420
6000
S84-M2408
M24x1.5
1/2
12.7
08
16
30
21
47
80
420
6000
S84-M3010
M30x2
5/8
15.9
10
20
36
25
56
92
350
5000
S84-M3012
M30x2
3/4
19
12
20
36
27
64
105
350
5000
S84-M3612
M36x2
3/4
19
12
25
46
28
64
105
350
5000
S84-M3616
M36x2
1
25.4
16
25
46
34
83
140
380
5500
S84-M4216
M42x2
1
25.4
16
30
50
32
82
138
380
5500
S84-M5220
M52x2
1 1/4
31.8
20
38
60
38
97
164
325
4700

Product Data

S84-M1404

Metric Female Thread - F

M14x1.5

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Tube Size

6

Hex A/F - S (mm)

17

Drop - K (mm)

14

Cutoff - H (mm)

35

Length - L (mm)

63

Working Pressure (bar)

450

Working Pressure (psi)

6500

S84-M1604

Metric Female Thread - F

M16x1.5

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Tube Size

8

Hex A/F - S (mm)

19

Drop - K (mm)

14

Cutoff - H (mm)

36

Length - L (mm)

64

Working Pressure (bar)

450

Working Pressure (psi)

6500

S84-M1804

Metric Female Thread - F

M18x1.5

Hose I.D (in)

1/4

Hose I.D (mm)

6.4

Dash size

04

Tube Size

10

Hex A/F - S (mm)

22

Drop - K (mm)

16

Cutoff - H (mm)

38

Length - L (mm)

66

Working Pressure (bar)

450

Working Pressure (psi)

6500

S84-M1806

Metric Female Thread - F

M18x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

10

Hex A/F - S (mm)

22

Drop - K (mm)

17

Cutoff - H (mm)

40

Length - L (mm)

70

Working Pressure (bar)

445

Working Pressure (psi)

6500

S84-M2006

Metric Female Thread - F

M20x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

12

Hex A/F - S (mm)

24

Drop - K (mm)

18

Cutoff - H (mm)

40

Length - L (mm)

71

Working Pressure (bar)

445

Working Pressure (psi)

6500

S84-M2206

Metric Female Thread - F

M22x1.5

Hose I.D (in)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

14

Hex A/F - S (mm)

27

Drop - K (mm)

19

Cutoff - H (mm)

42

Length - L (mm)

72

Working Pressure (bar)

445

Working Pressure (psi)

6500

S84-M2208

Metric Female Thread - F

M22x1.5

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Tube Size

14

Hex A/F - S (mm)

27

Drop - K (mm)

20

Cutoff - H (mm)

46

Length - L (mm)

79

Working Pressure (bar)

420

Working Pressure (psi)

6000

S84-M2408

Metric Female Thread - F

M24x1.5

Hose I.D (in)

1/2

Hose I.D (mm)

12.7

Dash size

08

Tube Size

16

Hex A/F - S (mm)

30

Drop - K (mm)

21

Cutoff - H (mm)

47

Length - L (mm)

80

Working Pressure (bar)

420

Working Pressure (psi)

6000

S84-M3010

Metric Female Thread - F

M30x2

Hose I.D (in)

5/8

Hose I.D (mm)

15.9

Dash size

10

Tube Size

20

Hex A/F - S (mm)

36

Drop - K (mm)

25

Cutoff - H (mm)

56

Length - L (mm)

92

Working Pressure (bar)

350

Working Pressure (psi)

5000

S84-M3012

Metric Female Thread - F

M30x2

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Tube Size

20

Hex A/F - S (mm)

36

Drop - K (mm)

27

Cutoff - H (mm)

64

Length - L (mm)

105

Working Pressure (bar)

350

Working Pressure (psi)

5000

S84-M3612

Metric Female Thread - F

M36x2

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Tube Size

25

Hex A/F - S (mm)

46

Drop - K (mm)

28

Cutoff - H (mm)

64

Length - L (mm)

105

Working Pressure (bar)

350

Working Pressure (psi)

5000

S84-M3616

Metric Female Thread - F

M36x2

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Tube Size

25

Hex A/F - S (mm)

46

Drop - K (mm)

34

Cutoff - H (mm)

83

Length - L (mm)

140

Working Pressure (bar)

380

Working Pressure (psi)

5500

S84-M4216

Metric Female Thread - F

M42x2

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Tube Size

30

Hex A/F - S (mm)

50

Drop - K (mm)

32

Cutoff - H (mm)

82

Length - L (mm)

138

Working Pressure (bar)

380

Working Pressure (psi)

5500

S84-M5220

Metric Female Thread - F

M52x2

Hose I.D (in)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Tube Size

38

Hex A/F - S (mm)

60

Drop - K (mm)

38

Cutoff - H (mm)

97

Length - L (mm)

164

Working Pressure (bar)

325

Working Pressure (psi)

4700
