JIC

JIC FEM. SWEPT 45° FOR C5E

JIC

JIC FEM. SWEPT 45° FOR C5E

JIC

JIC FEM. SWEPT 45° FOR C5E

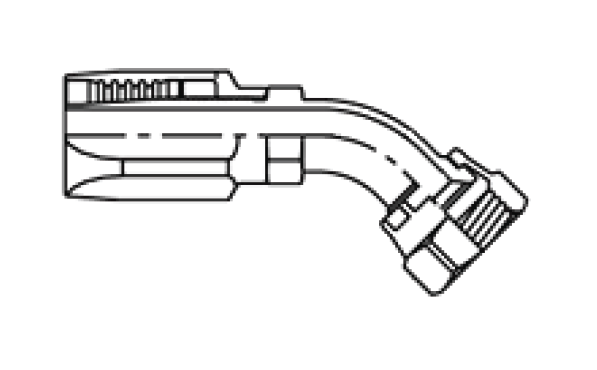

JIC 45° SWEPT ELBOW 37° CONE ROLLED NUT

PartNumber
JIC Female Thread (T)
Nominal Hose I.D - inches
Nominal Hose I.D - mm
True Hose I.D - inches
True Hose I.D - mm
Dash size
Hex A/F (E)
Drop - H
Cutoff - C
R5E64-0704
7/16-20
1/4
6.4
3/16
4.8
04
14.3
8.6
30.5
R5E64-0906
9/16-18
3/8
9.5
5/16
8
06
17.5
10.4
37.6
R5E64-1208
3/4-16
1/2
12.7
13/32
10.3
08
22.2
14.2
43.9
R5E64-1410
7/8-14
5/8
15.9
1/2
12.7
10
25.4
16
53.6
R5E64-1712
1.1/16-12
3/4
19
5/8
15.9
12
31.8
19.8
63.3

Product Data

R5E64-0704

JIC Female Thread (T)

7/16-20

Nominal Hose I.D - inches

1/4

Nominal Hose I.D - mm

6.4

True Hose I.D - inches

3/16

True Hose I.D - mm

4.8

Dash size

04

Hex A/F (E)

14.3

Drop - H

8.6

Cutoff - C

30.5

R5E64-0906

JIC Female Thread (T)

9/16-18

Nominal Hose I.D - inches

3/8

Nominal Hose I.D - mm

9.5

True Hose I.D - inches

5/16

True Hose I.D - mm

8

Dash size

06

Hex A/F (E)

17.5

Drop - H

10.4

Cutoff - C

37.6

R5E64-1208

JIC Female Thread (T)

3/4-16

Nominal Hose I.D - inches

1/2

Nominal Hose I.D - mm

12.7

True Hose I.D - inches

13/32

True Hose I.D - mm

10.3

Dash size

08

Hex A/F (E)

22.2

Drop - H

14.2

Cutoff - C

43.9

R5E64-1410

JIC Female Thread (T)

7/8-14

Nominal Hose I.D - inches

5/8

Nominal Hose I.D - mm

15.9

True Hose I.D - inches

1/2

True Hose I.D - mm

12.7

Dash size

10

Hex A/F (E)

25.4

Drop - H

16

Cutoff - C

53.6

R5E64-1712

JIC Female Thread (T)

1.1/16-12

Nominal Hose I.D - inches

3/4

Nominal Hose I.D - mm

19

True Hose I.D - inches

5/8

True Hose I.D - mm

15.9

Dash size

12

Hex A/F (E)

31.8

Drop - H

19.8

Cutoff - C

63.3
