Get the job done with the right equipment

Hydraulink provides a ‘matched system’ of hose and fittings, ensuring our products are engineered to work together to exceed international SAE and ISO standards and deliver outstanding application and safety performance. Our matched system provides optimal function, minimises risk and guarantees hose performance and safety for ultimate peace of mind when using Hydraulink as your supplier.

Hydraulink’s quality product is available in a complete range of braided and multispiral hydraulic hoses - for low to ultra high pressure applications. Our hose range includes speciality products for high abrasion, tight bend radius and high temperature applications.

The other integral part of the guaranteed matched system is Hydraulink’s fittings range which are manufactured to SAE and ISO standards - using premium steel stock sourced from European steel mills. Our comprehensive range of fittings is industry leading with over 5,000 product lines.

To compliment our product range, we also offer an assortment of accessories including Adaptors, Quick Release Couplers, Tube Clamps, Ball Valves, Assembly Equipment and Premium Hydraulic Oils.

Product Catalogue

Product Catalogue

Hose Brochure

Hose Brochure

SWAGETAILS

MET LIGHT FEMALE STRAIGHT

SWAGETAILS

MET LIGHT FEMALE STRAIGHT

SS81

MET LIGHT FEMALE STRAIGHT

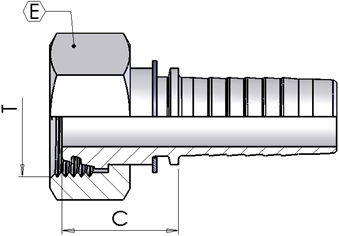

METRIC 24° CONE LIGHT FEMALE SWIVEL NUT STRAIGHT

  • ISO 12151-5

METRIC 24° CONE LIGHT FEMALE SWIVEL NUT STRAIGHT

PartNumber
Metric Female Thread (T)
Hose I.D (Inches)
Hose I.D (mm)
Dash size
Tube Size
Hex A/F (E)
Cutoff - C
SS81-M1604
M16-1.5
1/4
6.4
04
10
19
22
SS81-M1606
M16-1.5
3/8
9.5
06
10
19
24
SS81-M1806
M18-1.5
3/8
9.5
06
12
22
23
SS81-M2208
M22-1.5
1/2
12.7
08
15
27
29
SS81-M2610
M26-1.5
5/8
15.9
10
18
32
30.5
SS81-M3012
M30-2
3/4
19
12
22
46
32.5

Product Data

SS81-M1604

Metric Female Thread (T)

M16-1.5

Hose I.D (Inches)

1/4

Hose I.D (mm)

6.4

Dash size

04

Tube Size

10

Hex A/F (E)

19

Cutoff - C

22

SS81-M1606

Metric Female Thread (T)

M16-1.5

Hose I.D (Inches)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

10

Hex A/F (E)

19

Cutoff - C

24

SS81-M1806

Metric Female Thread (T)

M18-1.5

Hose I.D (Inches)

3/8

Hose I.D (mm)

9.5

Dash size

06

Tube Size

12

Hex A/F (E)

22

Cutoff - C

23

SS81-M2208

Metric Female Thread (T)

M22-1.5

Hose I.D (Inches)

1/2

Hose I.D (mm)

12.7

Dash size

08

Tube Size

15

Hex A/F (E)

27

Cutoff - C

29

SS81-M2610

Metric Female Thread (T)

M26-1.5

Hose I.D (Inches)

5/8

Hose I.D (mm)

15.9

Dash size

10

Tube Size

18

Hex A/F (E)

32

Cutoff - C

30.5

SS81-M3012

Metric Female Thread (T)

M30-2

Hose I.D (Inches)

3/4

Hose I.D (mm)

19

Dash size

12

Tube Size

22

Hex A/F (E)

46

Cutoff - C

32.5
