90 DEGREE ADAPTORS

Product catalogue Adaptors 90 DEGREE ADAPTORS JIC MALE X BSP ADJUSTABLE

JIC MALE X BSP ADJUSTABLE

90 DEGREE ADAPTORS

JIC MALE X BSP ADJUSTABLE

90 DEGREE ADAPTORS

JIC MALE X BSP ADJUSTABLE

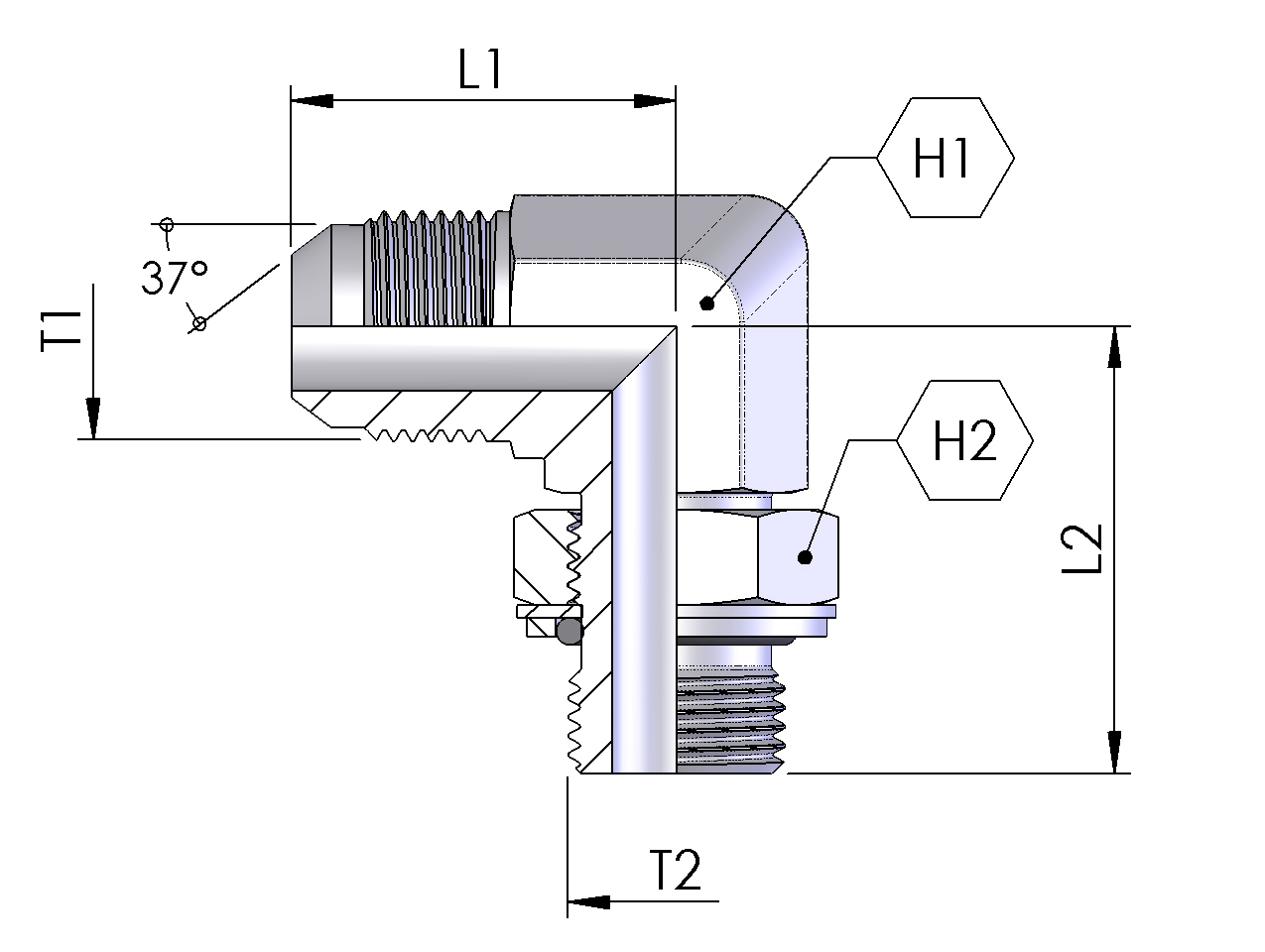

JIC 37° FLARE MALE X BSP ADJUSTABLE STUD 90° ELBOW

Download PDF
PartNumber
T1
T2
H1 (mm)
H2 (mm)
L1 (mm)
L2 (mm)
PN (bar)
G-BP-90-0702
7/16-20
1/8-28
14
14
24
27
200
G-BP-90-0704
7/16-20
1/4-19
14
19
27
32
200
G-BP-90-0706
7/16-20
3/8-19
19
22
29
37
200
G-BP-90-0708
7/16-20
1/2-14
22
27
31
43
200
G-BP-90-0902
9/16-18
1/8-28
14
19
27
32
200
G-BP-90-0904
9/16-18
1/4-19
14
19
27
32
200
G-BP-90-0906
9/16-18
3/8-19
19
22
29
37
200
G-BP-90-0908
9/16-18
1/2-14
22
27
31
43
200
G-BP-90-1204
3/4-16
1/4-19
19
22
27
32
200
G-BP-90-1206
3/4-16
3/8-19
19
22
32
37
200
G-BP-90-1208
3/4-16
1/2-14
22
27
34
43
200
G-BP-90-1212
3/4-16
3/4-14
27
36
36
49
200
G-BP-90-1406
7/8-14
3/8-19
22
22
37
38
200
G-BP-90-1408
7/8-14
1/2-14
22
27
37
43
200
G-BP-90-1412
7/8-14
3/4-14
27
36
39
50
200
G-BP-90-1708
1.1/16-12
1/2-14
27
27
41
47
200
G-BP-90-1712
1.1/16-12
3/4-14
27
36
41
50
200
G-BP-90-1716
1.1/6-12
1-11
35
41
46
52
200
G-BP-90-2112
1.5/16-12
3/4-14
33
36
46
50
200
G-BP-90-2116
1.5/6-12
1-11
35
41
47
52
200
G-BP-90-2120
1.5/16-12
1.1/4-11
41
50
53
58
160
G-BP-90-2124
1.5/16-12
1.1/2-11
52
62.1
47
54.8
160
G-BP-90-2616
1.5/8-12
1-11
41
41
53
58
170
G-BP-90-2620
1.5/8-12
1.1/4-11
41
50
53
58
160
G-BP-90-2624
1.5/8-12
1.1/2-11
51.4
61.1
47
54.8
160
G-BP-90-3020
1.7/8-12
1.1/4-11
48
50
63
63
140
G-BP-90-3024
1.7/8-12
1.1/2-11
48
55
59
60
140

Product Data

G-BP-90-0702

T1

7/16-20

T2

1/8-28

H1 (mm)

14

H2 (mm)

14

L1 (mm)

24

L2 (mm)

27

PN (bar)

200

G-BP-90-0704

T1

7/16-20

T2

1/4-19

H1 (mm)

14

H2 (mm)

19

L1 (mm)

27

L2 (mm)

32

PN (bar)

200

G-BP-90-0706

T1

7/16-20

T2

3/8-19

H1 (mm)

19

H2 (mm)

22

L1 (mm)

29

L2 (mm)

37

PN (bar)

200

G-BP-90-0708

T1

7/16-20

T2

1/2-14

H1 (mm)

22

H2 (mm)

27

L1 (mm)

31

L2 (mm)

43

PN (bar)

200

G-BP-90-0902

T1

9/16-18

T2

1/8-28

H1 (mm)

14

H2 (mm)

19

L1 (mm)

27

L2 (mm)

32

PN (bar)

200

G-BP-90-0904

T1

9/16-18

T2

1/4-19

H1 (mm)

14

H2 (mm)

19

L1 (mm)

27

L2 (mm)

32

PN (bar)

200

G-BP-90-0906

T1

9/16-18

T2

3/8-19

H1 (mm)

19

H2 (mm)

22

L1 (mm)

29

L2 (mm)

37

PN (bar)

200

G-BP-90-0908

T1

9/16-18

T2

1/2-14

H1 (mm)

22

H2 (mm)

27

L1 (mm)

31

L2 (mm)

43

PN (bar)

200

G-BP-90-1204

T1

3/4-16

T2

1/4-19

H1 (mm)

19

H2 (mm)

22

L1 (mm)

27

L2 (mm)

32

PN (bar)

200

G-BP-90-1206

T1

3/4-16

T2

3/8-19

H1 (mm)

19

H2 (mm)

22

L1 (mm)

32

L2 (mm)

37

PN (bar)

200

G-BP-90-1208

T1

3/4-16

T2

1/2-14

H1 (mm)

22

H2 (mm)

27

L1 (mm)

34

L2 (mm)

43

PN (bar)

200

G-BP-90-1212

T1

3/4-16

T2

3/4-14

H1 (mm)

27

H2 (mm)

36

L1 (mm)

36

L2 (mm)

49

PN (bar)

200

G-BP-90-1406

T1

7/8-14

T2

3/8-19

H1 (mm)

22

H2 (mm)

22

L1 (mm)

37

L2 (mm)

38

PN (bar)

200

G-BP-90-1408

T1

7/8-14

T2

1/2-14

H1 (mm)

22

H2 (mm)

27

L1 (mm)

37

L2 (mm)

43

PN (bar)

200

G-BP-90-1412

T1

7/8-14

T2

3/4-14

H1 (mm)

27

H2 (mm)

36

L1 (mm)

39

L2 (mm)

50

PN (bar)

200

G-BP-90-1708

T1

1.1/16-12

T2

1/2-14

H1 (mm)

27

H2 (mm)

27

L1 (mm)

41

L2 (mm)

47

PN (bar)

200

G-BP-90-1712

T1

1.1/16-12

T2

3/4-14

H1 (mm)

27

H2 (mm)

36

L1 (mm)

41

L2 (mm)

50

PN (bar)

200

G-BP-90-1716

T1

1.1/6-12

T2

1-11

H1 (mm)

35

H2 (mm)

41

L1 (mm)

46

L2 (mm)

52

PN (bar)

200

G-BP-90-2112

T1

1.5/16-12

T2

3/4-14

H1 (mm)

33

H2 (mm)

36

L1 (mm)

46

L2 (mm)

50

PN (bar)

200

G-BP-90-2116

T1

1.5/6-12

T2

1-11

H1 (mm)

35

H2 (mm)

41

L1 (mm)

47

L2 (mm)

52

PN (bar)

200

G-BP-90-2120

T1

1.5/16-12

T2

1.1/4-11

H1 (mm)

41

H2 (mm)

50

L1 (mm)

53

L2 (mm)

58

PN (bar)

160

G-BP-90-2124

T1

1.5/16-12

T2

1.1/2-11

H1 (mm)

52

H2 (mm)

62.1

L1 (mm)

47

L2 (mm)

54.8

PN (bar)

160

G-BP-90-2616

T1

1.5/8-12

T2

1-11

H1 (mm)

41

H2 (mm)

41

L1 (mm)

53

L2 (mm)

58

PN (bar)

170

G-BP-90-2620

T1

1.5/8-12

T2

1.1/4-11

H1 (mm)

41

H2 (mm)

50

L1 (mm)

53

L2 (mm)

58

PN (bar)

160

G-BP-90-2624

T1

1.5/8-12

T2

1.1/2-11

H1 (mm)

51.4

H2 (mm)

61.1

L1 (mm)

47

L2 (mm)

54.8

PN (bar)

160

G-BP-90-3020

T1

1.7/8-12

T2

1.1/4-11

H1 (mm)

48

H2 (mm)

50

L1 (mm)

63

L2 (mm)

63

PN (bar)

140

G-BP-90-3024

T1

1.7/8-12

T2

1.1/2-11

H1 (mm)

48

H2 (mm)

55

L1 (mm)

59

L2 (mm)

60

PN (bar)

140
