SAE FLANGES CODE 61

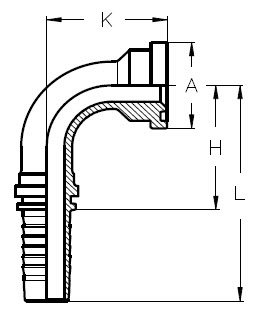

SAE CODE 61 90° ELBOW
SAE FLANGES CODE 61
SAE CODE 61 90° ELBOW
Product Data
S59-0808
Nominal SAE Flange size - A
1/2
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Flange O.D - A (mm)
30.2
Drop - K (mm)
40
Cutoff - H (mm)
38
Length - L (mm)
71
Working Pressure (bar)
350
Working Pressure (psi)
5000
S59-1208
Nominal SAE Flange size - A
3/4
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Flange O.D - A (mm)
38.1
Drop - K (mm)
45
Cutoff - H (mm)
38
Length - L (mm)
71
Working Pressure (bar)
350
Working Pressure (psi)
5000
S59-1212
Nominal SAE Flange size - A
3/4
Hose I.D (in)
3/4
Hose I.D (mm)
19
Dash size
12
Flange O.D - A (mm)
38.1
Drop - K (mm)
51
Cutoff - H (mm)
55
Length - L (mm)
95
Working Pressure (bar)
350
Working Pressure (psi)
5000
S59-1612
Nominal SAE Flange size - A
1
Hose I.D (in)
3/4
Hose I.D (mm)
19
Dash size
12
Flange O.D - A (mm)
44.5
Drop - K (mm)
54
Cutoff - H (mm)
55
Length - L (mm)
95
Working Pressure (bar)
280
Working Pressure (psi)
4000
S59-1616
Nominal SAE Flange size - A
1
Hose I.D (in)
1
Hose I.D (mm)
25.4
Dash size
16
Flange O.D - A (mm)
44.5
Drop - K (mm)
61
Cutoff - H (mm)
71
Length - L (mm)
128
Working Pressure (bar)
350
Working Pressure (psi)
5000
S59-2016
Nominal SAE Flange size - A
1 1/4
Hose I.D (in)
1
Hose I.D (mm)
25.4
Dash size
16
Flange O.D - A (mm)
50.8
Drop - K (mm)
61
Cutoff - H (mm)
71
Length - L (mm)
128
Working Pressure (bar)
280
Working Pressure (psi)
4000
S59-2020
Nominal SAE Flange size - A
1 1/4
Hose I.D (in)
1 1/4
Hose I.D (mm)
31.8
Dash size
20
Flange O.D - A (mm)
50.8
Drop - K (mm)
71
Cutoff - H (mm)
87
Length - L (mm)
154
Working Pressure (bar)
280
Working Pressure (psi)
4000
S59-2420
Nominal SAE Flange size - A
1 1/2
Hose I.D (in)
1 1/4
Hose I.D (mm)
31.8
Dash size
20
Flange O.D - A (mm)
60.4
Drop - K (mm)
71
Cutoff - H (mm)
87
Length - L (mm)
154
Working Pressure (bar)
210
Working Pressure (psi)
3000
S59-2424
Nominal SAE Flange size - A
1 1/2
Hose I.D (in)
1 1/2
Hose I.D (mm)
38
Dash size
24
Flange O.D - A (mm)
60.4
Drop - K (mm)
83
Cutoff - H (mm)
105
Length - L (mm)
188
Working Pressure (bar)
210
Working Pressure (psi)
3000
S59-3224
Nominal SAE Flange size - A
2
Hose I.D (in)
1 1/2
Hose I.D (mm)
38
Dash size
24
Flange O.D - A (mm)
71.4
Drop - K (mm)
81
Cutoff - H (mm)
105
Length - L (mm)
188
Working Pressure (bar)
210
Working Pressure (psi)
3000
S59-3232
Nominal SAE Flange size - A
2
Hose I.D (in)
2
Hose I.D (mm)
51
Dash size
32
Flange O.D - A (mm)
71.4
Drop - K (mm)
122
Cutoff - H (mm)
140
Length - L (mm)
237
Working Pressure (bar)
210
Working Pressure (psi)
3000
