SAE FLANGES CODE 61

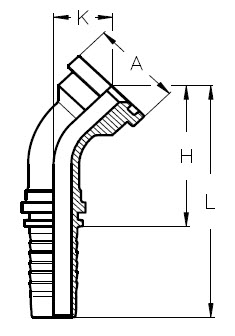

SAE CODE 61 45° ELBOW
Product Data
S68-0808
Nominal SAE Flange size - A
1/2
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Flange O.D - A (mm)
30.2
Drop - K (mm)
20
Cutoff - H (mm)
47
Length - L (mm)
80
Working Pressure (bar)
350
Working Pressure (psi)
5000
S68-1208
Nominal SAE Flange size - A
3/4
Hose I.D (in)
1/2
Hose I.D (mm)
12.7
Dash size
08
Flange O.D - A (mm)
38.1
Drop - K (mm)
24
Cutoff - H (mm)
51
Length - L (mm)
84
Working Pressure (bar)
350
Working Pressure (psi)
5000
S68-1212
Nominal SAE Flange size - A
3/4
Hose I.D (in)
3/4
Hose I.D (mm)
19
Dash size
12
Flange O.D - A (mm)
38.1
Drop - K (mm)
25
Cutoff - H (mm)
62
Length - L (mm)
102
Working Pressure (bar)
350
Working Pressure (psi)
5000
S68-1612
Nominal SAE Flange size - A
1
Hose I.D (in)
3/4
Hose I.D (mm)
19
Dash size
12
Flange O.D - A (mm)
44.5
Drop - K (mm)
27
Cutoff - H (mm)
64
Length - L (mm)
104
Working Pressure (bar)
350
Working Pressure (psi)
5000
S68-1616
Nominal SAE Flange size - A
1
Hose I.D (in)
1
Hose I.D (mm)
25.4
Dash size
16
Flange O.D - A (mm)
44.5
Drop - K (mm)
28
Cutoff - H (mm)
78
Length - L (mm)
134
Working Pressure (bar)
350
Working Pressure (psi)
5000
S68-2016
Nominal SAE Flange size - A
1 1/4
Hose I.D (in)
1
Hose I.D (mm)
25.4
Dash size
16
Flange O.D - A (mm)
50.8
Drop - K (mm)
28
Cutoff - H (mm)
78
Length - L (mm)
134
Working Pressure (bar)
280
Working Pressure (psi)
4000
S68-2020
Nominal SAE Flange size - A
1 1/4
Hose I.D (in)
1 1/4
Hose I.D (mm)
31.8
Dash size
20
Flange O.D - A (mm)
50.8
Drop - K (mm)
32
Cutoff - H (mm)
91
Length - L (mm)
157
Working Pressure (bar)
280
Working Pressure (psi)
4000
S68-2420
Nominal SAE Flange size - A
1 1/2
Hose I.D (in)
1 1/4
Hose I.D (mm)
31.8
Dash size
20
Flange O.D - A (mm)
60.4
Drop - K (mm)
32
Cutoff - H (mm)
91
Length - L (mm)
157
Working Pressure (bar)
210
Working Pressure (psi)
3000
S68-2424
Nominal SAE Flange size - A
1 1/2
Hose I.D (in)
1 1/2
Hose I.D (mm)
38
Dash size
24
Flange O.D - A (mm)
60.4
Drop - K (mm)
36
Cutoff - H (mm)
108
Length - L (mm)
191
Working Pressure (bar)
210
Working Pressure (psi)
3000
S68-3224
Nominal SAE Flange size - A
2
Hose I.D (in)
1 1/2
Hose I.D (mm)
38
Dash size
24
Flange O.D - A (mm)
71.4
Drop - K (mm)
35
Cutoff - H (mm)
107
Length - L (mm)
189
Working Pressure (bar)
210
Working Pressure (psi)
3000
S68-3232
Nominal SAE Flange size - A
2
Hose I.D (in)
2
Hose I.D (mm)
51
Dash size
32
Flange O.D - A (mm)
71.4
Drop - K (mm)
57
Cutoff - H (mm)
151
Length - L (mm)
245
Working Pressure (bar)
210
Working Pressure (psi)
3000
