SUPERCAT FLANGE

SUPERCAT 67.5° ELBOW

SUPERCAT FLANGE

SUPERCAT 67.5° ELBOW

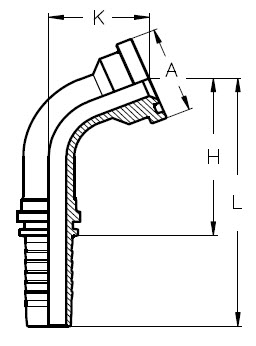

S695

SUPERCAT 67.5° ELBOW

PartNumber
Nominal SAE Flange size - A
Hose I.D (in)
Hose I.D (mm)
Dash size
Flange O.D - A (mm)
Drop - K (mm)
Cutoff - H (mm)
Length - L (mm)
Working Pressure (bar)
Working Pressure (psi)
S695-1212
3/4
3/4
19
12
41.3
50
74
115
420
6000
S695-1612
1
3/4
19
12
47.6
53
74
115
420
6000
S695-1616
1
1
25.4
16
47.6
56
97
153
420
6000
S695-2016
1 1/4
1
25.4
16
54
56
97
153
420
6000
S695-2020
1 1/4
1 1/4
31.8
20
54
57
114
181
420
6000
S695-2420
1 1/2
1 1/4
31.8
20
63.5
58
114
181
420
6000

Product Data

S695-1212

Nominal SAE Flange size - A

3/4

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D - A (mm)

41.3

Drop - K (mm)

50

Cutoff - H (mm)

74

Length - L (mm)

115

Working Pressure (bar)

420

Working Pressure (psi)

6000

S695-1612

Nominal SAE Flange size - A

1

Hose I.D (in)

3/4

Hose I.D (mm)

19

Dash size

12

Flange O.D - A (mm)

47.6

Drop - K (mm)

53

Cutoff - H (mm)

74

Length - L (mm)

115

Working Pressure (bar)

420

Working Pressure (psi)

6000

S695-1616

Nominal SAE Flange size - A

1

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Flange O.D - A (mm)

47.6

Drop - K (mm)

56

Cutoff - H (mm)

97

Length - L (mm)

153

Working Pressure (bar)

420

Working Pressure (psi)

6000

S695-2016

Nominal SAE Flange size - A

1 1/4

Hose I.D (in)

1

Hose I.D (mm)

25.4

Dash size

16

Flange O.D - A (mm)

54

Drop - K (mm)

56

Cutoff - H (mm)

97

Length - L (mm)

153

Working Pressure (bar)

420

Working Pressure (psi)

6000

S695-2020

Nominal SAE Flange size - A

1 1/4

Hose I.D (in)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Flange O.D - A (mm)

54

Drop - K (mm)

57

Cutoff - H (mm)

114

Length - L (mm)

181

Working Pressure (bar)

420

Working Pressure (psi)

6000

S695-2420

Nominal SAE Flange size - A

1 1/2

Hose I.D (in)

1 1/4

Hose I.D (mm)

31.8

Dash size

20

Flange O.D - A (mm)

63.5

Drop - K (mm)

58

Cutoff - H (mm)

114

Length - L (mm)

181

Working Pressure (bar)

420

Working Pressure (psi)

6000
